NEW from Schukat - Innovative TFT Touch Displays for industrial applications

Our new display series sets standards in terms of quality and flexibility combined with a very attractive price-performance ratio. Its features enable it to be used in numerous sectors and demanding industrial environments:

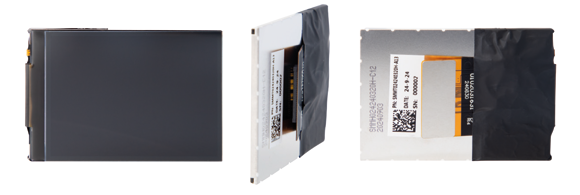

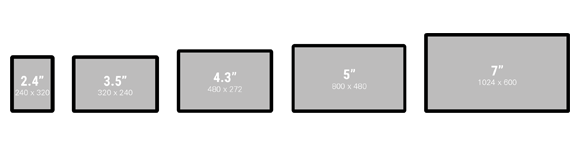

• Available sizes: 2,4” to 7” with resolutions from 320 x 240 px to 1024 x 600 px
• Suitable for sunlight: 1000 cd/m² (PWM dimmable)
• High-quality display: IPS panel (up to 178° viewing angle)
• Industrial quality: Extended operating temperature range from -30 to +80 °C
• Flexible options: With or without capacitive touch panel (CTP)
• Easy installation: Adhesive frame with protection classes up to IP66/67 possible (touch displays)
• Interface: 24-bit RGB
• Standardised connector system: Hirose connector with the same pin assignment for all variants (no ZIF connector)
• Power supply: Requires only a 3.3 V power supply
• Simple integration: With matching display controller board
• Customisation: Options available on request (including optional labelling, surface finishing, special protective glass, hardware and software) and possible from a requirement of approx. 500 units

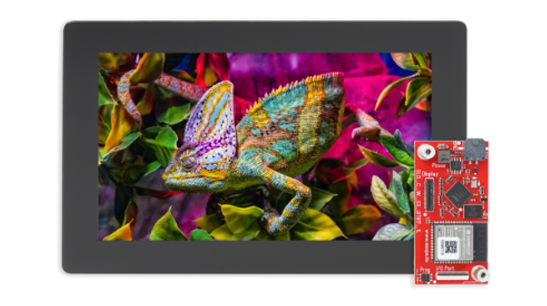

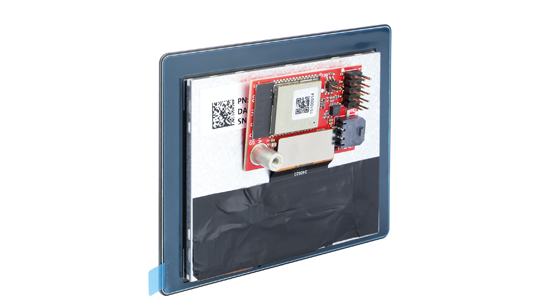

The matching display controller board in combination with the latest Espressif microcontrollers (P4 or S3), supports smart functions such as WiFi, Bluetooth or flexible information processing and offers interfaces to the ‘outside world’ (including CAN, UART and I2C) via adapter boards.

The new TFT Touch Displays series was designed with the intention of offering outstanding quality and performance at an attractive price. We offer customised solutions for orders of 500 units or more. As part of our design-in and FAE support, our consulting services help customers to find the right solution for every application.

The displays are particularly suitable for use for measurement technology, industry & automation, smart home / building technology, medical technology, eMobility and home appliances.

Do not hesitate to contact us!

Germany + Austria:  +49 - 2173 - 950-710
International:  +49 - 2173 - 950-750

vertrieb@schukat.com

TFT Touch Displays

With touch & front glass

• 2.4"  240x320  SMMH024240320H-C12
• 3.5"  320x240  SMMH035320240K-C09
• 4.3"  480x272  SMMH043480272G-C28
• 5.0"  800x480  SMMH050800480H-C22
• 7.0"  1024x600  SMMH0701024600SC20


Without touch & front glass

• 2.4"  240x320  SMMT024240320H-A13
• 3.5"  320x240  SMMT035320240K-A10
• 4.3"  480x272  SMMT043480272G-A29
• 5.0"  800x480  SMMT050800480H-A23
• 7.0"  1024x600  SMMT0701024600SA21

Matching products:

• Display-Controller-Board: SLD_C_W_S3_1A
• Espressif Microcontroller ESP32-S3 and ESP32-P4
• Hirose Plug: DF23C-50DP-0.5V
