DF23C-50DP-0.5V(92)

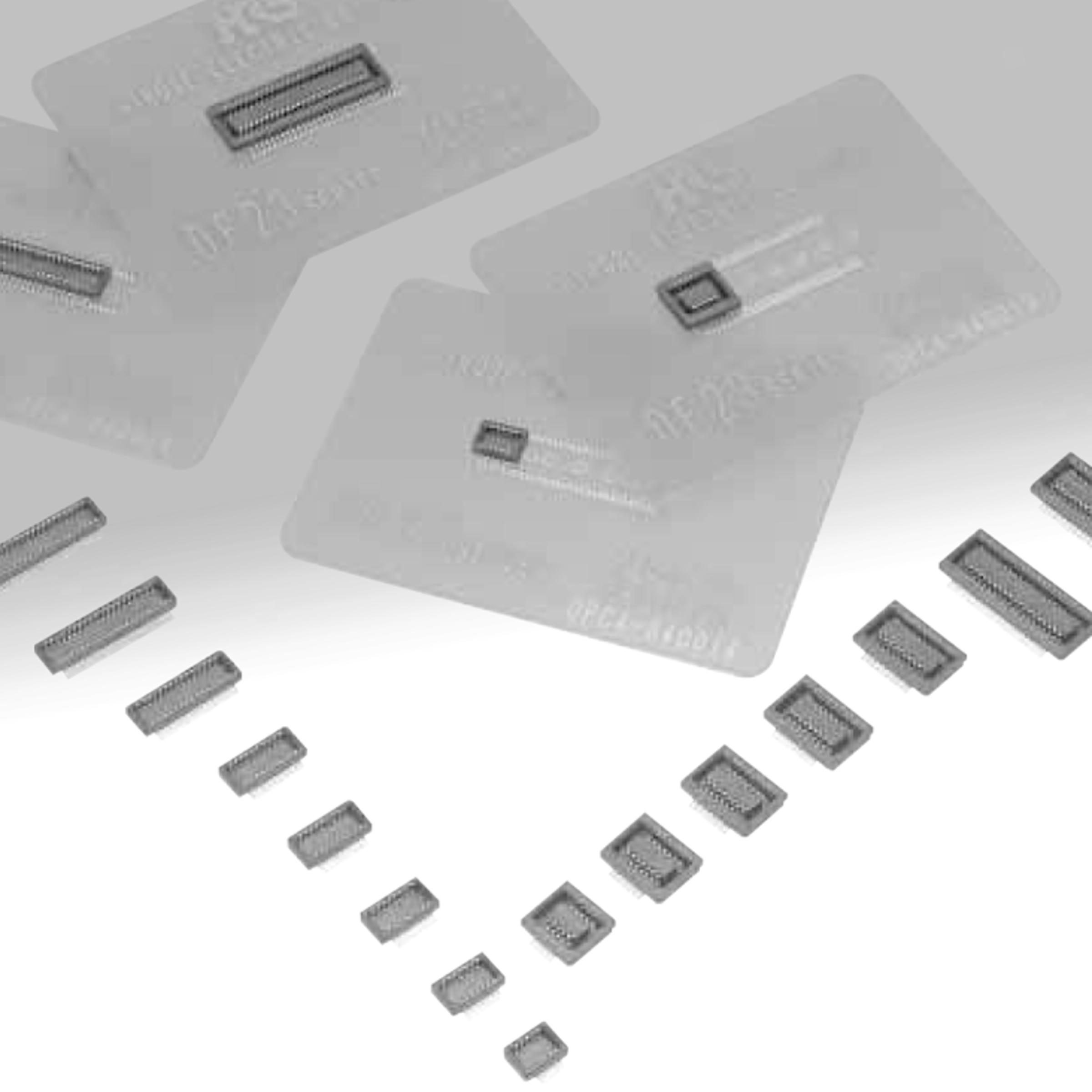

HIROSE ELECTRIC ZIFF/FFC/FPC plug DF23 50 Pole Pitch0,5mm vergoldet black

NEW
Manufacturer Part No.
DF23C-50DP-0.5V(92)
Schukat Part No.
DF23C-50DP-0.5V-92
Manufacturer
HIROSE ELECTRIC
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

2.000 Pcs. in stock

Planned delivery time
Ø 26 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 200 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Series
DF23
Type
ZIFF/FFC/FPC plug
Housing
2-row
Colour
black
Number of poles
50
Dimension: Length
14 mm
Rated current
0.3 A
Rated voltage AC
50 V AC
Dimension: Width
3.1 mm
Pitch
0.5 mm
Dimension: Height
1.2 mm
Operating Temperature Min.
-35 °C
Operating Temperature Max.
85 °C
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • HIROSE ELECTRIC
Type
  • ZIFF/FFC/FPC plug
Series
  • DF23
Product group
  • F1910
Housing
  • 2-row
Contact Type
  • Plug
Connector Contact
  • Solder
Number of poles
  • 50
Alignment
  • straight
Type ( axial, radial )
  • PCB
Protective conductor
Colour
  • black
Locking
  • no

Dimensions and Weights

Dimension: Length
  • 14 mm
Dimension: Width
  • 3.1 mm
Dimension: Height
  • 1.2 mm
Width (incl. pins)
  • 4.3 mm
Pitch
  • 0.5 mm

Operating conditions

Operating Temperature Min.
  • -35 °C
Operating Temperature Max.
  • 85 °C

Technical Features

Rated current
  • 0.3 A
Rated voltage AC
  • 50 V AC
Test voltage
  • 150 V AC
Insulation resistance
  • 500 MOhm
Contact resistance
  • 60 mOhm

Mechanical Features

Insulating body
  • LCP
Contact Surface Input
  • vergoldet

Safety/Certifications

Class of Inflammability
  • UL 94 V-0

Documents

DF23C-50DP-0.5V(92)_CL0688-0804-6-92_2DDrawing_0000931633.pdf
Download (pdf, 281 KB)
