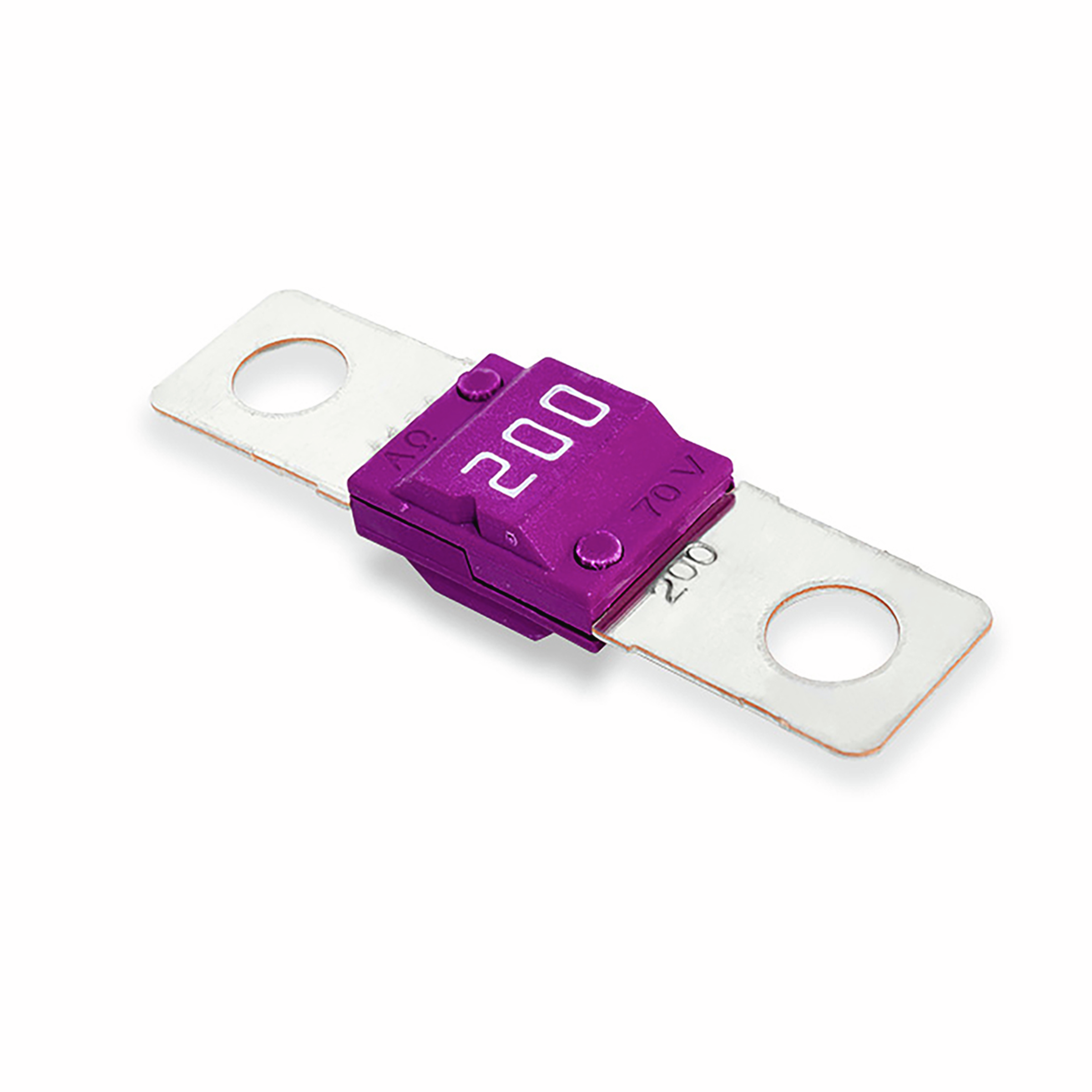

MTX200
iMaXX Automotive fuse MTX mitoxOTO 70VDC 200A violet
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
90 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable fuse holders for vehicles. - Type
- Automotive fuse
- Series
- MTX
- Labeling or description
- mitoxOTO
- Design
- Screw lock
- Colour
- violet
- Rated current
- 200 A
- Rated voltage V DC
- 70 V DC
- Switching capacity
- 2.500 A
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 48 mm
- Dimension: Width
- 12.7 mm
- Dimension: Height
- 8.2 mm
- Pitch
- 36 mm
- nounting holes
- M6
Operating conditions
- mounting screw torque
- 6 nm
Technical Features
- Rated current
- 200 A
- Switching capacity
- 2.500 A
- Rated voltage V DC
- 70 V DC
