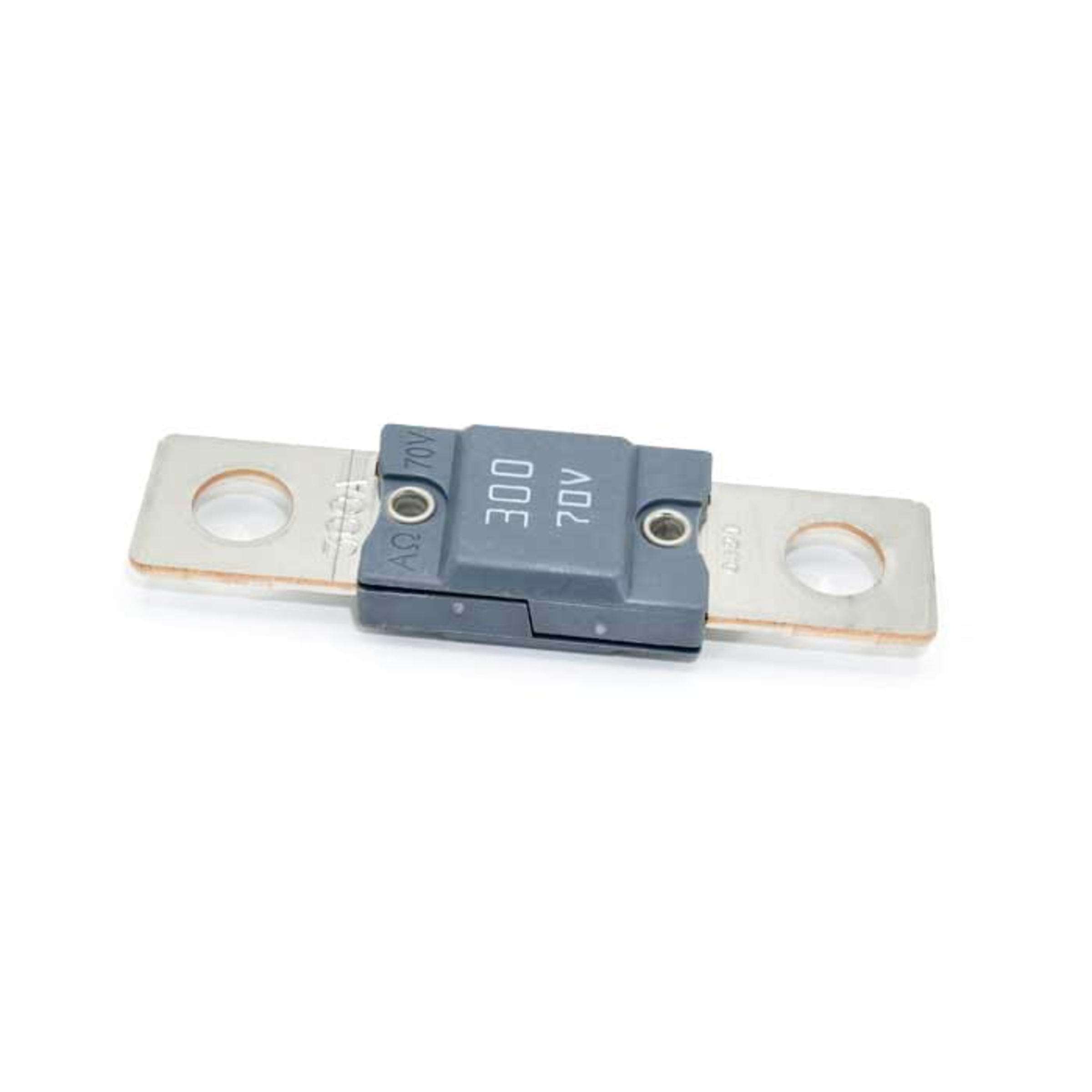

MGHV300
iMaXX Automotive fuse MGHV 70VDC 300A gray
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
220 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 200 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Automotive fuse
- Series
- MGHV
- Labeling or description
- megaOTO
- Type ( axial, radial )
- Automotive screw lock
- Colour
- gray
- Rated current
- 300 A
- Switching capacity
- 2.500 A
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 68 mm
- Dimension: Width
- 19 mm
- Dimension: Height
- 10.5 mm
- nounting holes
- M8
Operating conditions
- mounting screw torque
- 12 Nm
Technical features
- Rated current
- 300 A
- Switching capacity
- 2.500 A
- Rated voltage V DC
- 70 V DC
Safety/Certifications
- Standards
- ISO 20934
