H1400

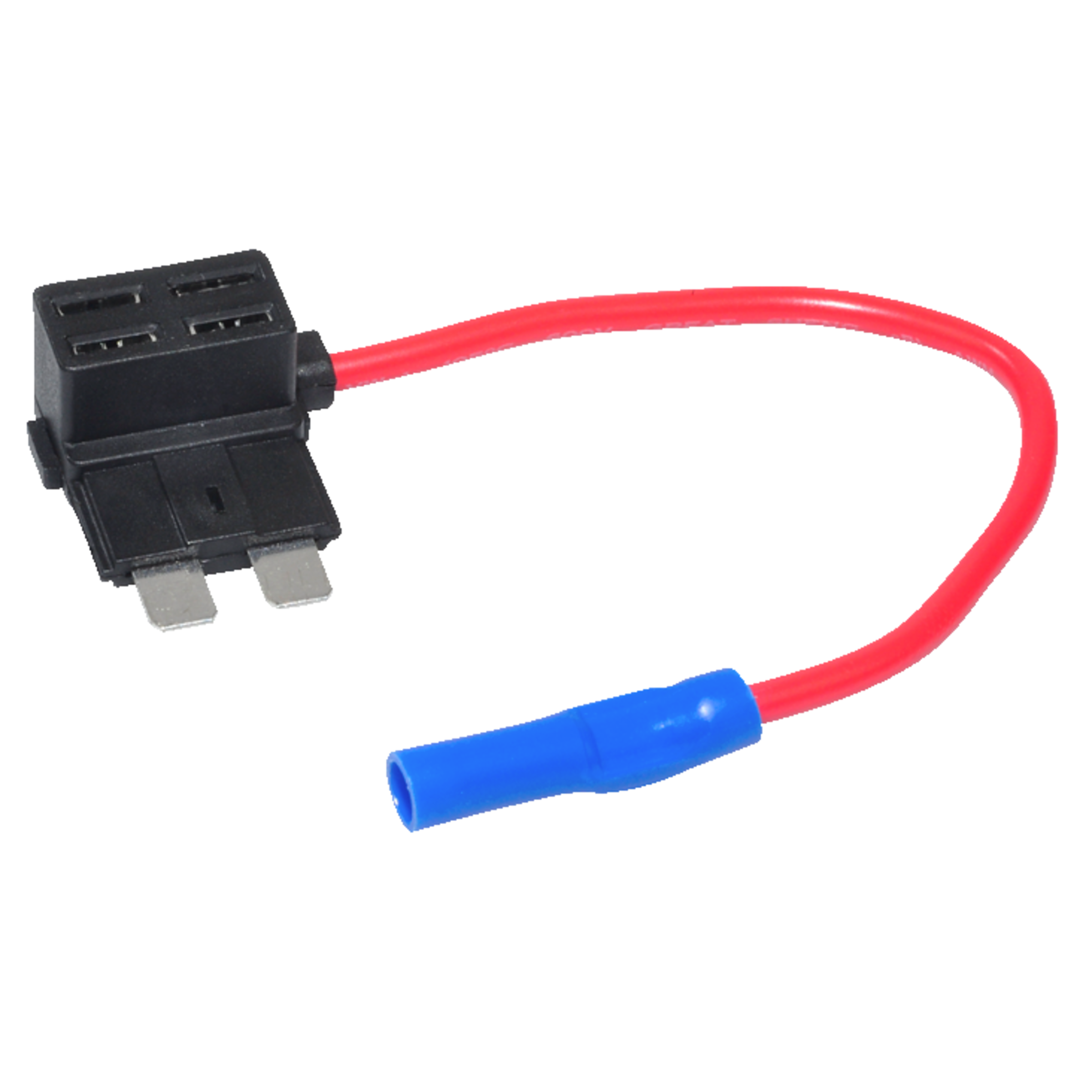

iMaXX Automotive fuse holder 32VDC

Image similar
Manufacturer Part No.
H1400
Schukat Part No.
H1400
Manufacturer
iMaXX
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Back Order
1 Pcs.
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Housing
open
Rated voltage V DC
32 V DC
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • iMaXX
Series
  • H1400
Type
  • Automotive fuse holder
Product group
  • E1854 Fuseholder for Blade Fuses normOTO
Assembly
  • cable assembly
Housing
  • open
Fastening
  • Push-in connector
Contact material
  • Copper Zinc Alloy Tin Plated
Colour
  • black

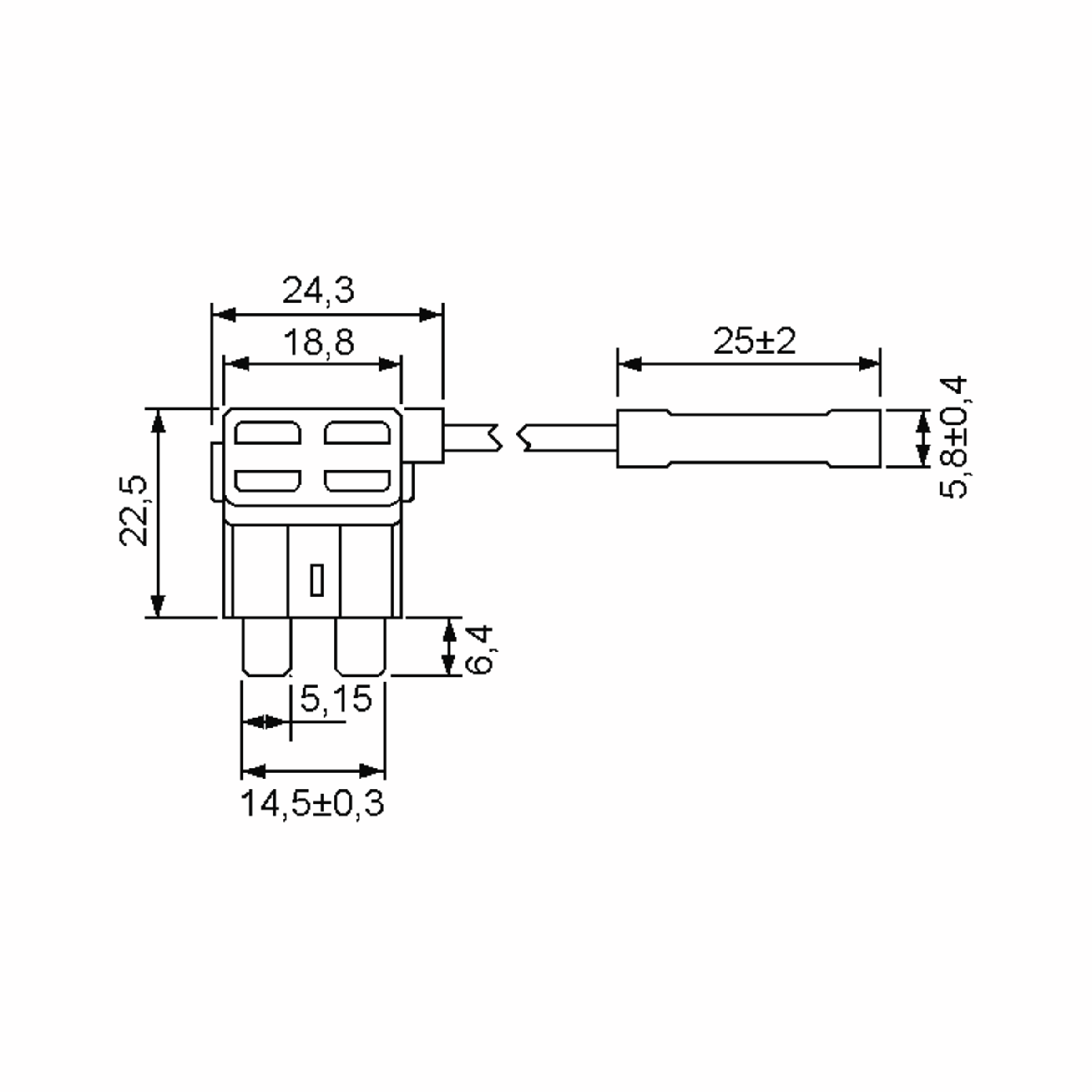

Dimensions and weights

Dimension: Length
  • 24.3 mm
Dimension: Width
  • 22.5 mm
Dimension: Height
  • 14.3 mm

Technical features

Rated current
  • 10 A
Rated voltage V DC
  • 32 V DC
