F9050

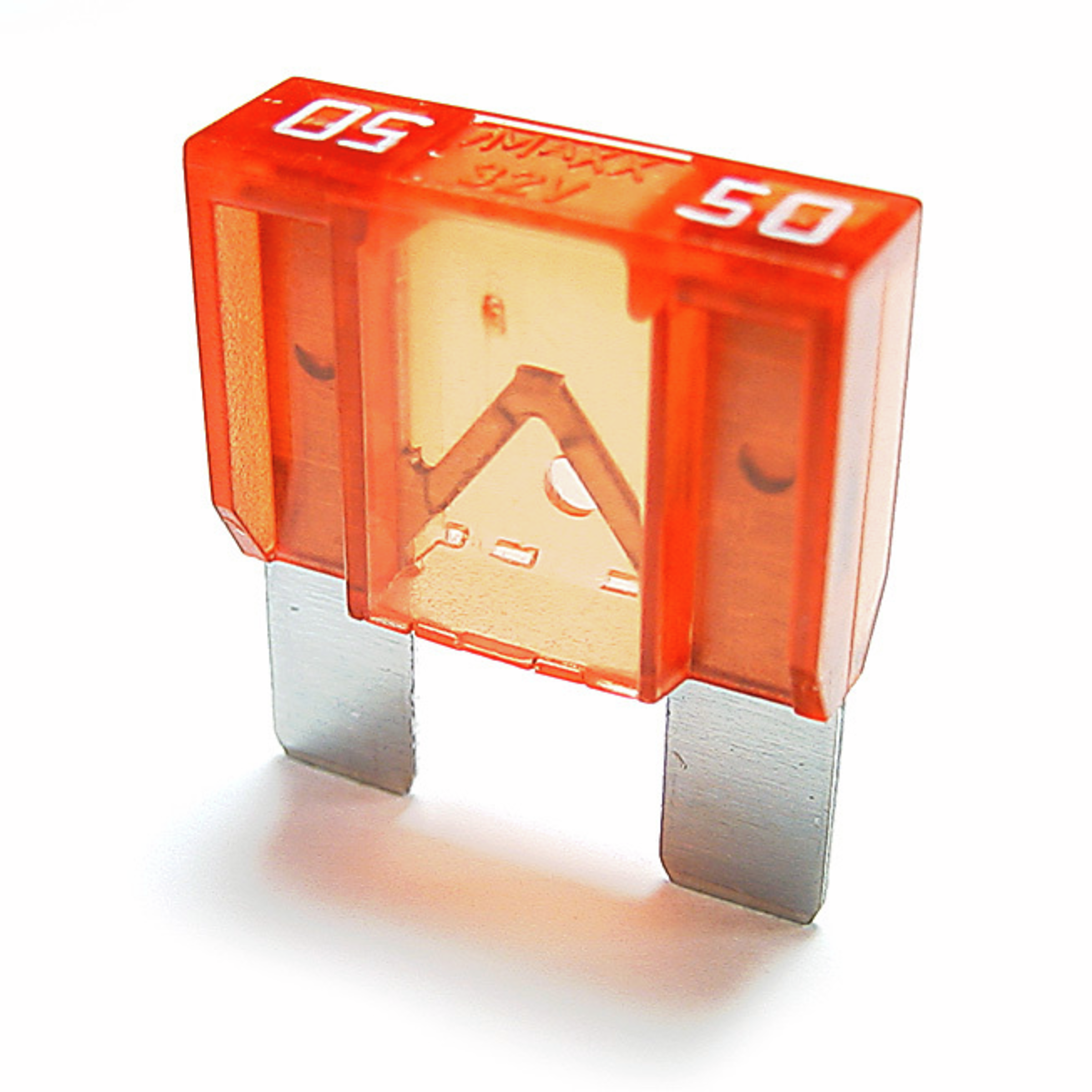

iMaXX Automotive fuse F9000 32VDC 50A red
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
570 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 800 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Automotive fuse
- Series
- F9000
- Labeling or description
- maxiOTO
- Type ( axial, radial )
- Automotive blade fuse
- Colour
- red
- Rated current
- 50 A
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 29.5 mm
- Dimension: Width
- 9 mm
- Dimension: Height
- 34.1 mm
Technical features
- Rated current
- 50 A
- Rated voltage V DC
- 32 V DC
Safety/Certifications
- Standards
- DIN ISO 8820-3, SAE J1888
