F9025

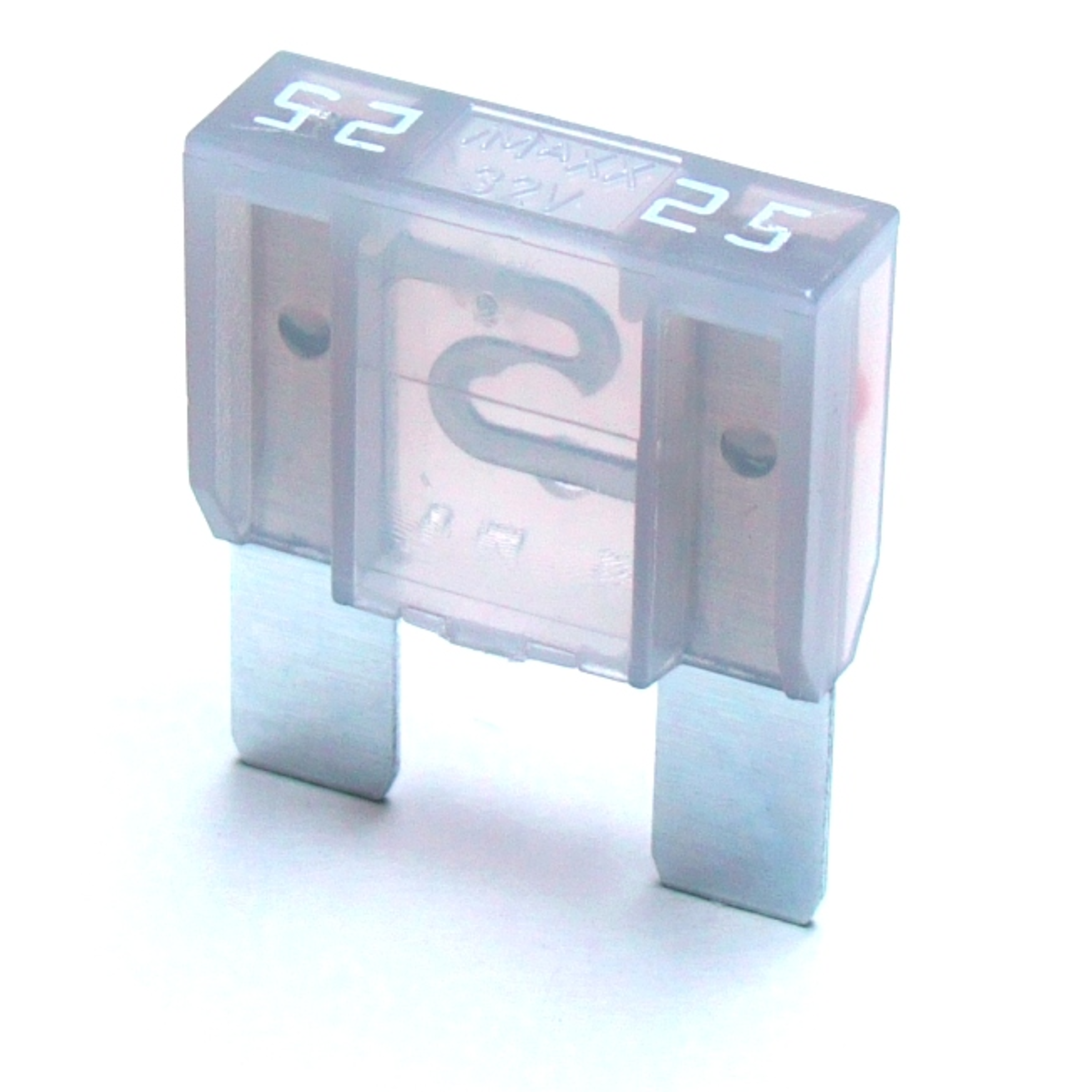

iMaXX Automotive fuse F9000 32VDC 25A gray

Image similar
Manufacturer Part No.
F9025
Schukat Part No.
F9025
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 800 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Automotive fuse
Series
F9000
Labeling or description
maxiOTO
Type ( axial, radial )
Automotive blade fuse
Colour
gray
Rated current
25 A
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • iMaXX
Series
  • F9000
Type
  • Automotive fuse
Product group
  • E1711 iMaXX bladefuses F9000 maxiOTO
Labeling or description
  • maxiOTO
Type ( axial, radial )
  • Automotive blade fuse
Applications
  • Automotive industry
Labelling
  • Test point and current value indication on top of the housing
Colour
  • gray
Termination Style
  • Plug connection
Features
  • • Self-extinguishing, transparent, color-coded housing made of temperature-resistant plastic

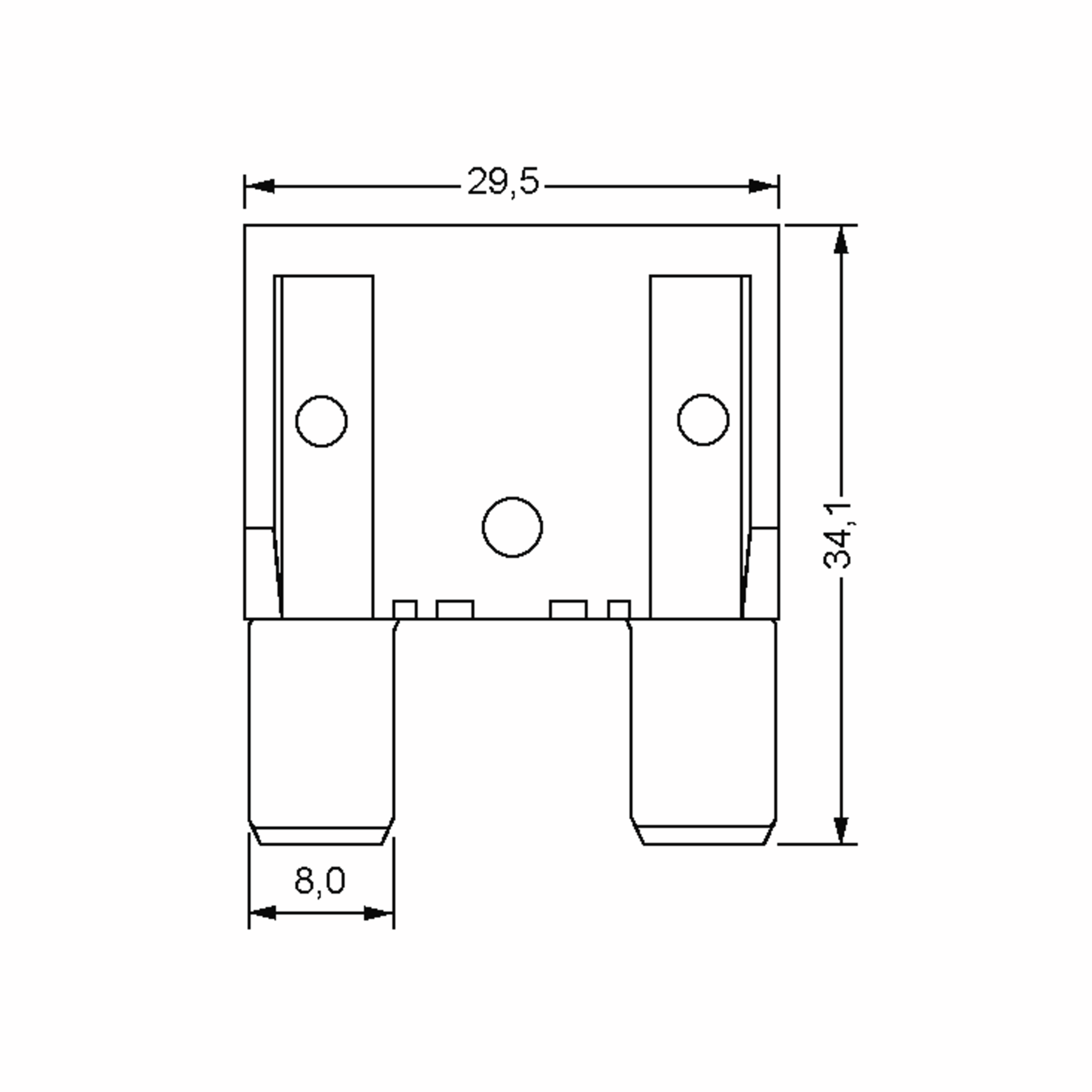

Dimensions and weights

Dimension: Length
  • 29.5 mm
Dimension: Width
  • 9 mm
Dimension: Height
  • 34.1 mm

Technical features

Rated current
  • 25 A
Rated voltage V DC
  • 32 V DC

Safety/Certifications

Standards
  • DIN ISO 8820-3, SAE J1888
