F7975

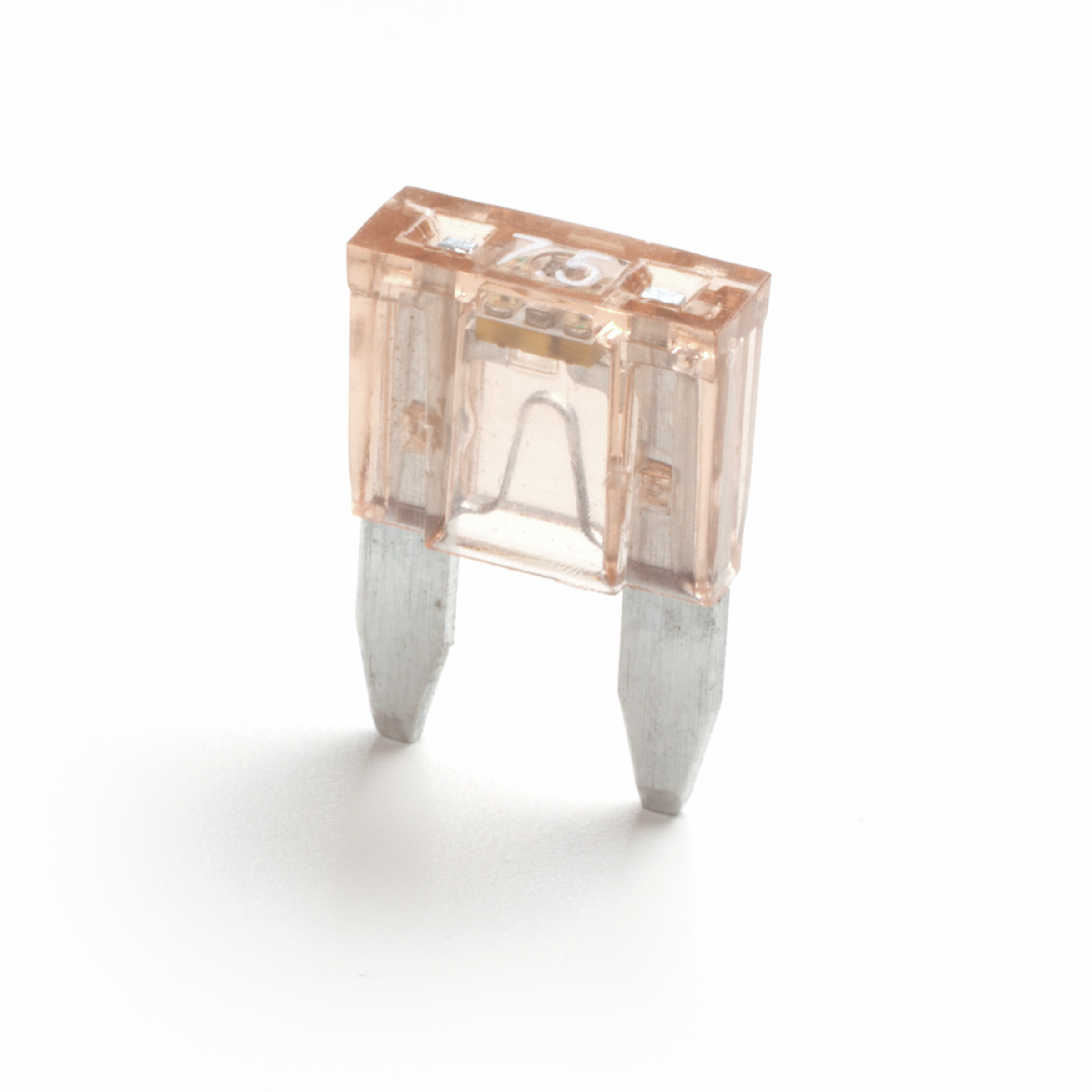

iMaXX Automotive fuse F7900 32VDC 7,5A brown
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
150 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable fuse holders. - Type
- Automotive fuse
- Series
- F7900
- Labeling or description
- miniOTO ShoBlo
- Design
- Flat plug fuse
- Colour
- brown
- Rated current
- 7.5 A
- Rated voltage V DC
- 32 V DC
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 11.2 mm
- Dimension: Width
- 4 mm
- Dimension: Height
- 17 mm
Technical Features
- Rated current
- 7.5 A
- Rated voltage V DC
- 32 V DC
Safety/Certifications
- Standards
- SAE J2077
Documents
PCN_F7900 series 2025-12_EN.pdf
