F7003

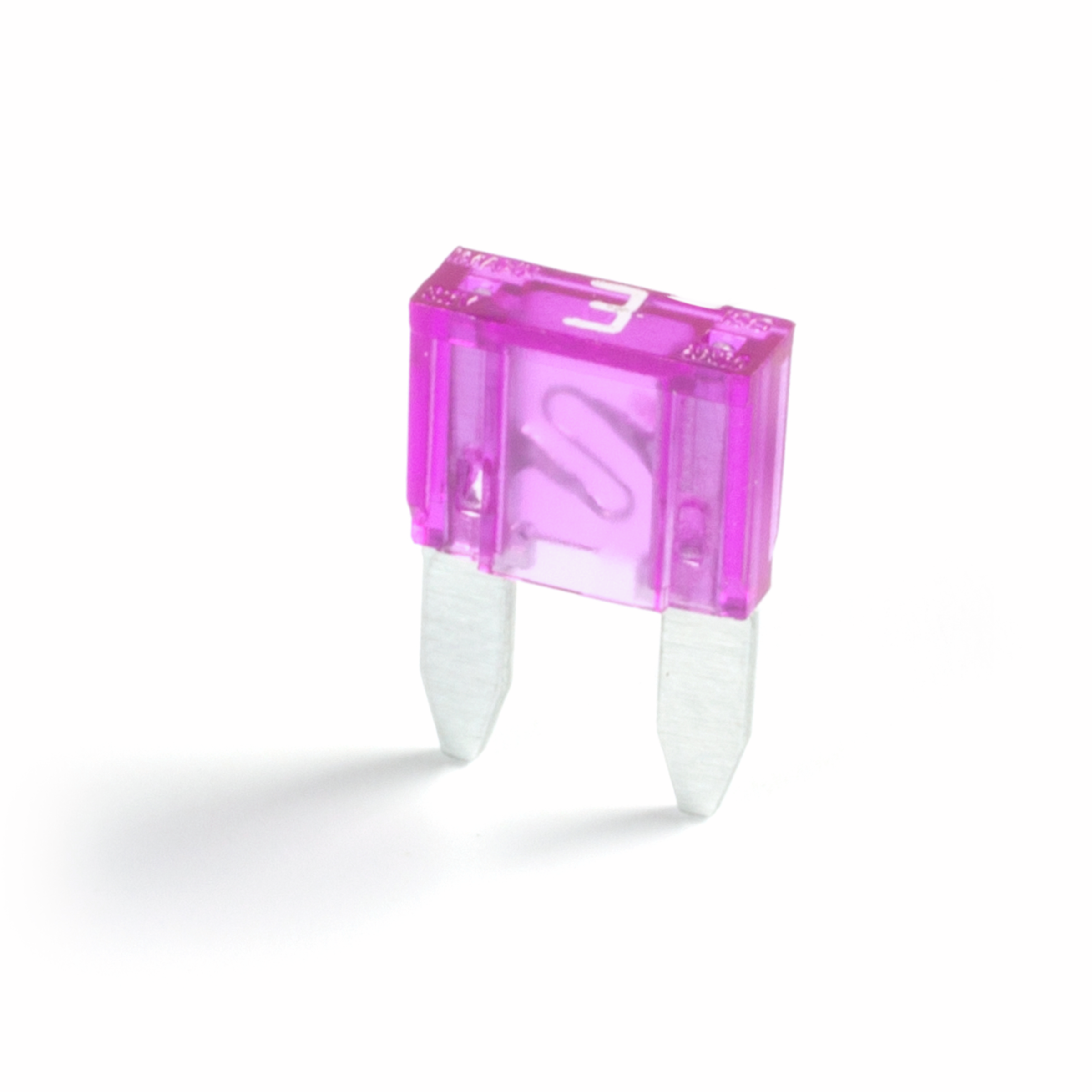

iMaXX Automotive fuse F7000 32VDC 3A violet
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
50 Pcs.
50 Pcs.
Next Stock Receipt
Week 49/2024
6.250 Pcs.
6.250 Pcs.
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Automotive fuse
- Series
- F7000
- Labeling or description
- miniOTO
- Type ( axial, radial )
- Automotive blade fuse
- Colour
- violet
- Rated current
- 3 A
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 11.1 mm
- Dimension: Width
- 3.9 mm
- Dimension: Height
- 17.4 mm
Technical features
- Rated current
- 3 A
- Rated voltage V DC
- 32 V DC
Safety/Certifications
- Standards
- DIN 7258-3, SAE J1284, ISO 8820, JASO D612
