EV29-800-M10
iMaXX Automotive fuse EV29-M10 evOTO 500VDC 800A Scrwe connection
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
5 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 8 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable fuse holders. - Type
- Automotive fuse
- Series
- EV29-M10
- Labeling or description
- evOTO
- Design
- Screw lock
- Rated current
- 800 A
- Rated voltage V DC
- 500 V DC
- Switching capacity
- 30.000 A
- RoHS-Conform
Specifications
Open all

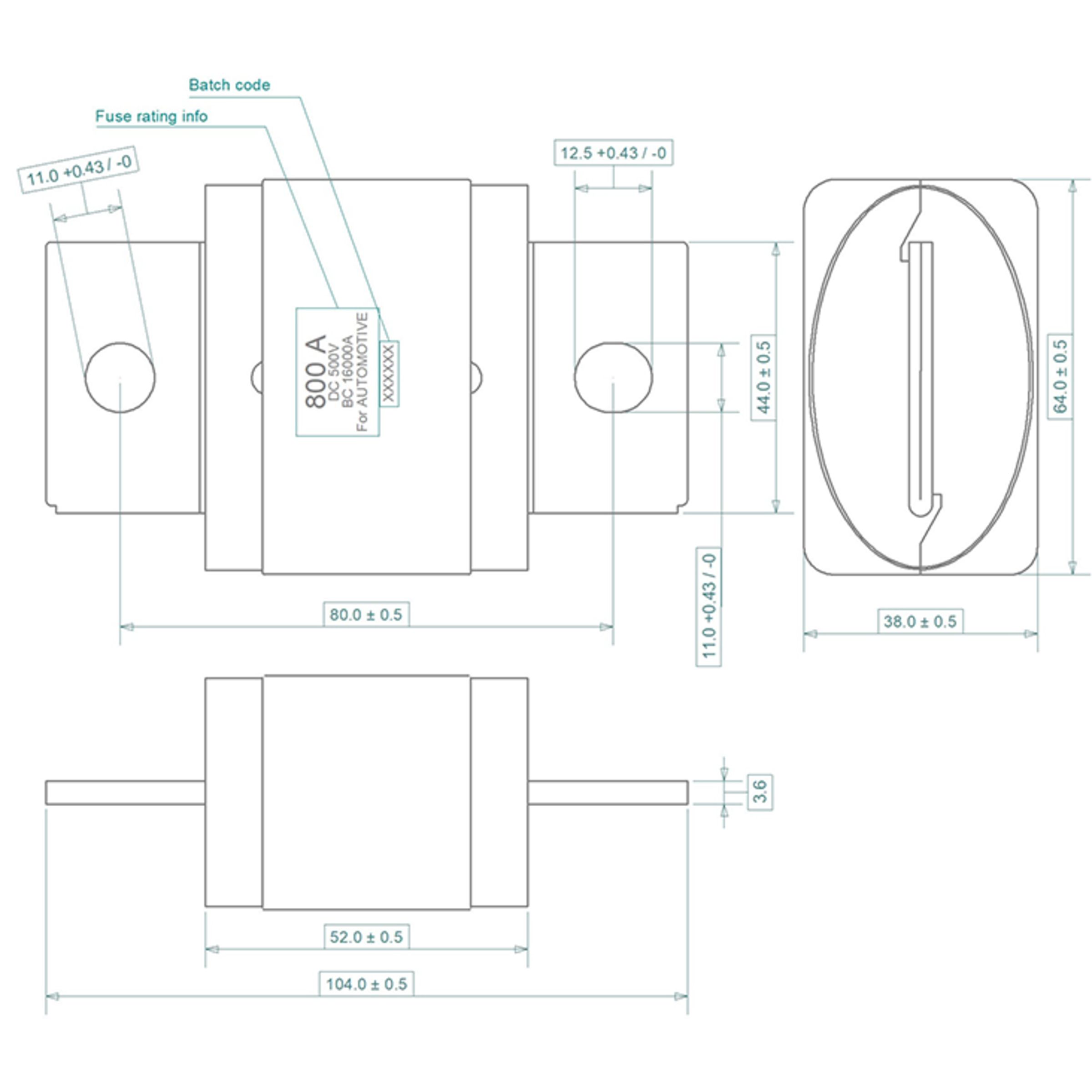

Dimensions and Weights
- Dimension: Length
- 104 mm
- Dimension: Width
- 64 mm
- Dimension: Height
- 68 mm
- Pitch
- 80 mm
- nounting holes
- M10
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 100 °C
- mounting screw torque
- 16 nm
Technical Features
- Rated current
- 800 A
- Switching capacity
- 30.000 A
- Rated breaking capacity
- 16.000 A
- Rated voltage V DC
- 500 V DC
Safety/Certifications
- Standards
- ISO 8820-8
