AZSR190-1A-12DL

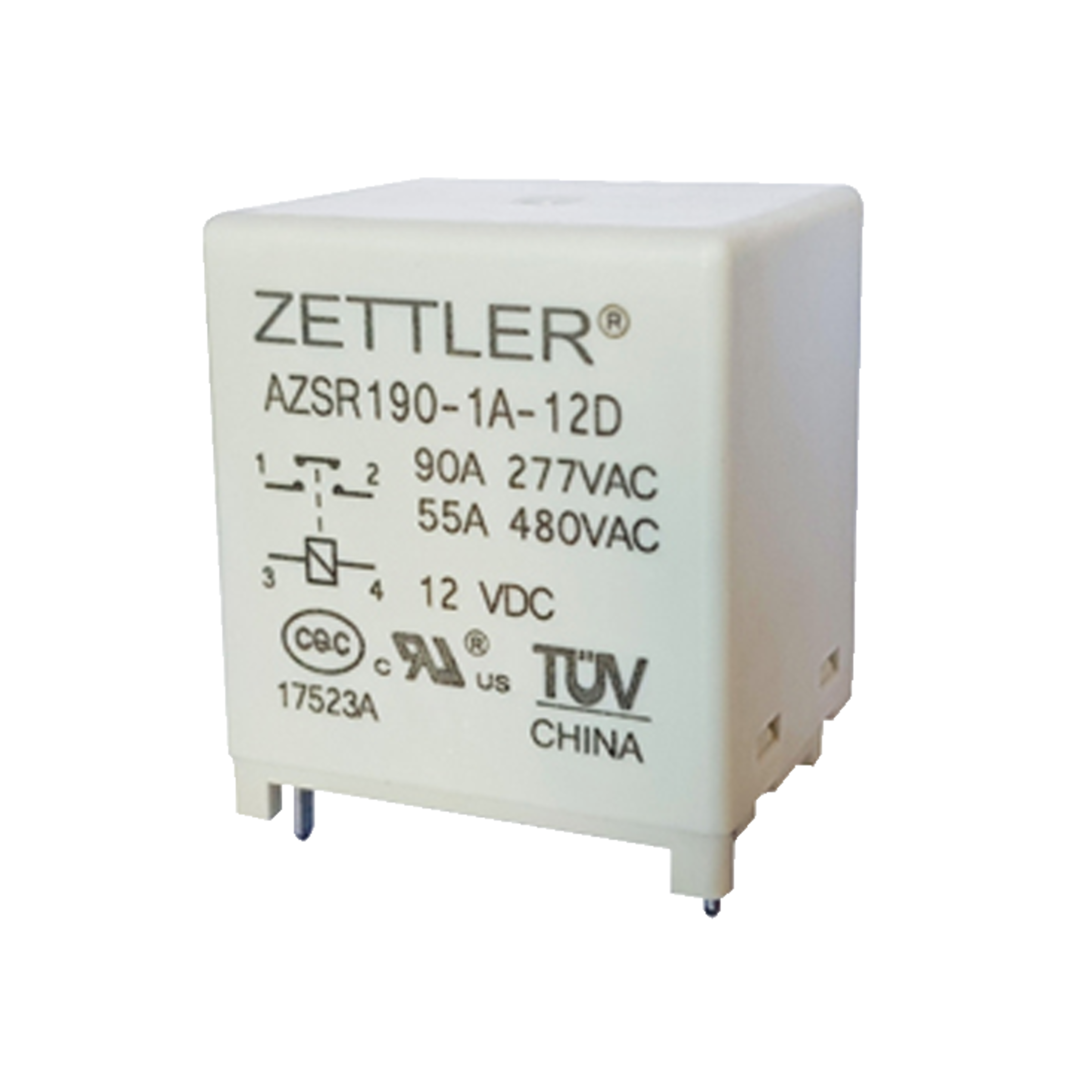

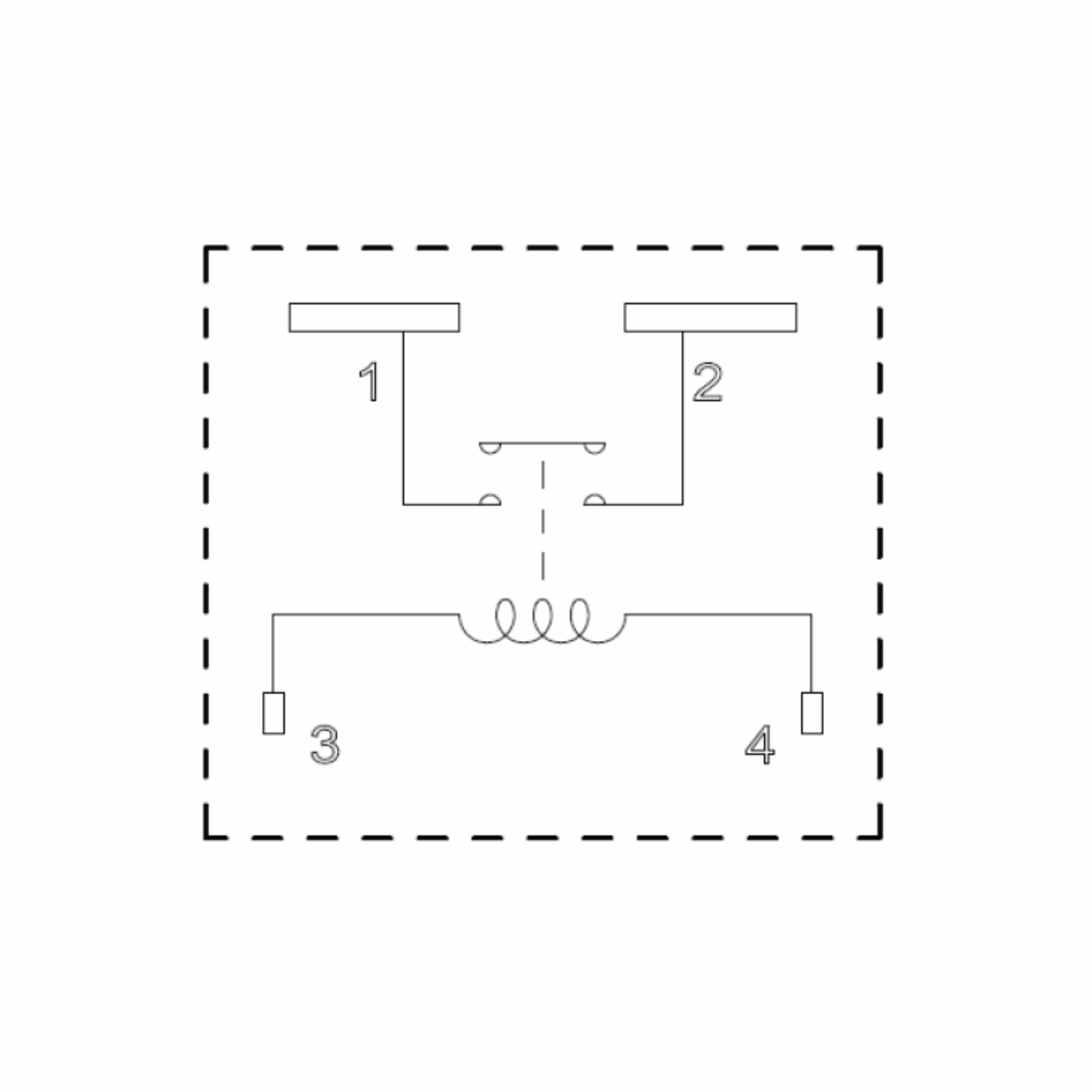

Zettler Power relay AZSR190 THT SPST-NO 90A 12VDC 75Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
598 Pcs. in stock
Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Power relay
- Series
- AZSR190
- Rated voltage DC
- 12 V DC
- Switching current
- 90 A
- contacts
- SPST-NO
- Coil resistance
- 75 Ohm
- Dimension: Length
- 38 mm
- Dimension: Width
- 33 mm
- Dimension: Height
- 41.5 mm
- RoHS-Conform
Specifications
Open all

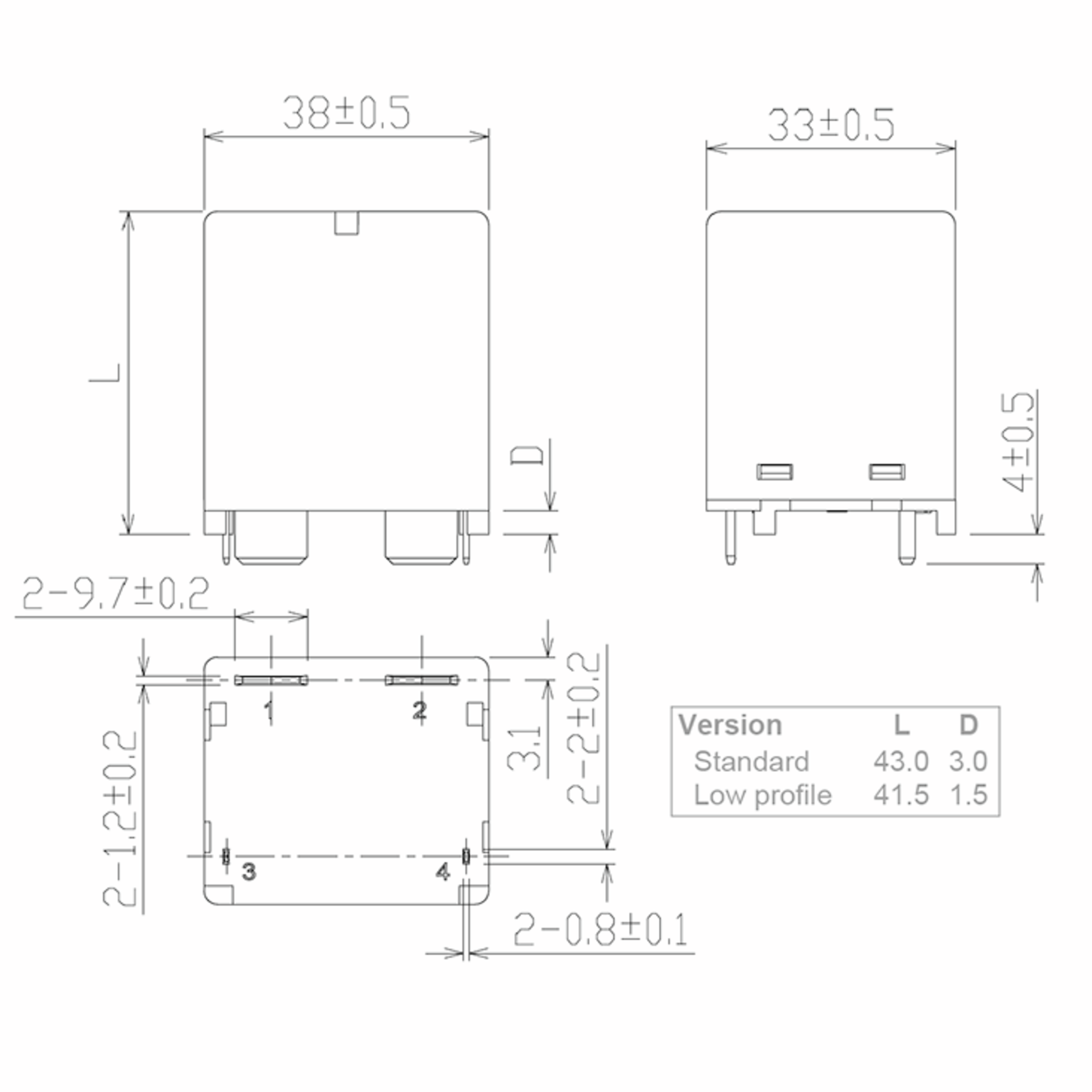

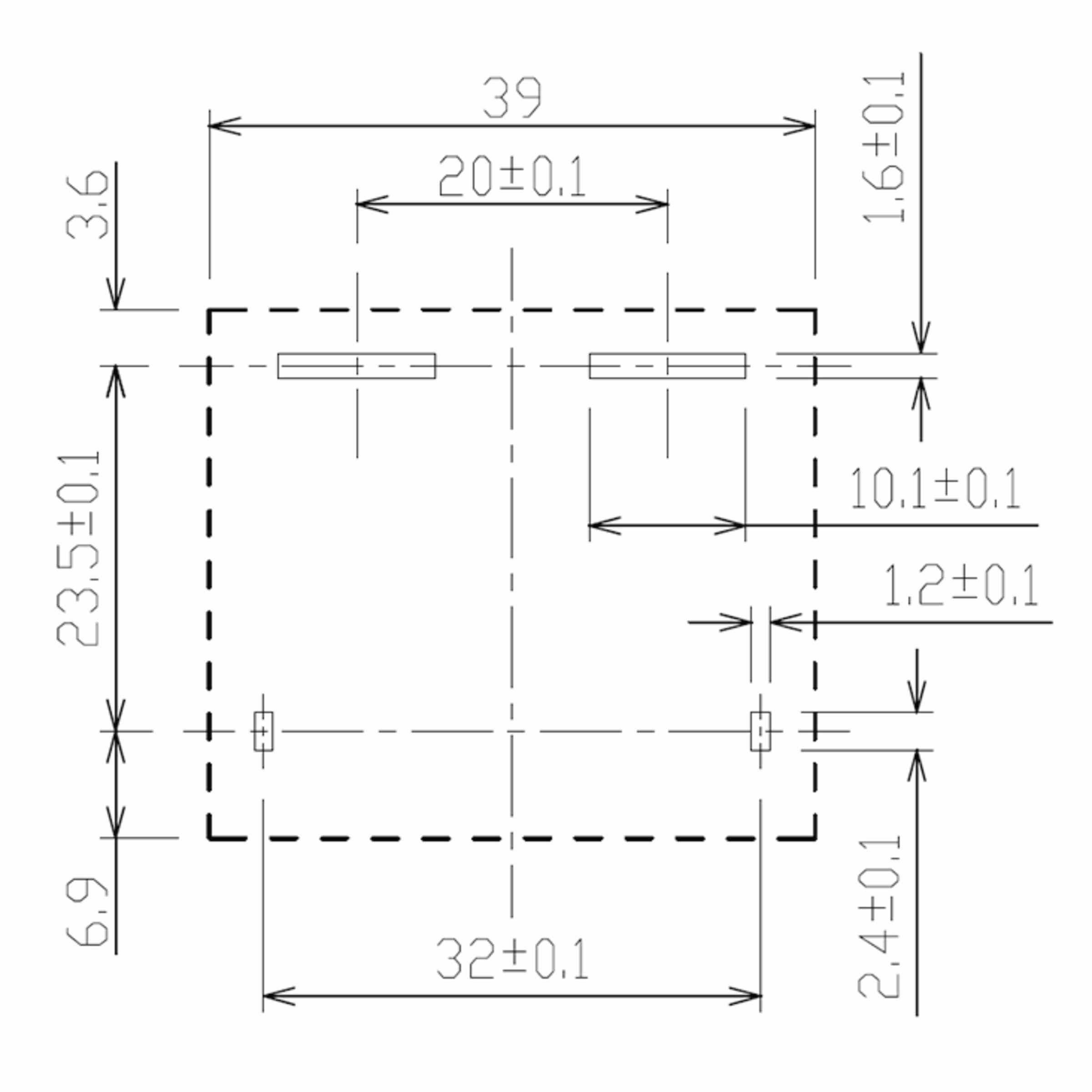

Dimensions and weights
- Dimension: Length
- 38 mm
- Dimension: Width
- 33 mm
- Dimension: Height
- 41.5 mm
- Weight
- 85 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 12 V DC
- Coil design
- Switching voltage, max. AC
- 800 V AC
- Response voltage
- 9 V
- Operating voltage, max.
- 13.2 V
- Test voltage open contacts
- 2,500 V AC
- Test voltage coil/contact
- 5,000 V AC
- Creepage distance
- 10 mm
- Switching current
- 90 A
- Rated power
- 1,920 mW
- Switching capacity (VA)
- 44,000 VA
- Coil resistance
- 75 Ohm
- Contact resistance
- 1 mOhm
- Insulation resistance
- 1.000 MOhm
- Response time
- 40 ms
- Drop-out time
- 10 ms
- Vibration resistance
- 1,5 mm DA
- Impact resistance, functional
- 10 G
Safety/Certifications
- Approvals
- MOT
- cULus
- Standards
- IEC 61810-1, UL 508
- Protection class RT
- RTII
