AZSR131-1AE-12D

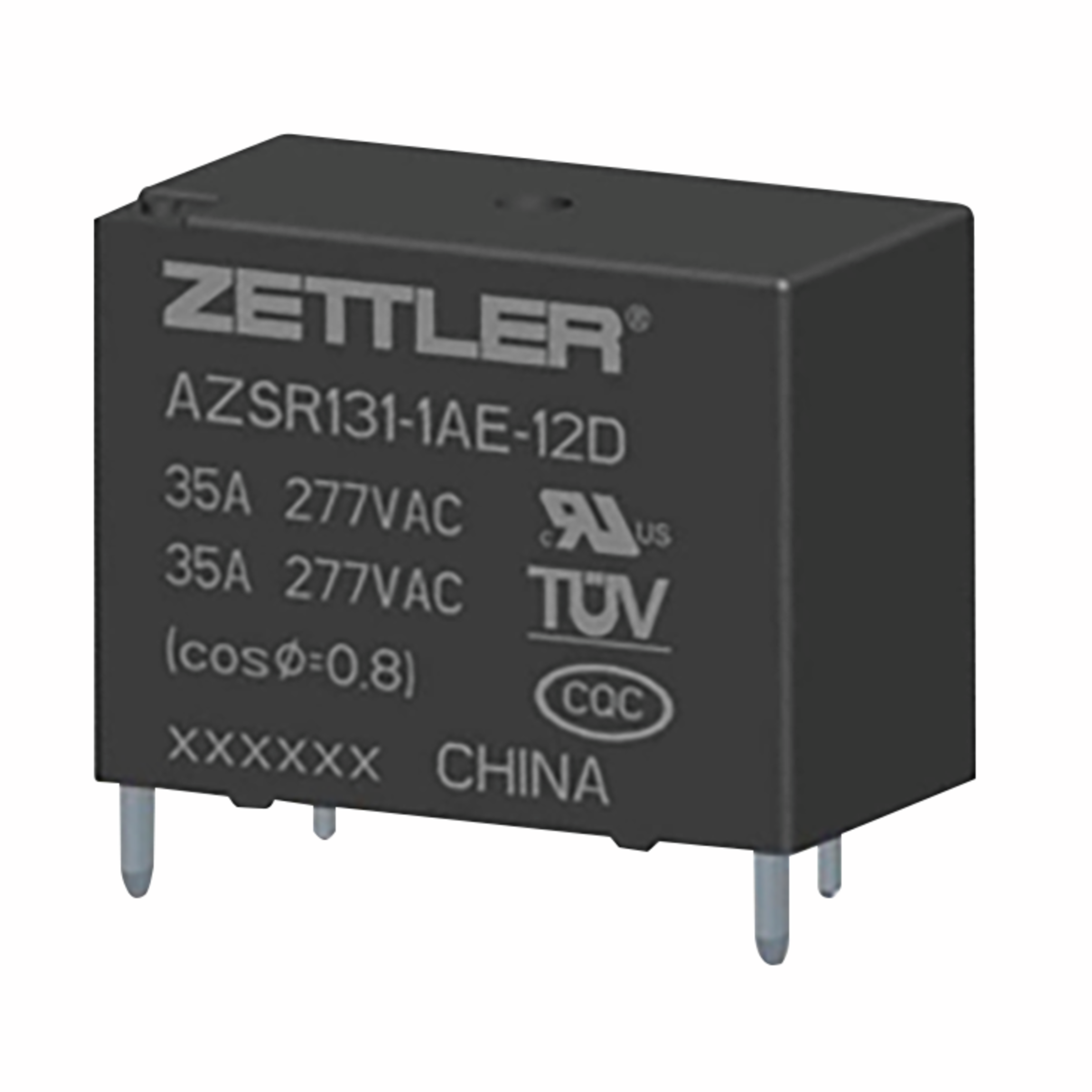

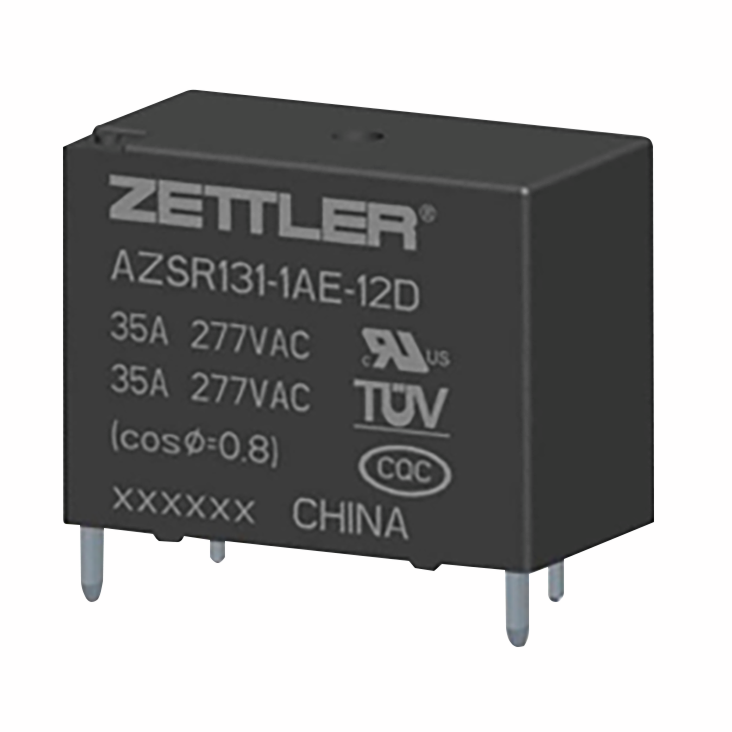

Zettler Power relay AZSR131 THT SPST-NO 35A 12VDC 103Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
510 Pcs. in stock
Next Stock Receipt
Week 03/2025
1.000 Pcs.
1.000 Pcs.
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Power relay
- Series
- AZSR131
- Rated voltage DC
- 12 V DC
- Switching current
- 35 A

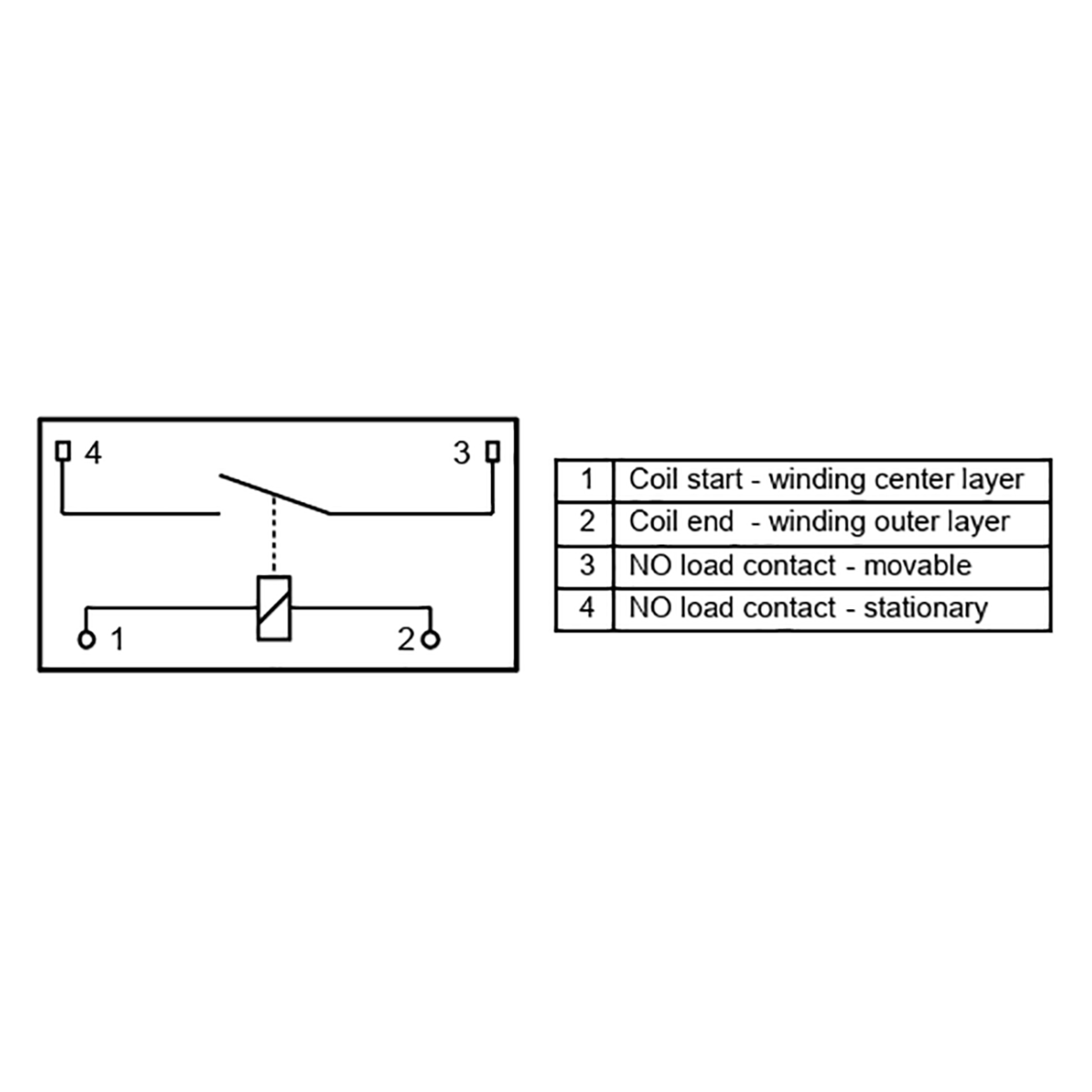

- contacts
- SPST-NO
- Coil resistance
- 103 Ohm

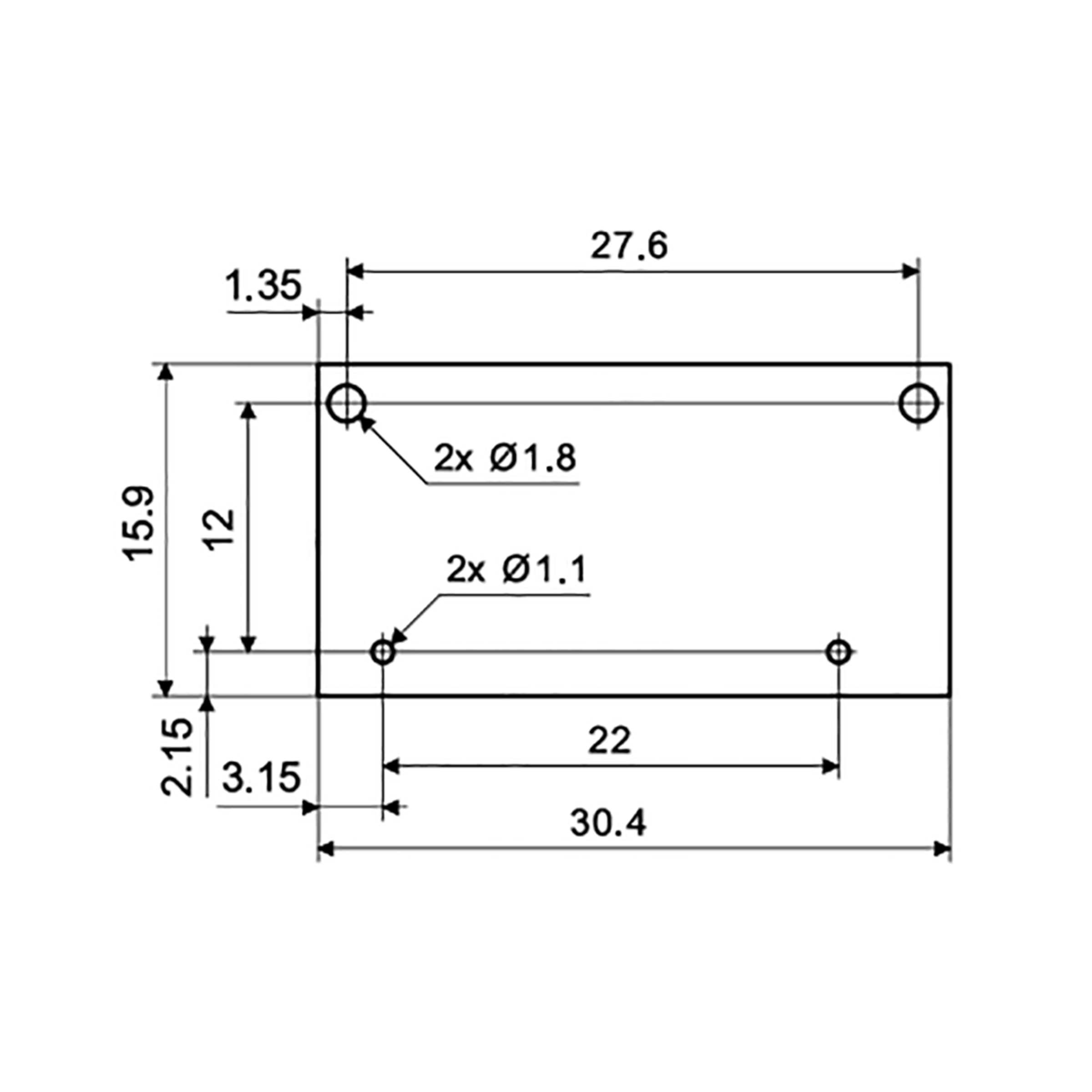

- Dimension: Length
- 30.4 mm
- Dimension: Width
- 15.9 mm
- Dimension: Height
- 25.15 mm
- RoHS-Conform
Specifications
Open all

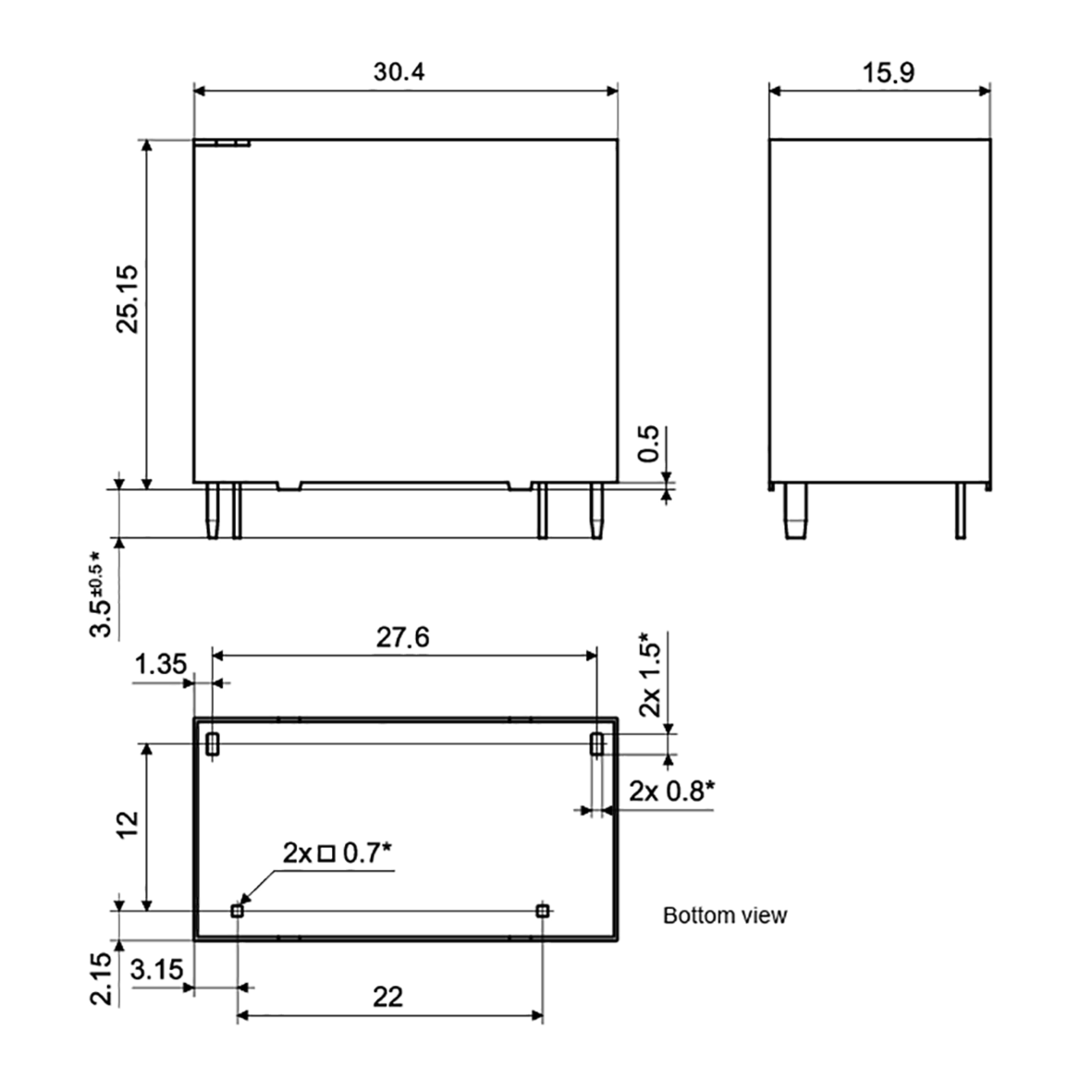

Dimensions and weights
- Dimension: Length
- 30.4 mm
- Dimension: Width
- 15.9 mm
- Dimension: Height
- 25.15 mm
- Weight
- 25 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 12 V DC
- Coil design
- Switching voltage, max. AC
- 277 V AC
- Response voltage
- 8.4 V
- Operating voltage, max.
- 14.4 V
- Test voltage open contacts
- 2,500 V AC
- Test voltage coil/contact
- 4,500 V AC
- Creepage distance
- 7.5 mm
- Switching current
- 35 A
- Continuous current
- 35 A
- Rated power
- 1,400 mW
- Switching capacity (VA)
- 9,695 VA
- Coil resistance
- 103 Ohm
- Contact resistance
- 100 mOhm
- Insulation resistance
- 1.000 MOhm
- Response time
- 20 ms
- Drop-out time
- 10 ms
- Vibration resistance
- 1,5 mm DA
- Impact resistance, functional
- 20 G
Safety/Certifications
- Approvals
- MOT
- cULus
- Standards
- IEC 61810-1, UL 508
- Protection class RT
- RTII
