AZEV400-4AE1BG-9D

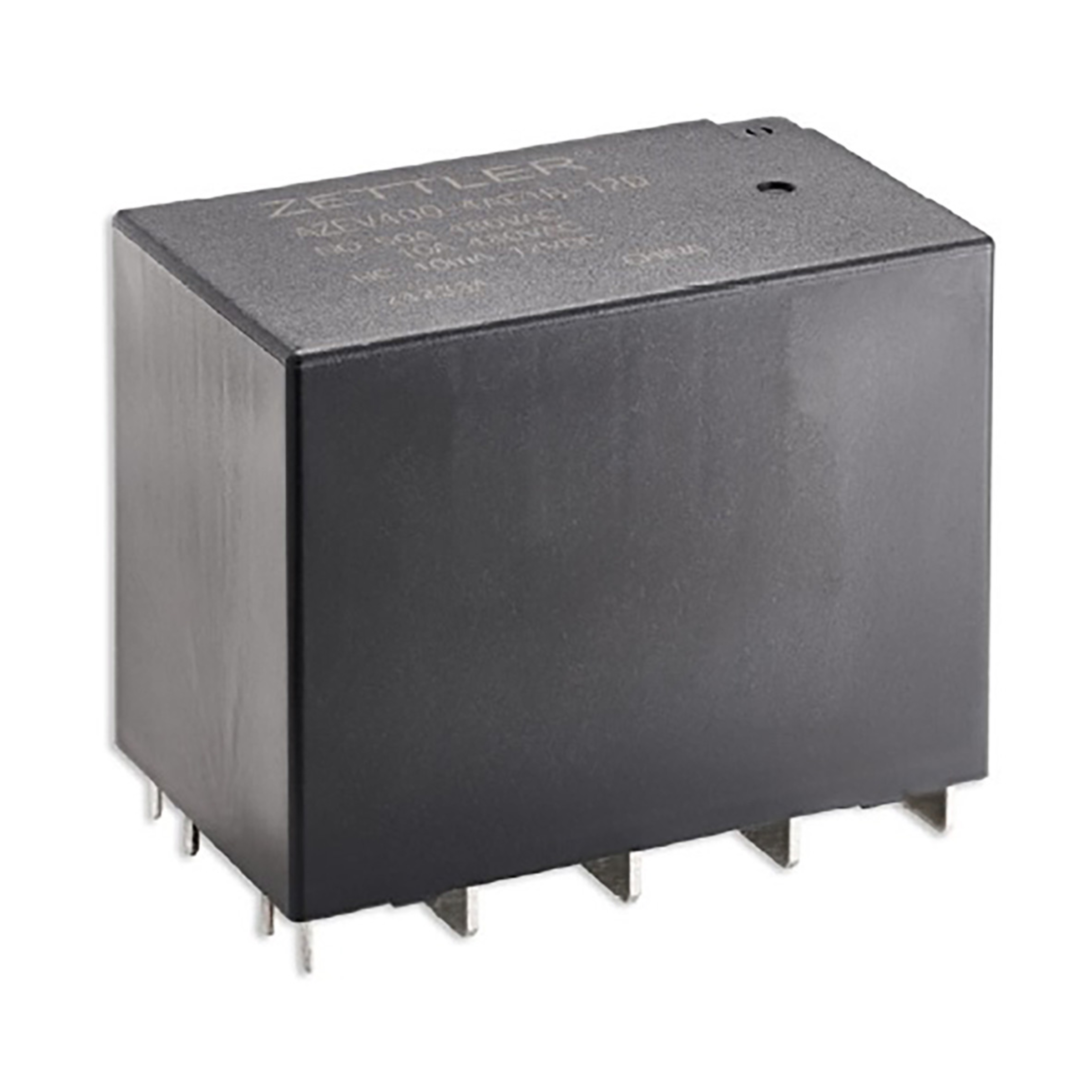

Zettler PC relay AZEV400 THT 4PST-NO/SPST-NC 50A 9VDC 16,9Ohm 58,6mmx35mmx45,3mm RTII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 60 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 180 or multiple of 180)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable sockets and accessories. - Series
- AZEV400
- contacts

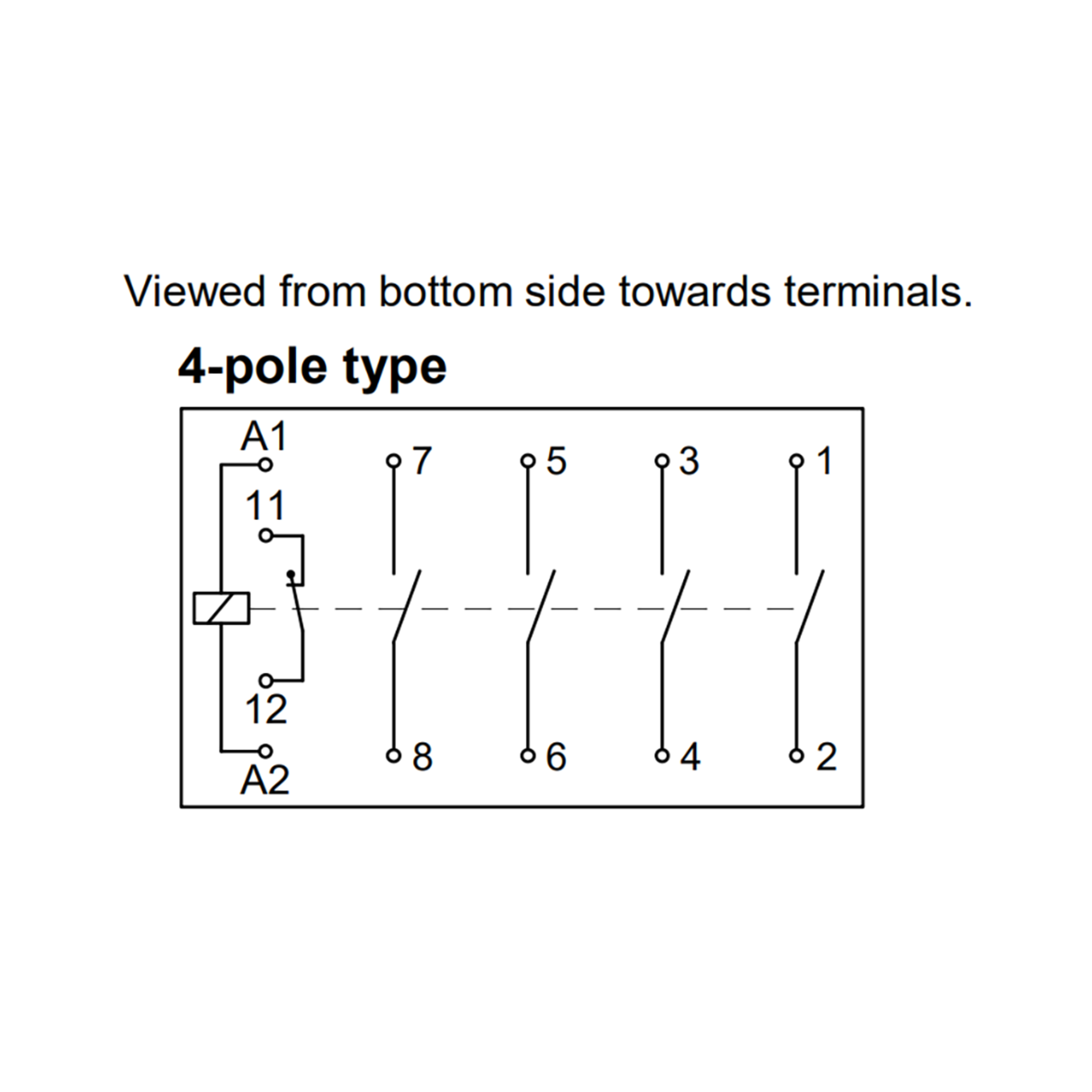

- 4PST-NO/SPST-NC
- Contact: Switching Current (min/typ/max)
- 50 A
- Coil: Nominal Voltage DC
- 9 V DC
- Coil resistance
- 16.9 Ohm
- Protection class RT
- RTII
- RoHS-Conform
Specifications
Open all

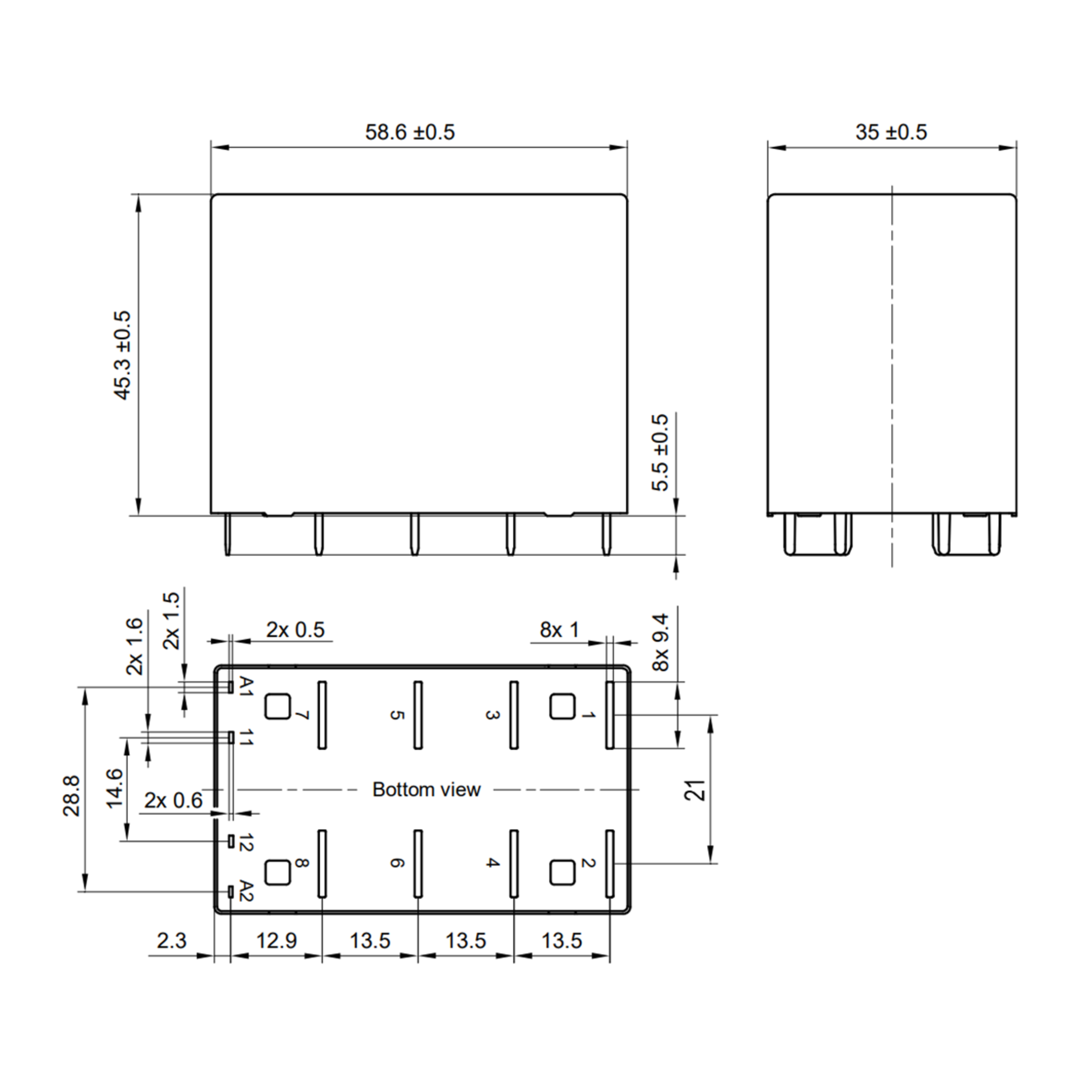

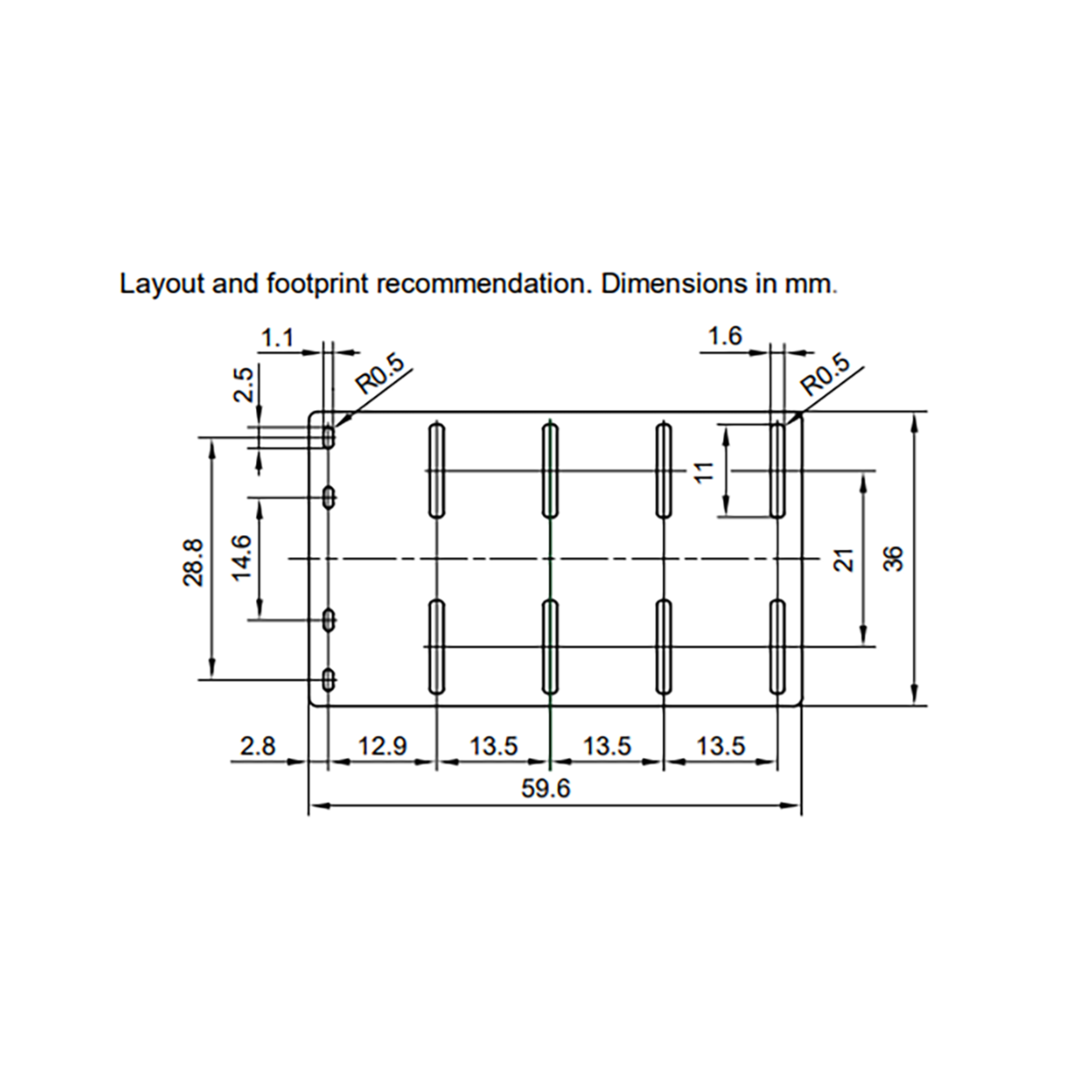

Dimensions and Weights
- Dimension: Length
- 58.6 mm
- Dimension: Width
- 35 mm
- Dimension: Height
- 45.3 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 95 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 50 A
- Contact: Switching Voltage, max. AC
- 480 V AC
- Contact: Rated Current
- 50 A
- Contact: Continuous Current
- 50 A
- Contact: Switching Capacity (VA)
- 41,500 VA
- Contact: Voltage Resistance
- 10 kV
- Contact resistance
- 16.9 mOhm
- Creepage distance
- 4 mm
- Coil design
- monostable
- Coil resistance
- 16.9 Ohm
- Inductor power
- 4,800 mW
- Coil: Nominal Voltage DC
- 9 V DC
- Coil: Operating Voltage, min.
- 6.7 V
- Coil: Operating Voltage, max.
- 9.6 V
- Coil: Pick-up voltage
- 3.5 V
- Coil: Drop-out Voltage
- 0.45 V
- Test voltage contact/contact
- 3,000 V AC
- Test voltage open contacts
- 2,000 V AC
- Test voltage coil/contact
- 5,000 V AC
- Response time
- 50 ms
- Drop-out time
- 30 ms
- Mechanical service life
- 200,000 operations
- Service life, electrical
- 50,000 operations
- Vibration resistance
- 1,5 mm DA
- Impact resistance, functional
- 10 g
- Soldering temperature, max.
- 260°C / 5s
Safety/Certifications
- Approvals
- CQC
- MOT
- cULus
- Standards
- UL 508, CSA C22.2, IEC 61810-1. GB/T 21711.1-2023
- Protection class RT
- RTII
