AZ977-1C-12D

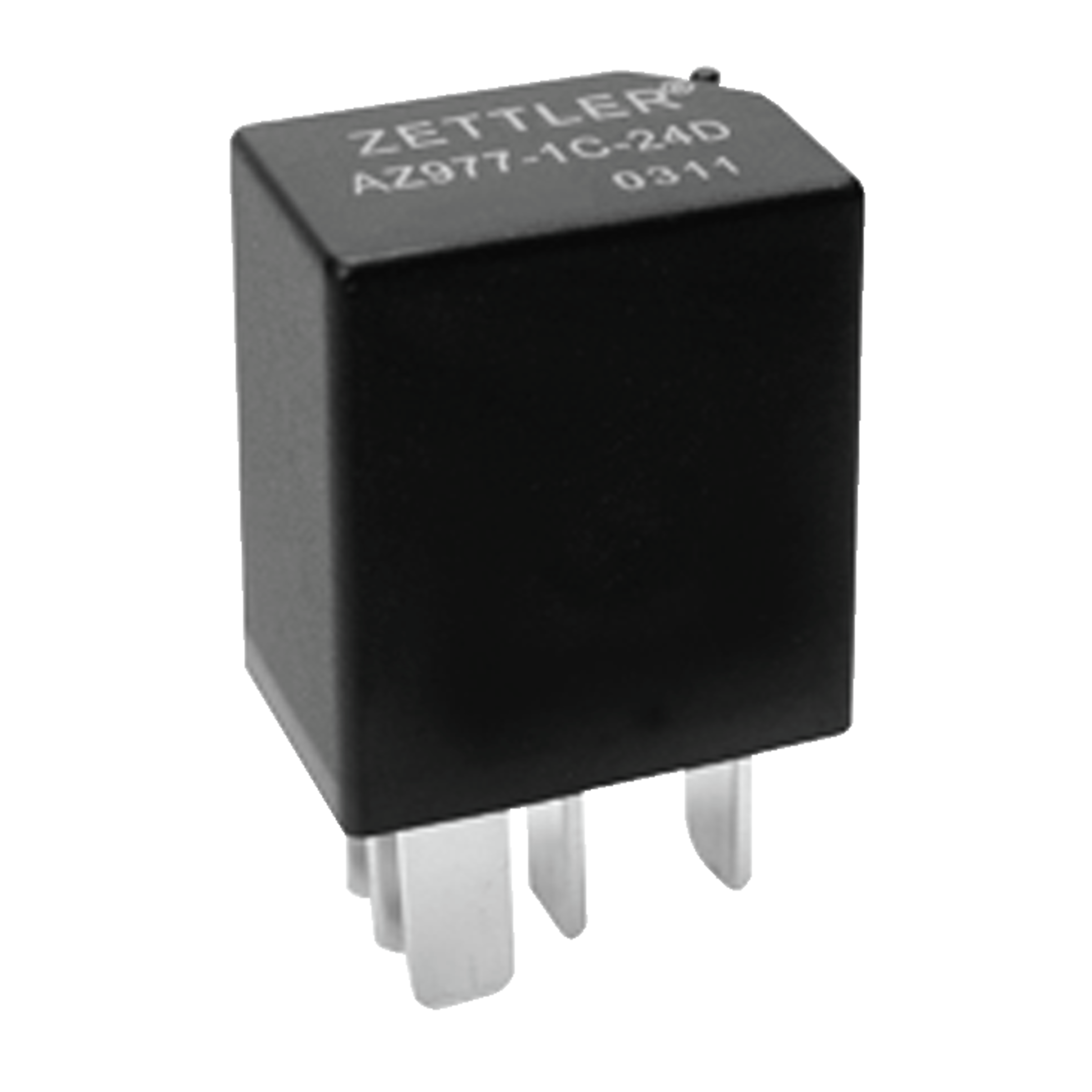

Zettler Automotive relay AZ977 SPDT 20A 12VDC 97Ohm 23mmx15,5mmx26mm

AZ977-1C-12DAZ977-1C-12DAZ977-1C-12DAZ977-1C-12D
Manufacturer Part No.
AZ977-1C-12D
Schukat Part No.
AZ977-1C-12D
Manufacturer
Zettler
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Next Stock Receipt
Week 31/2026
1.840 Pcs.
Planned delivery time
Ø 34 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
• Here you will find suitable relay sockets and accessories.
Series
AZ977

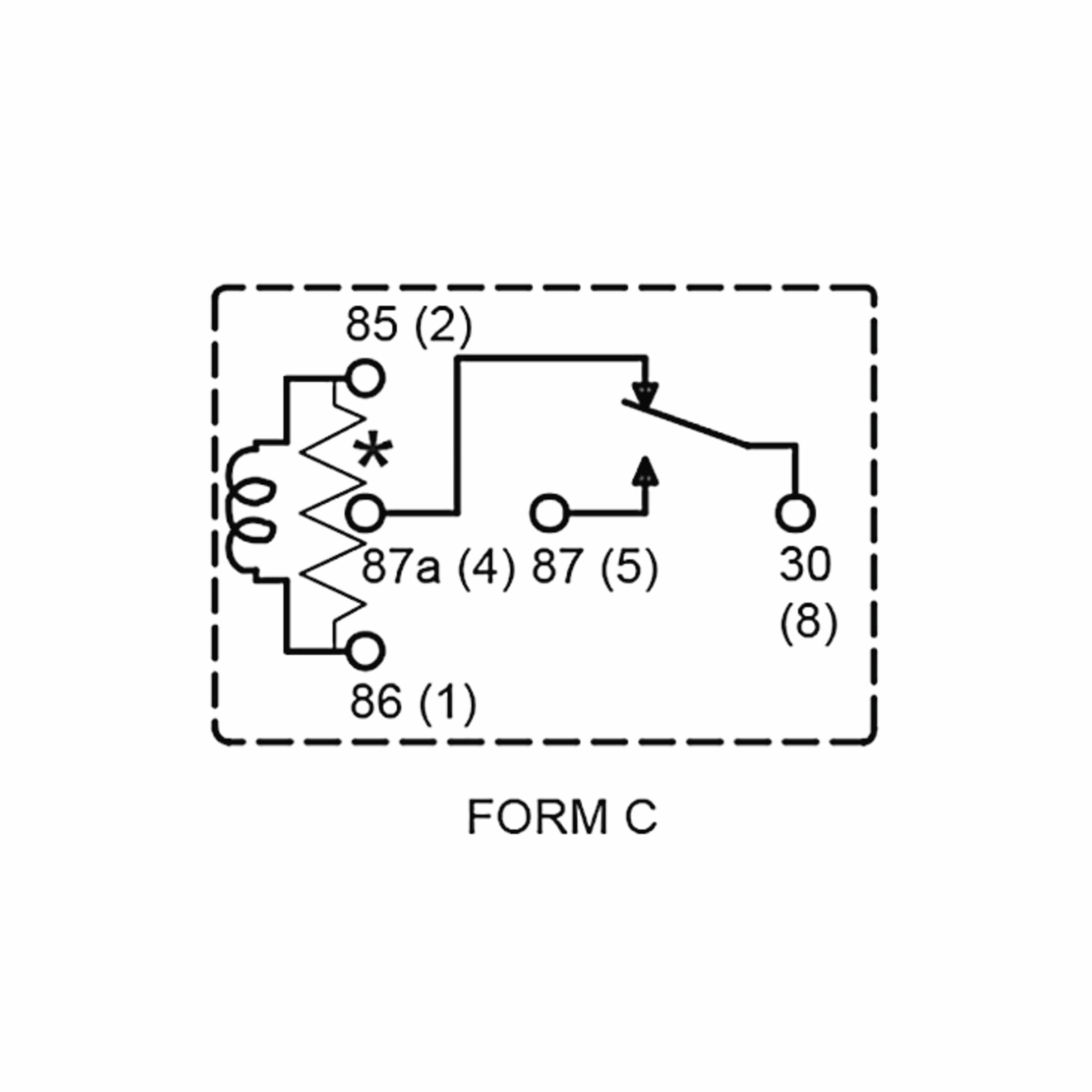

contacts
SPDT
Contact: Switching Current (min/typ/max)
20 A
Coil: Nominal Voltage DC
12 V DC
Coil resistance
97 Ohm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Zettler
Type
  • Automotive relay
Series
  • AZ977
Product group
  • E6527
contacts
  • SPDT
Contact material
  • AgSnO2
Assembly Type
  • THT
Termination Style
  • Solder/Plug connection
Application

  • • For applications with high inrush current

Features

  • • Switching capacity up to 20A
    • Low cost
    • Small footprint
    • Vibration and shock resistant

Notice

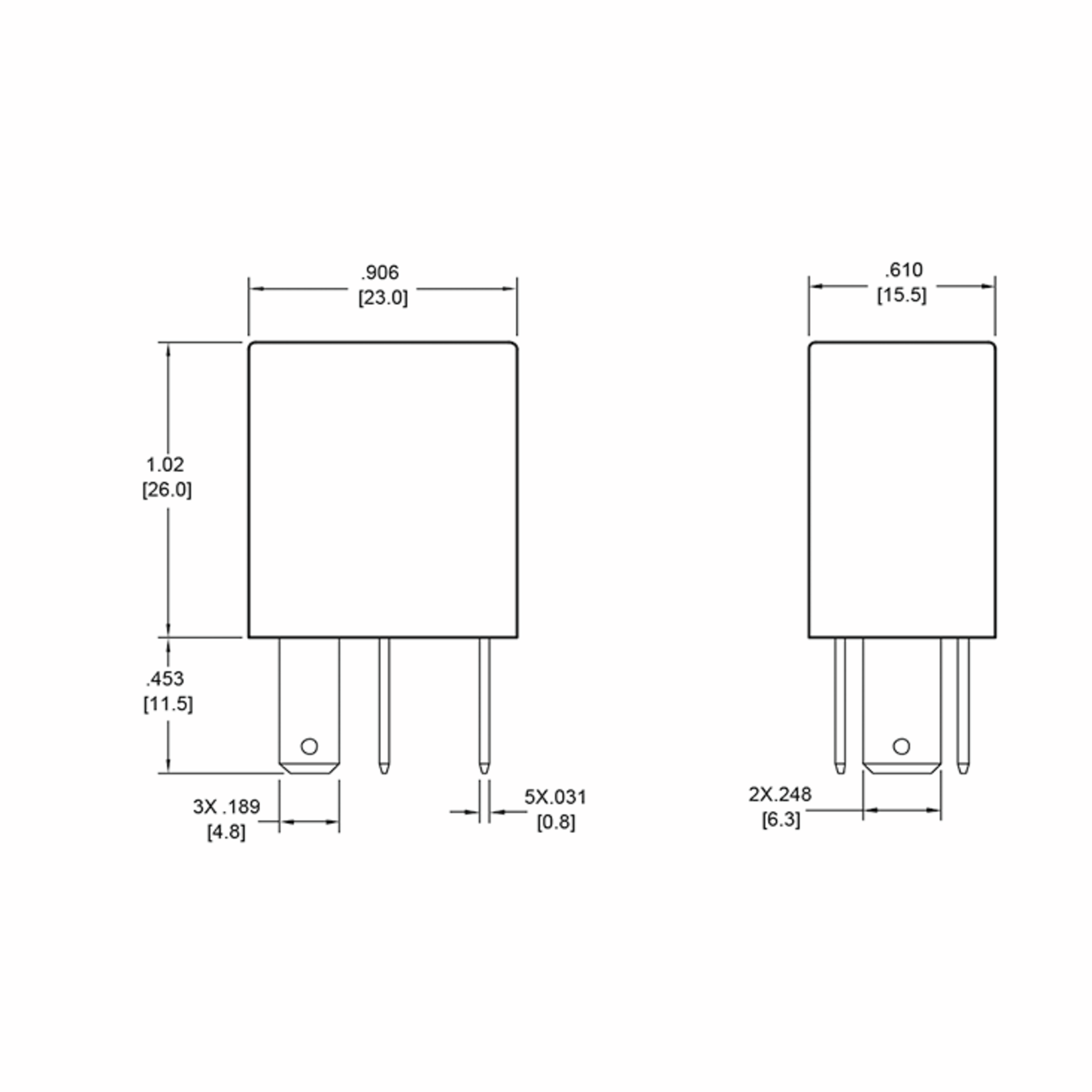

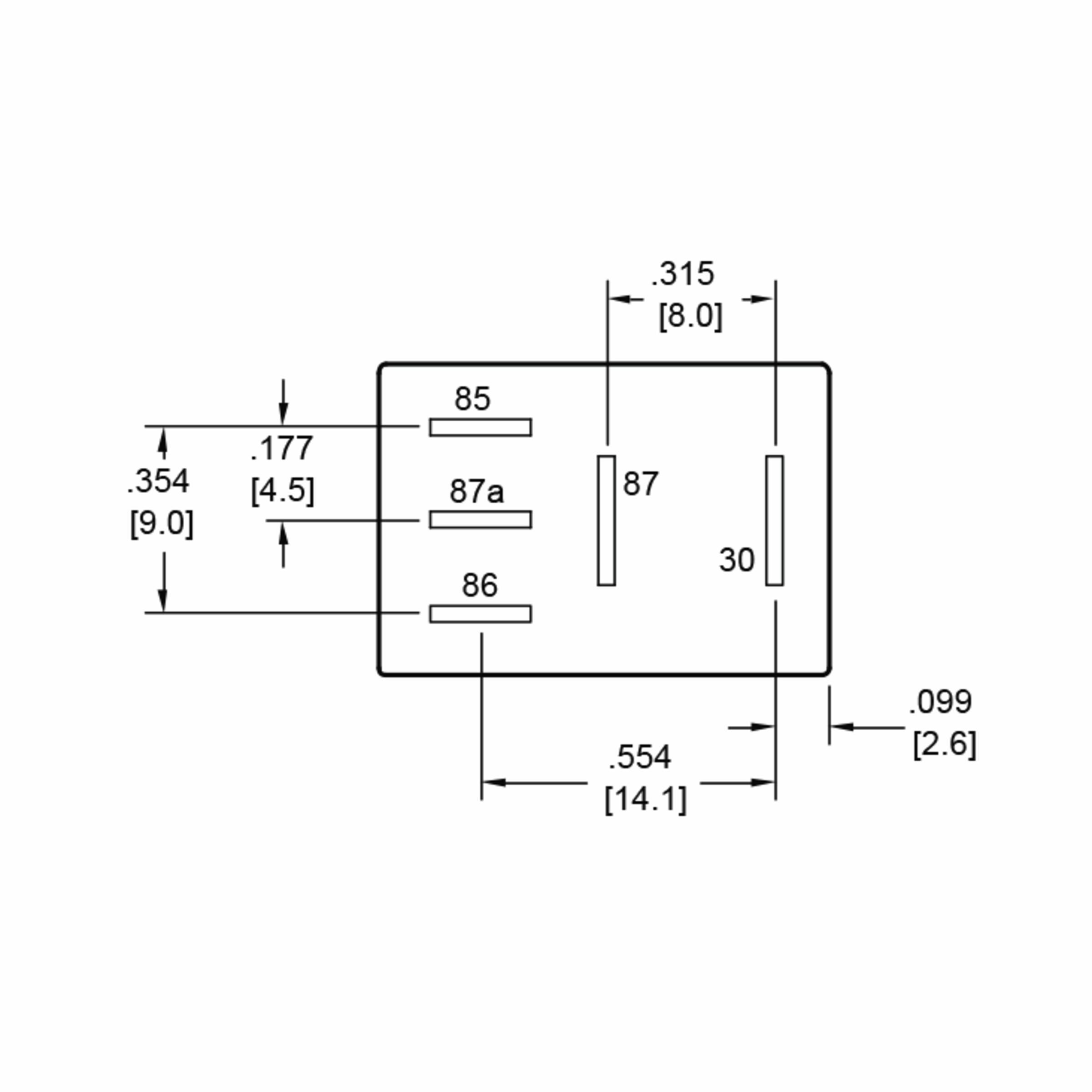

Dimensions and Weights

Dimension: Length
  • 23 mm
Dimension: Width
  • 15.5 mm
Dimension: Height
  • 26 mm
Weight
  • 18.5 g

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 85 °C

Technical Features

Contact: Switching Current (min/typ/max)
  • 20 A
Contact: Switching Voltage, max. DC
  • 150 V DC
Contact: Switching Load (W)
  • 280 W
Contact resistance
  • 50 mOhm
Coil design
  • monostable
Coil resistance
  • 97 Ohm
Inductor power
  • 534 mW
Coil: Nominal Voltage DC
  • 12 V DC
Coil: Operating Voltage, min.
  • 7.2 V
Coil: Operating Voltage, max.
  • 15.6 V
Coil: Drop-out Voltage
  • 0.996 V
Test voltage open contacts
  • 500 V AC
Test voltage coil/contact
  • 1,000 V AC
Response time
  • 10 ms
Drop-out time
  • 7 ms
Insulation resistance
  • 100 MOhm
Vibration resistance
  • 1,5 mm DA
Impact resistance, functional
  • 10 g
