AZ9731-1A-12DC2
Zettler Automotive relay AZ9731 SPST-NO 40A 12VDC 90Ohm 26,5mmx26,5mmx24,5mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
130 Pcs. in stock
Planned delivery time
Ø 32 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- AZ9731

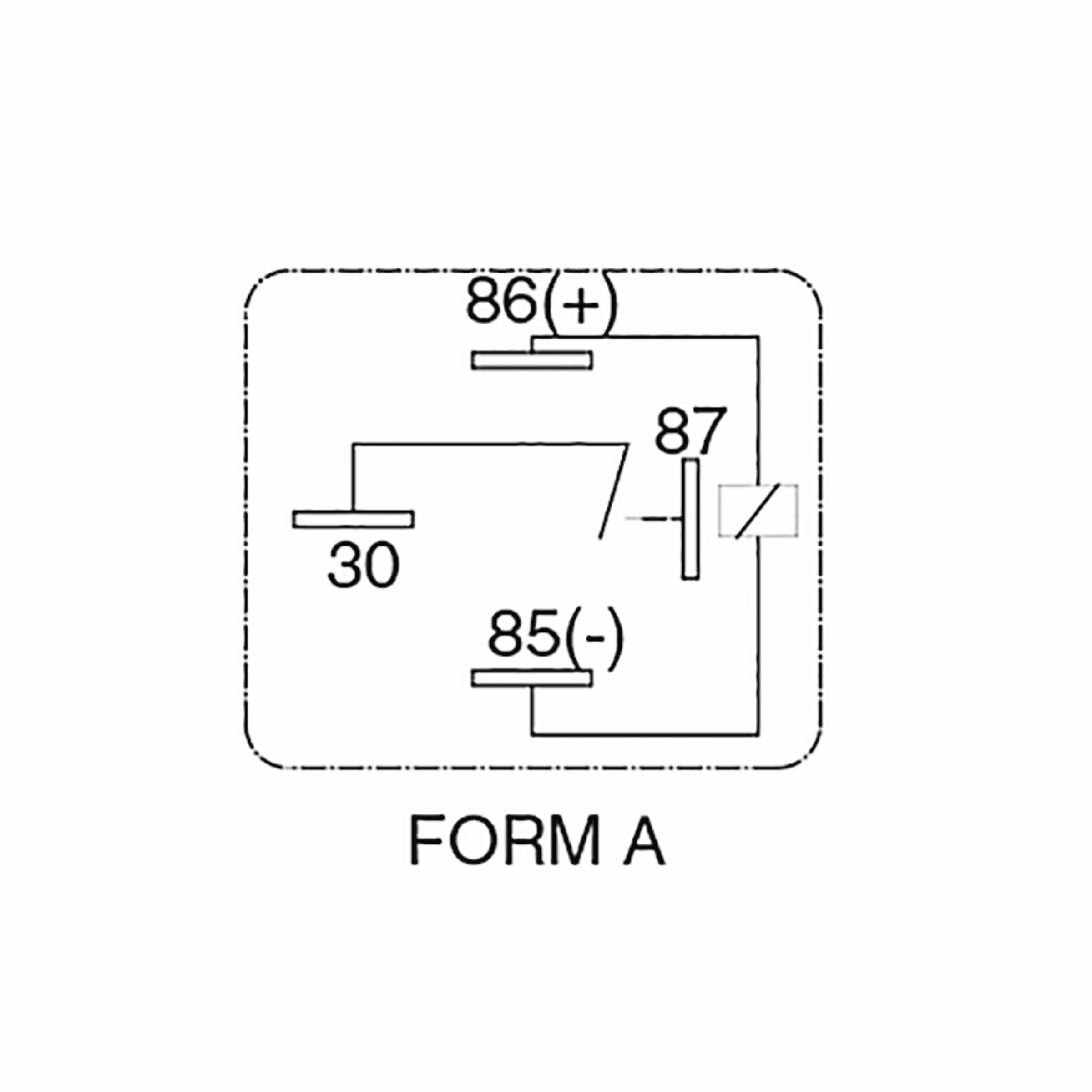

- contacts
- SPST-NO
- Contact: Switching Current (min/typ/max)
- 40 A
- Coil: Nominal Voltage DC
- 12 V DC
- Coil resistance
- 90 Ohm
- RoHS-Conform
Specifications
Open all

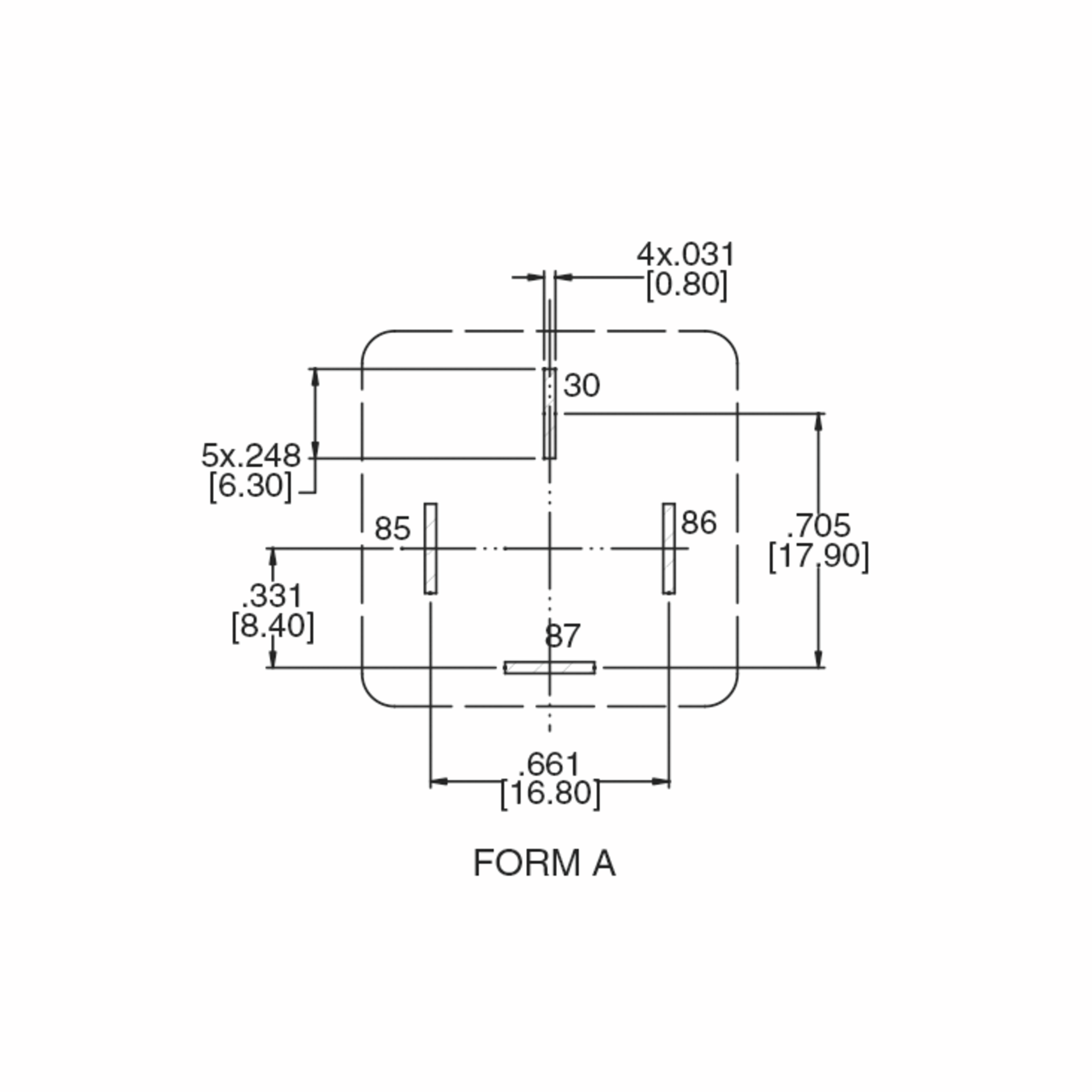

Dimensions and Weights
- Dimension: Length
- 26.5 mm
- Dimension: Width
- 26.5 mm
- Dimension: Height
- 24.5 mm
- Weight
- 36 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 40 A
- Contact: Switching Voltage, max. DC
- 28 V DC
- Contact: Switching Load (W)
- 560 W
- Contact resistance
- 100 mOhm
- Coil design
- monostable
- Coil resistance
- 90 Ohm
- Inductor power
- 680 mW
- Coil: Nominal Voltage DC
- 12 V DC
- Coil: Operating Voltage, max.
- 15.6 V
- Coil: Pick-up voltage
- 7.8 V
- Coil: Drop-out Voltage
- 1.2 V
- Test voltage open contacts
- 500 V AC
- Test voltage coil/contact
- 750 V AC
- Response time
- 7 ms
- Drop-out time
- 5 ms
- Insulation resistance
- 100 MOhm
- Vibration resistance
- 1,5 mm DA
- Impact resistance, functional
- 15 g
Safety/Certifications
- Standards
- ISO/TS 16949, ISO14001
