AZ9371-1A-12DE

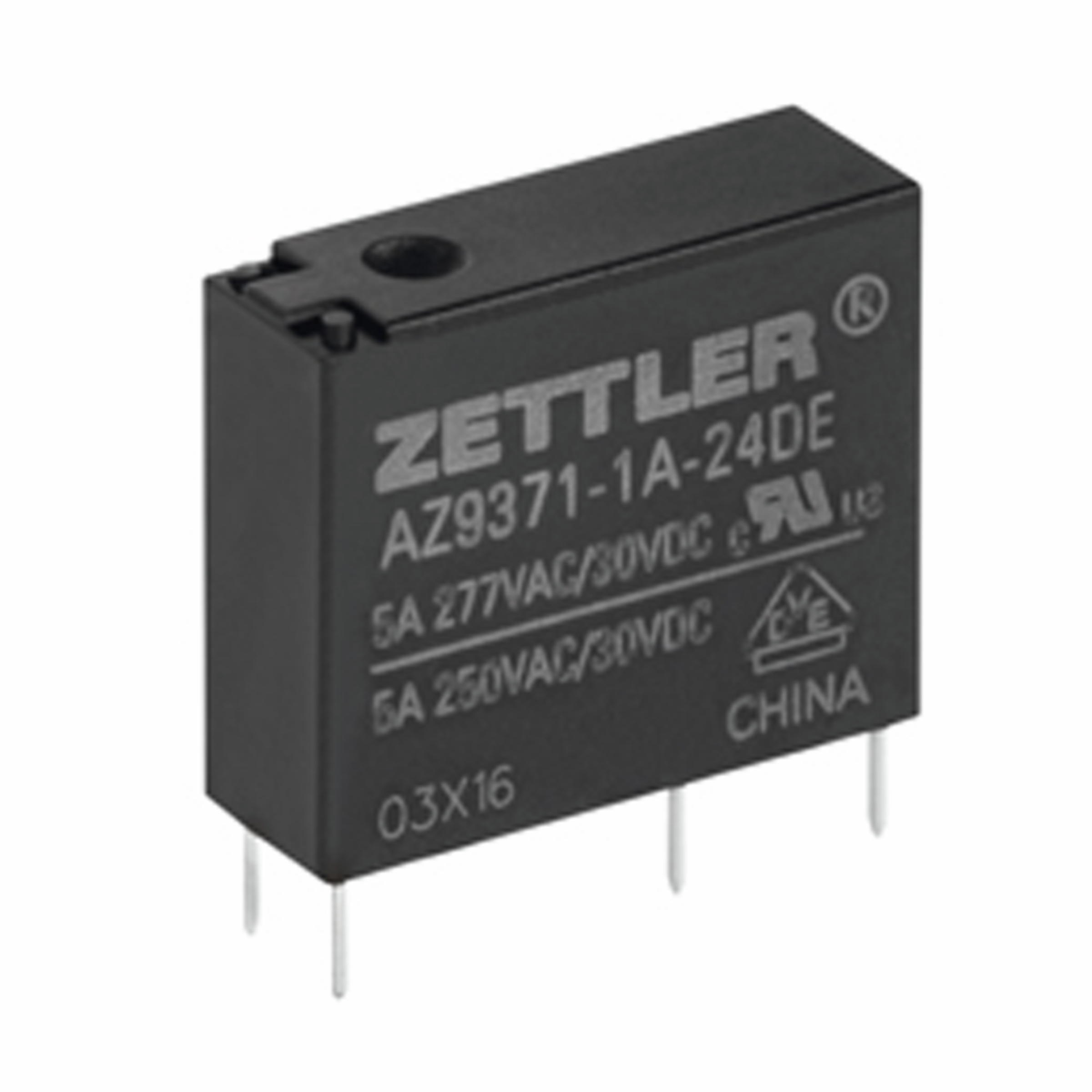

Zettler PC relay AZ9371 THT SPST-NO 5A 12VDC 720Ohm 20,5mmx7,2mmx15,3mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.020 Pcs. in stock
Planned delivery time
Ø 26 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 160 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- AZ9371

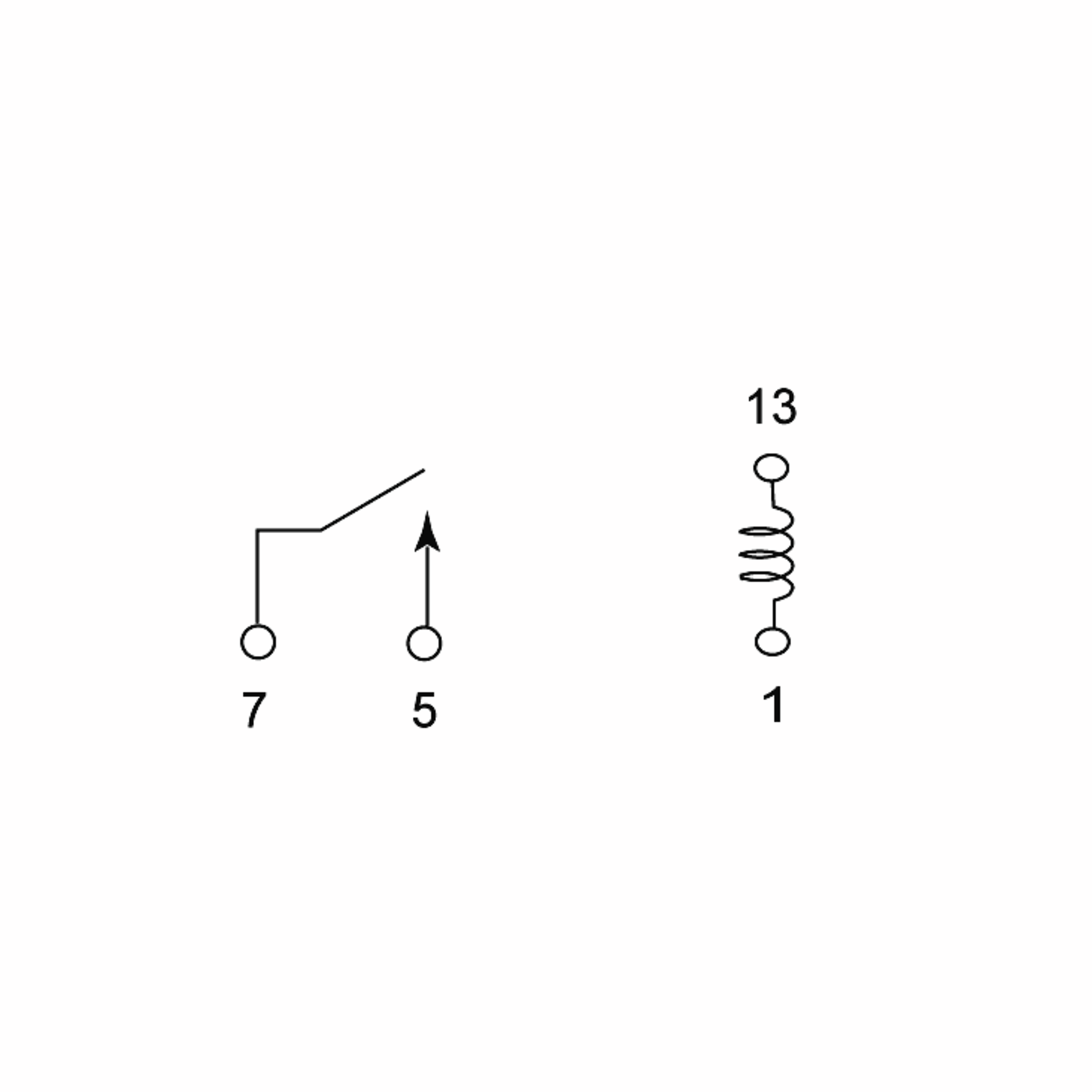

- contacts
- SPST-NO
- Contact: Switching Current (min/typ/max)
- 5 A
- Coil: Nominal Voltage DC
- 12 V DC
- Coil resistance
- 720 Ohm
- RoHS-Conform
Specifications
Open all

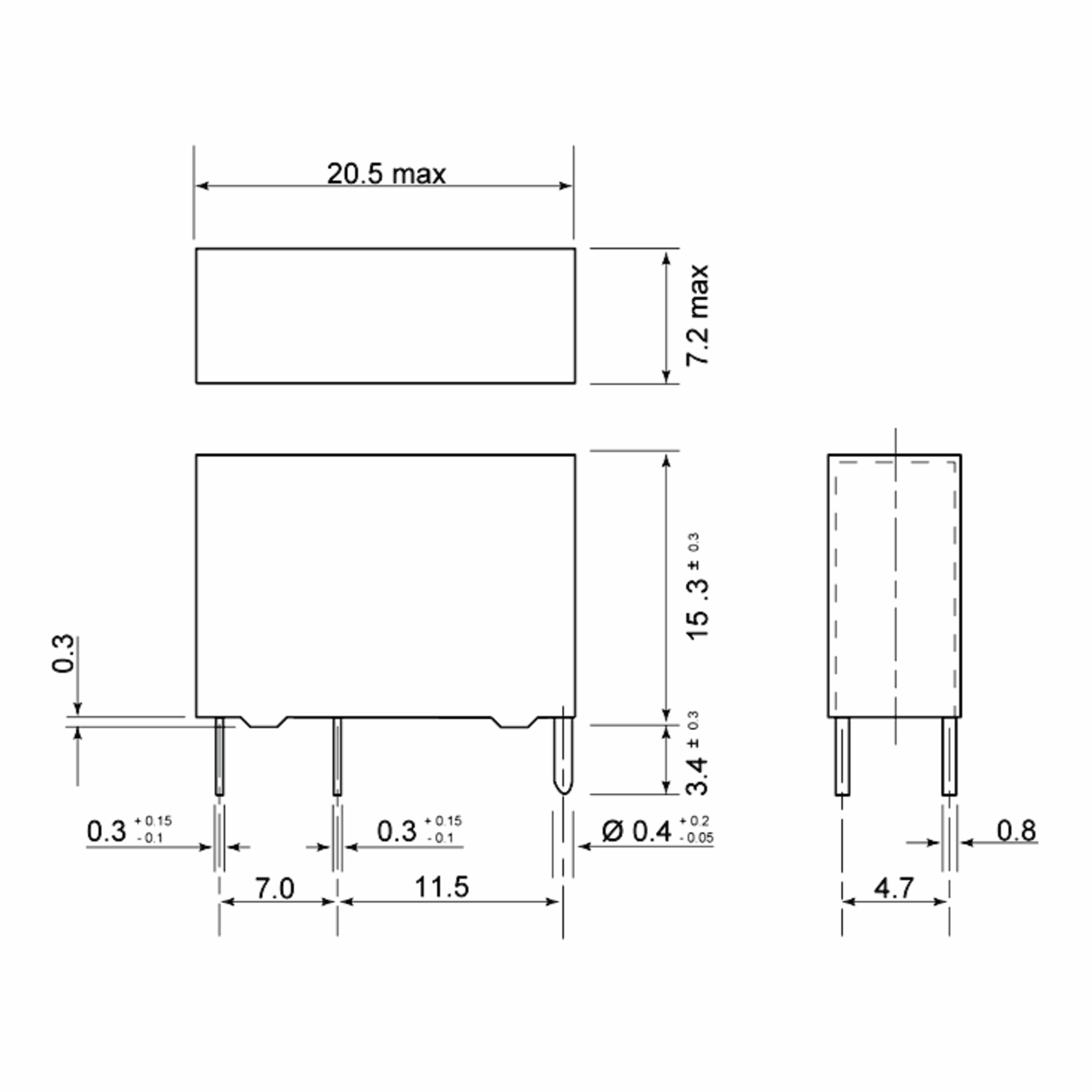

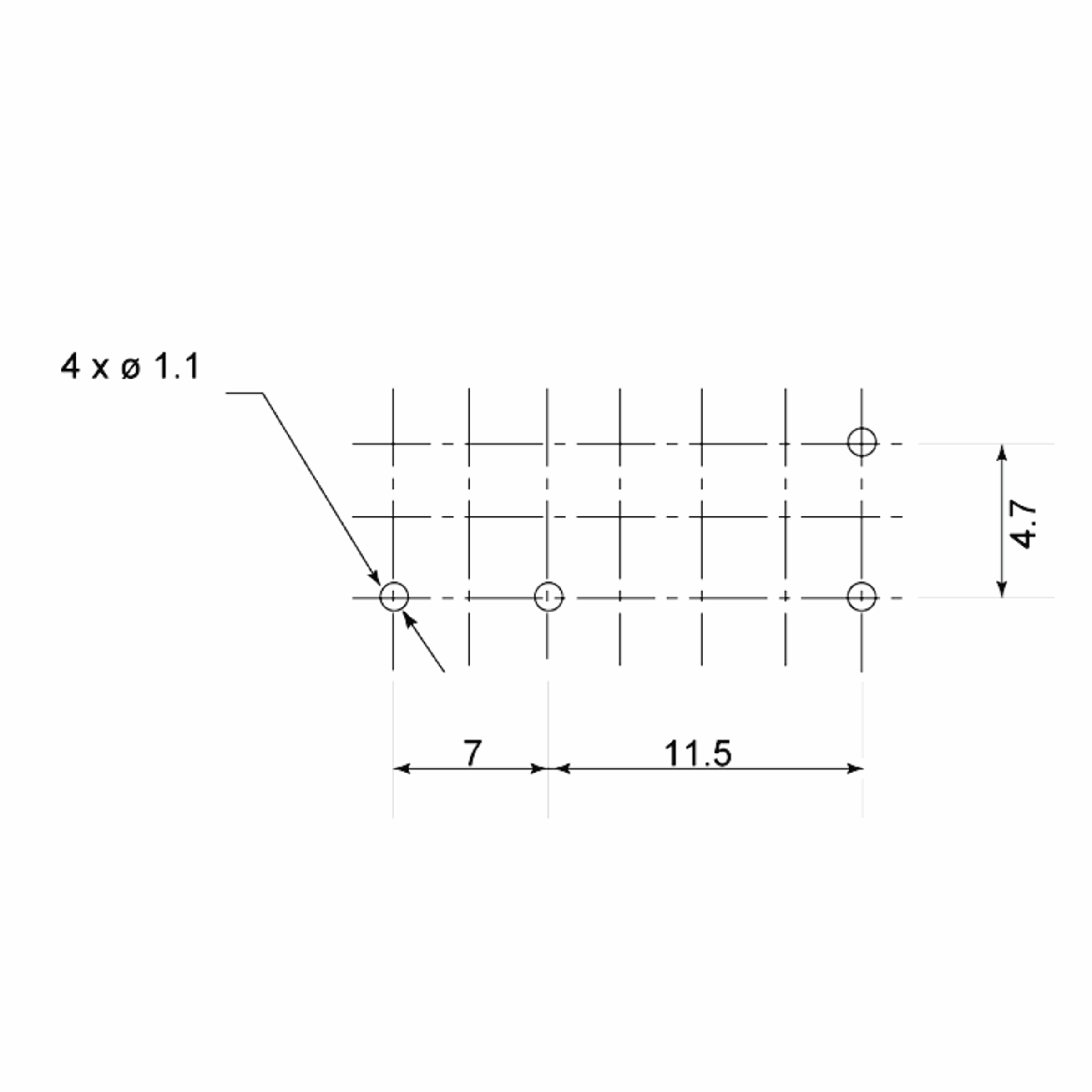

Dimensions and Weights
- Dimension: Length
- 20.5 mm
- Dimension: Width
- 7.2 mm
- Dimension: Height
- 15.3 mm
- Weight
- 3 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 5 A
- Contact: Switching Voltage, max. AC
- 277 V AC
- Contact: Switching Voltage, max. DC
- 30 V DC
- Contact: Switching Capacity (VA)
- 1,385 VA
- Contact: Switching Load (W)
- 150 W
- Contact resistance
- 100 mOhm
- Creepage distance
- 5.5 mm
- Coil design
- monostable
- Coil resistance
- 720 Ohm
- Inductor power
- 113 mW
- Coil: Nominal Voltage DC
- 12 V DC
- Coil: Operating Voltage, max.
- 23.2 V
- Coil: Pick-up voltage
- 9 V
- Coil: Drop-out Voltage
- 0.6 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 4,000 V AC
- Response time
- 6 ms
- Drop-out time
- 3 ms
- Mechanical service life
- 5 x 10^6 operations
- Service life, electrical
- 100,000 operations
- Insulation resistance
- 1.000 MOhm
- Vibration resistance
- 1,5 mm DA
- Impact resistance, functional
- 10 g
- Soldering temperature, max.
- 270°C / 5s
Safety/Certifications
- Approvals
- UL
- VDE
- cUL
- Standards
- VDE 0700, 0631
