AZ8521PS-4.5TR
Zettler PC relay AZ8521 SMD DPDT 2A 4,5VDC 203Ohm 10mmx6,5mmx5,65mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 25 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 900 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 3600 or multiple of 3600)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- AZ8521
- contacts
- DPDT
- Contact: Switching Current (min/typ/max)
- 2 A
- Coil: Nominal Voltage DC
- 4.5 V DC
- Coil resistance
- 203 Ohm
- RoHS-Conform
Specifications
Open all

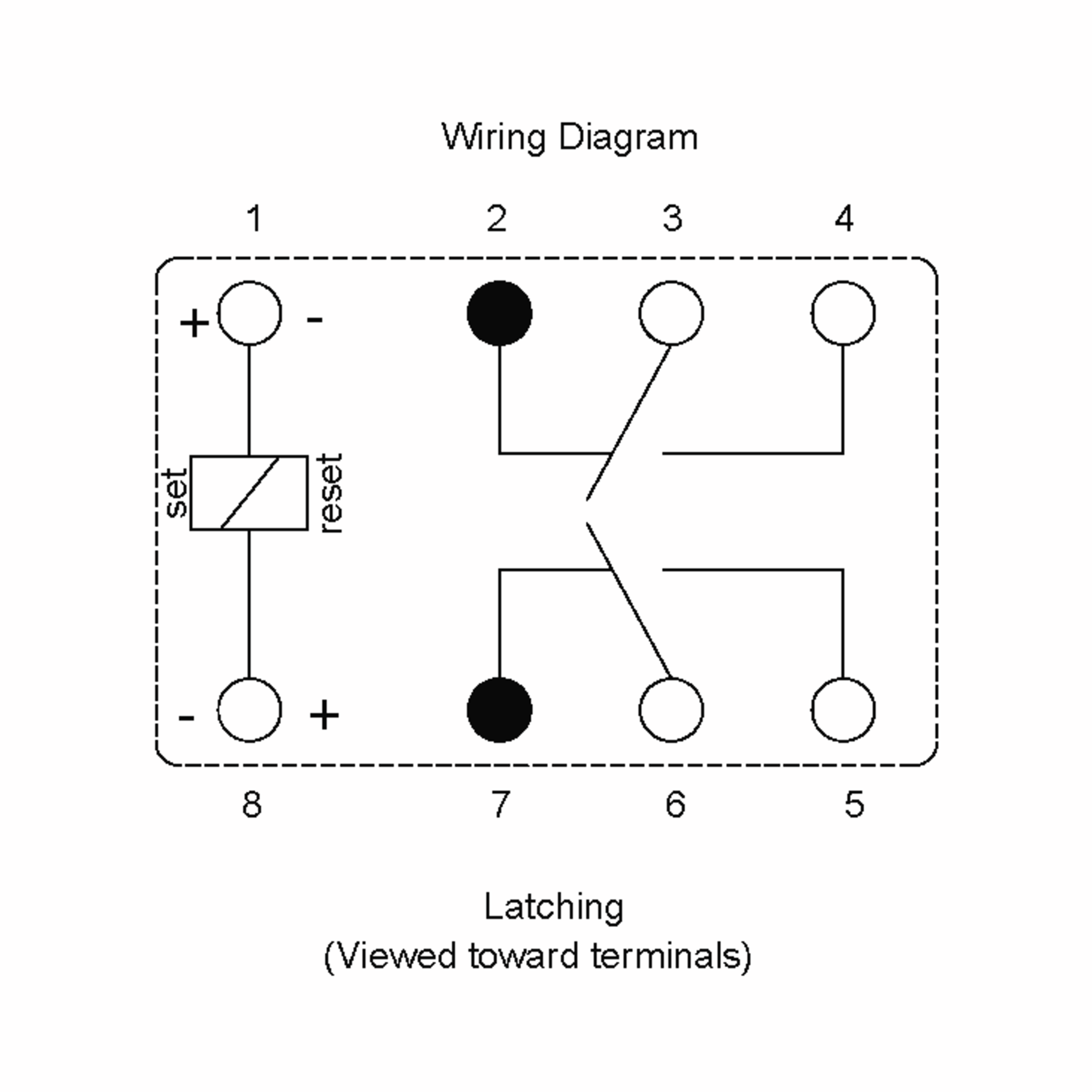

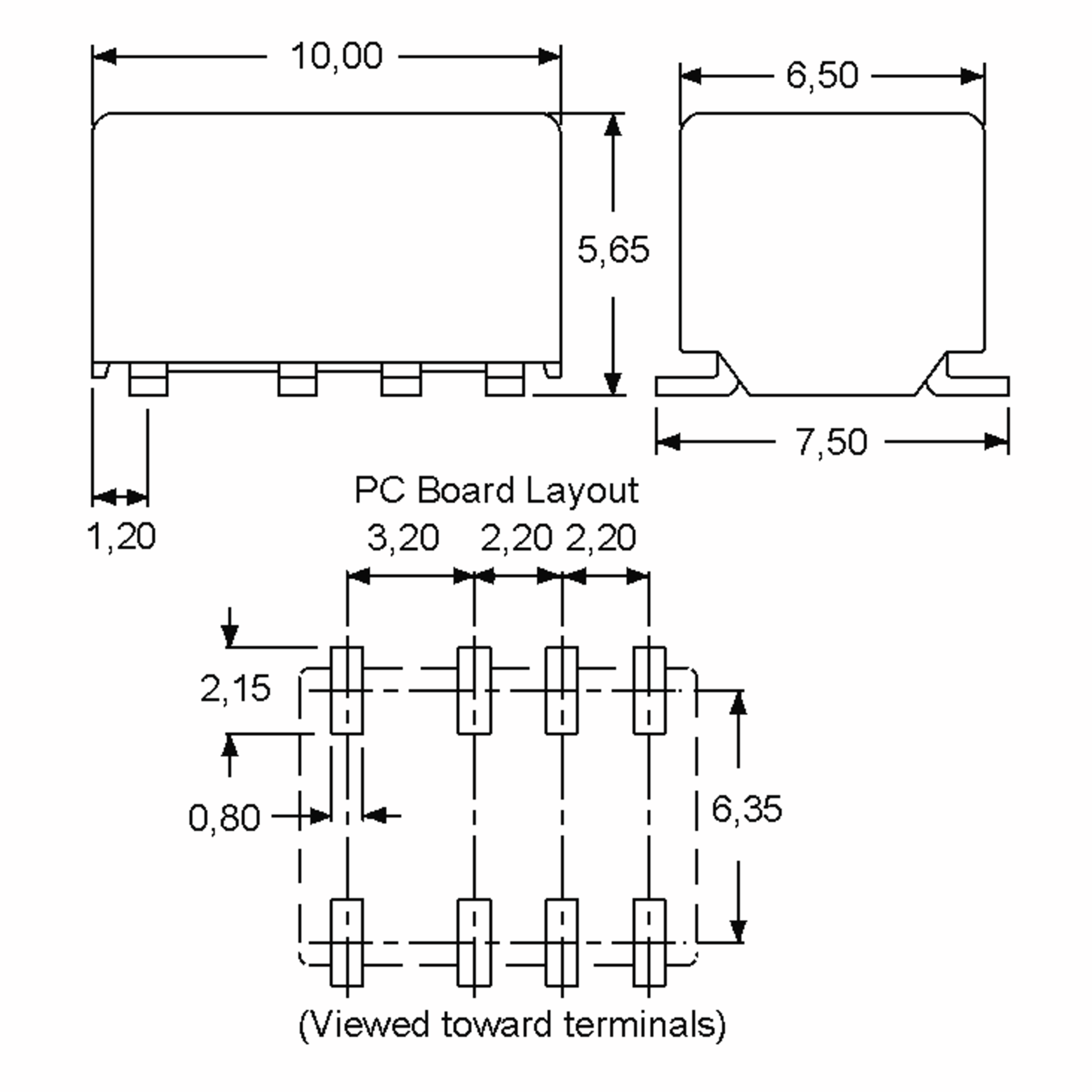

Dimensions and Weights
- Dimension: Length
- 10 mm
- Dimension: Width
- 6.5 mm
- Dimension: Height
- 5.65 mm
- Weight
- 0.8 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 2 A
- Contact: Switching Voltage, max. AC
- 250 V AC
- Contact: Switching Voltage, max. DC
- 220 V DC
- Contact: Switching Capacity (VA)
- 62.5 VA
- Contact: Switching Load (W)
- 60 W
- Contact resistance
- 70 mOhm
- Coil design
- bistable
- Coil resistance
- 203 Ohm
- Inductor power
- 57 mW
- Coil: Nominal Voltage DC
- 4.5 V DC
- Coil: Operating Voltage, min.
- 3.38 V
- Coil: Operating Voltage, max.
- 6.7 V
- Coil: Drop-out Voltage
- 0.45 V
- Test voltage contact/contact
- 1,800 V AC
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 1,600 V AC
- Response time
- 3 ms
- Drop-out time
- 3 ms
- Mechanical service life
- 5 x 10^6 operations
- Service life, electrical
- 10^5 operations
- Insulation resistance
- 1.000 MOhm
- Vibration resistance
- 3,3 mm DA
- Impact resistance, functional
- 75 g
Safety/Certifications
- Approvals
- cULus
