AZ850P2-24

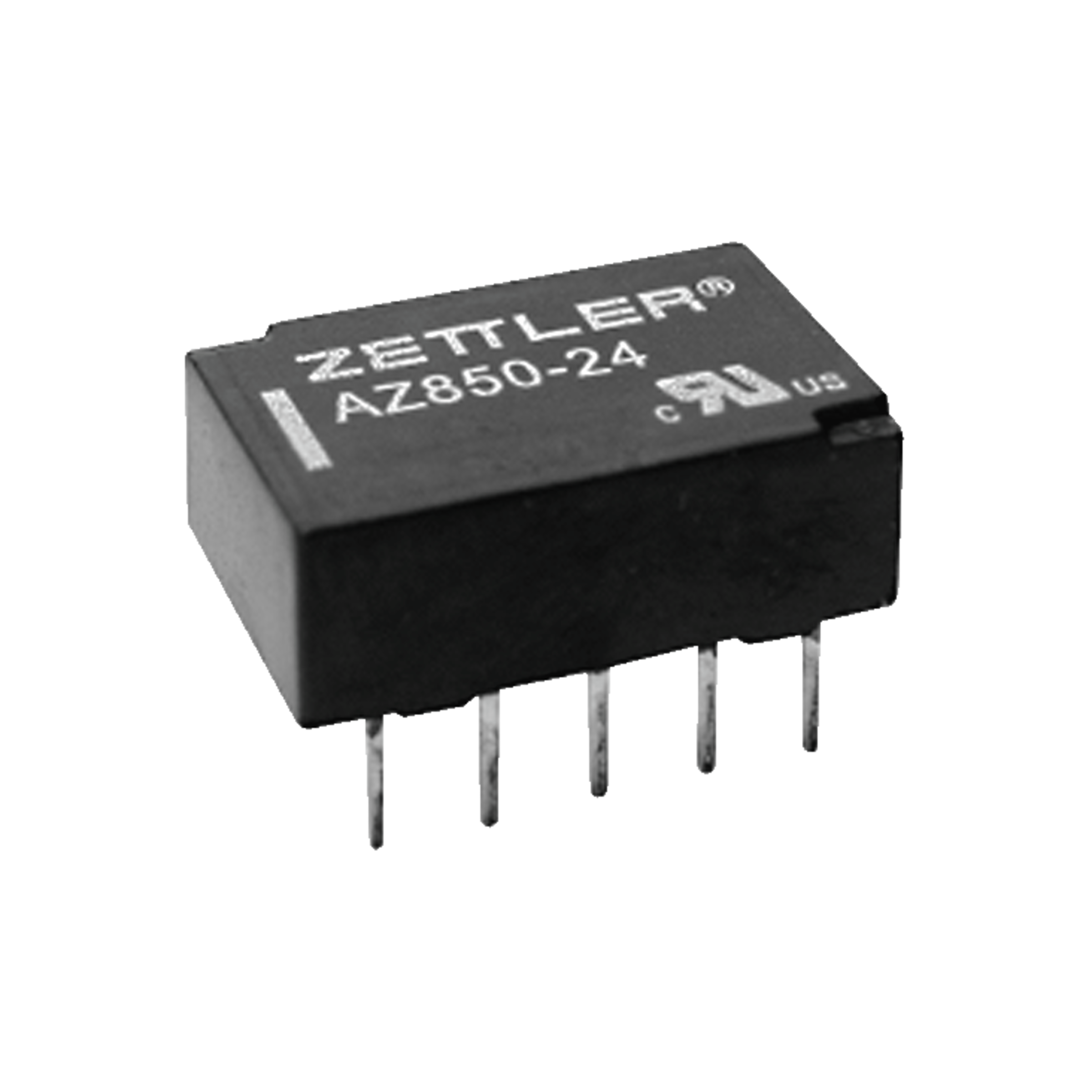

Zettler PC relay AZ850 THT DPDT 1A 24VDC 3.840Ohm 14mmx9mmx5mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Next Stock Receipt
Week 37/2026
930 Pcs.
930 Pcs.
Planned delivery time
Ø 61 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- AZ850
- contacts
- DPDT
- Contact: Switching Current (min/typ/max)
- 1 A
- Coil: Nominal Voltage DC
- 24 V DC
- Coil resistance
- 3,840 Ohm
- RoHS-Conform
Specifications
Open all

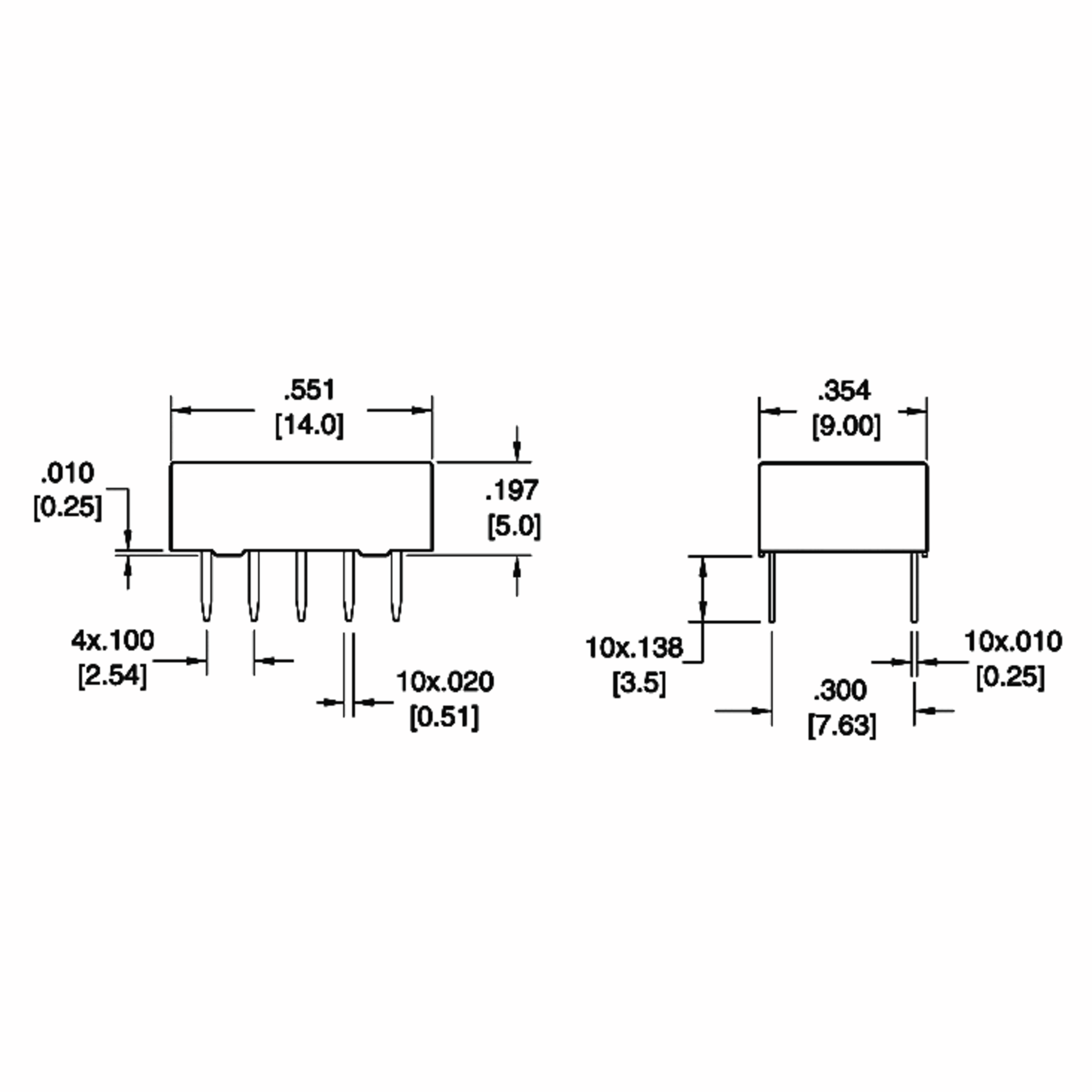

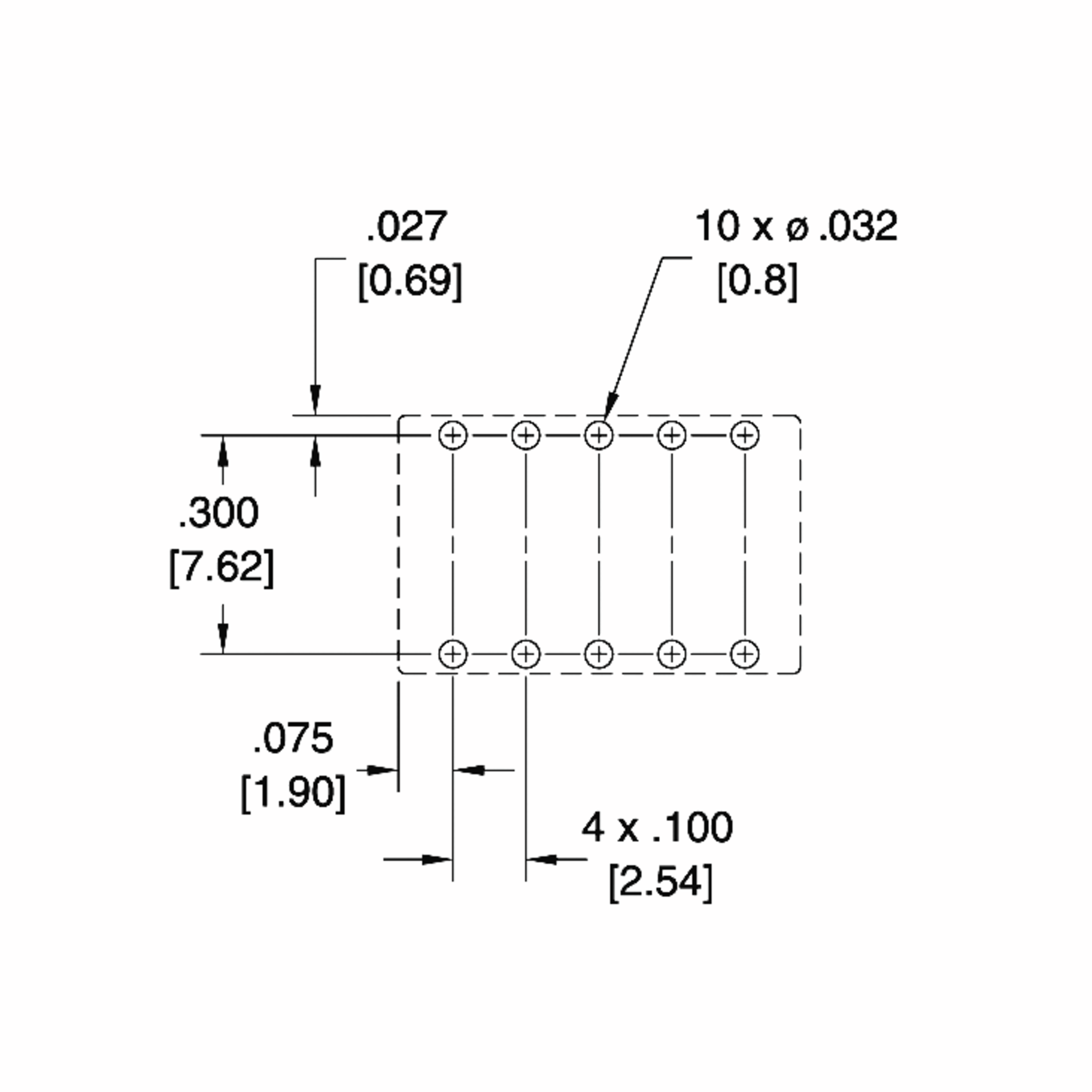

Dimensions and Weights
- Dimension: Length
- 14 mm
- Dimension: Width
- 9 mm
- Dimension: Height
- 5 mm
- Weight
- 1.5 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact design
- Bifurcated crossbar
- Contact: Switching Current (min/typ/max)
- 1 A
- Contact: Switching Voltage, max. AC
- 250 V AC
- Contact: Switching Voltage, max. DC
- 220 V DC
- Contact: Carry Current
- 2 A
- Contact: Switching Capacity (VA)
- 62.5 VA
- Contact: Switching Load (W)
- 30 W
- Contact resistance
- 50 mOhm

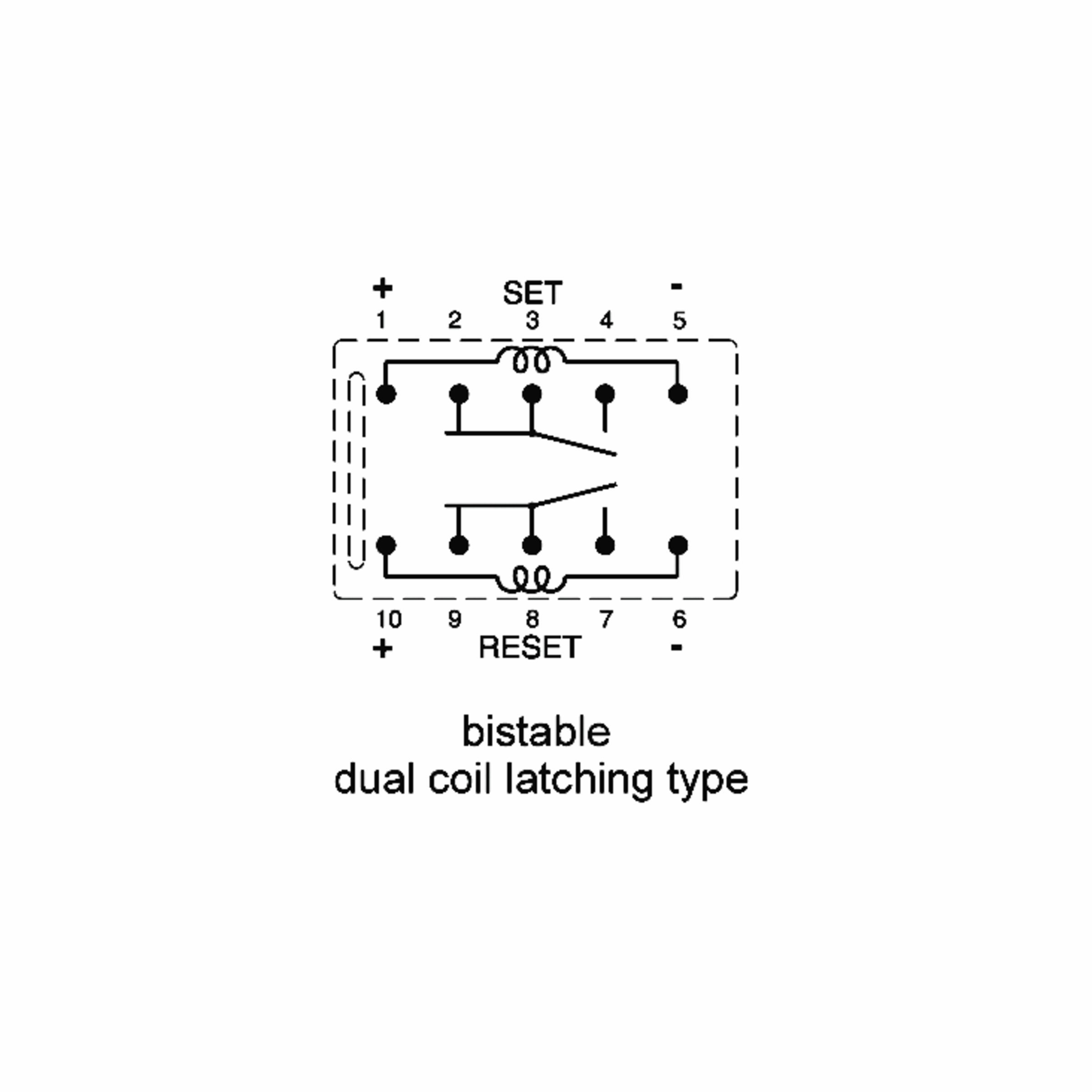

- Coil design
- bistable
- Coil resistance
- 3,840 Ohm
- Inductor power
- 300 mW
- Coil: Nominal Voltage DC
- 24 V DC
- Coil: Operating Voltage, min.
- 18 V
- Coil: Operating Voltage, max.
- 36 V
- Coil: Drop-out Voltage
- 2.4 V
- Test voltage contact/contact
- 1,000 V AC
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 1,000 V AC
- Response time
- 2 ms
- Drop-out time
- 1 ms
- Mechanical service life
- 10^6 operations
- Service life, electrical
- 100 x 10^3 operations
- Insulation resistance
- 1.000 MOhm
- Vibration resistance
- 3,3 mm DA
- Impact resistance, functional
- 50 g
Safety/Certifications
- Approvals
- cULus
- Standards
- FCC Part 68.302
