AZ850-5

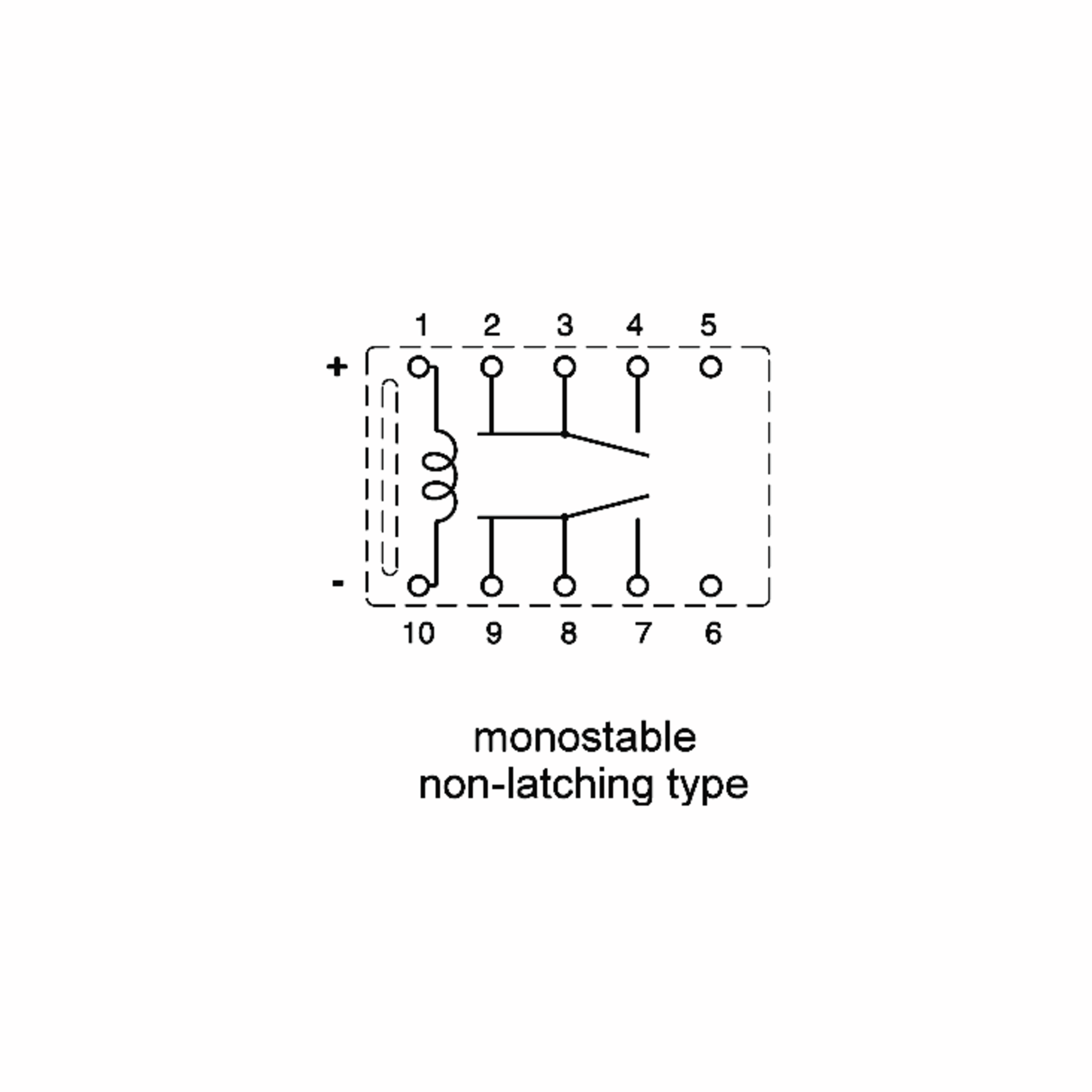

Zettler Signal relay DIP DIL AZ850 THT DPDT 1A 5VDC 178Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
295 Pcs. in stock
Next Stock Receipt
Week 49/2024
1.000 Pcs.
1.000 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Signal relay DIP DIL
- Series
- AZ850
- Rated voltage DC
- 5 V DC
- Switching current
- 1 A
- contacts
- DPDT
- Coil resistance
- 178 Ohm
- Dimension: Length
- 14 mm
- Dimension: Width
- 9 mm
- Dimension: Height
- 5 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 14 mm
- Dimension: Width
- 9 mm
- Dimension: Height
- 5 mm
- Weight
- 1.5 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 5 V DC
- Coil design
- Contact design
- Switching voltage, max. AC
- 250 V AC
- Switching voltage, max. DC
- 220 V DC
- Response voltage
- 3.75 V
- Test voltage contact/contact
- 1,000 V AC
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 1,000 V AC
- Switching current
- 1 A
- Transport Current
- 2 A
- Rated power
- 140 mW
- Switching capacity (VA)
- 62.5 VA
- Switching capacity (W)
- 30 W
- Coil resistance
- 178 Ohm
- Contact resistance
- 50 mOhm
- Insulation resistance
- 1.000 MOhm
- Response time
- 2 ms
- Drop-out time
- 1 ms
- Vibration resistance
- 3,3 mm DA
- Impact resistance, functional
- 50 G
Safety/Certifications
- Approvals
- cULus
- Standards
- FCC Part 68.302
