AZ8462-24

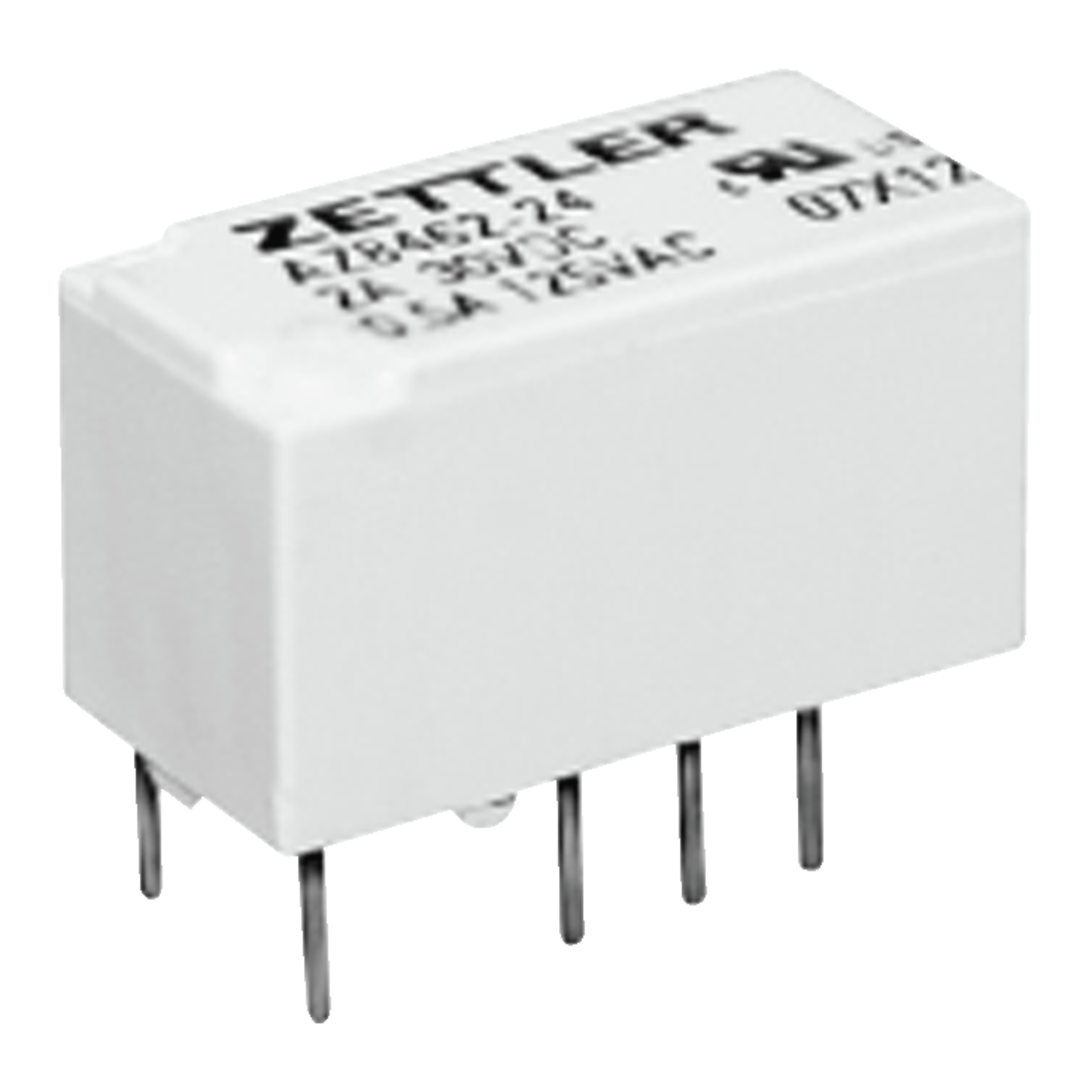

Zettler Signal relay DIP DIL AZ8462 THT DPDT 2A 24VDC 4.114Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1.000 Pcs.
1.000 Pcs.
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 40 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1000 or multiple of 1000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Signal relay DIP DIL
- Series
- AZ8462
- Rated voltage DC
- 24 V DC
- Switching current
- 2 A
- contacts
- DPDT
- Coil resistance
- 4,114 Ohm
- Dimension: Length
- 15.2 mm
- Dimension: Width
- 7.7 mm
- Dimension: Height
- 9.2 mm
- RoHS-Conform
Specifications
Open all

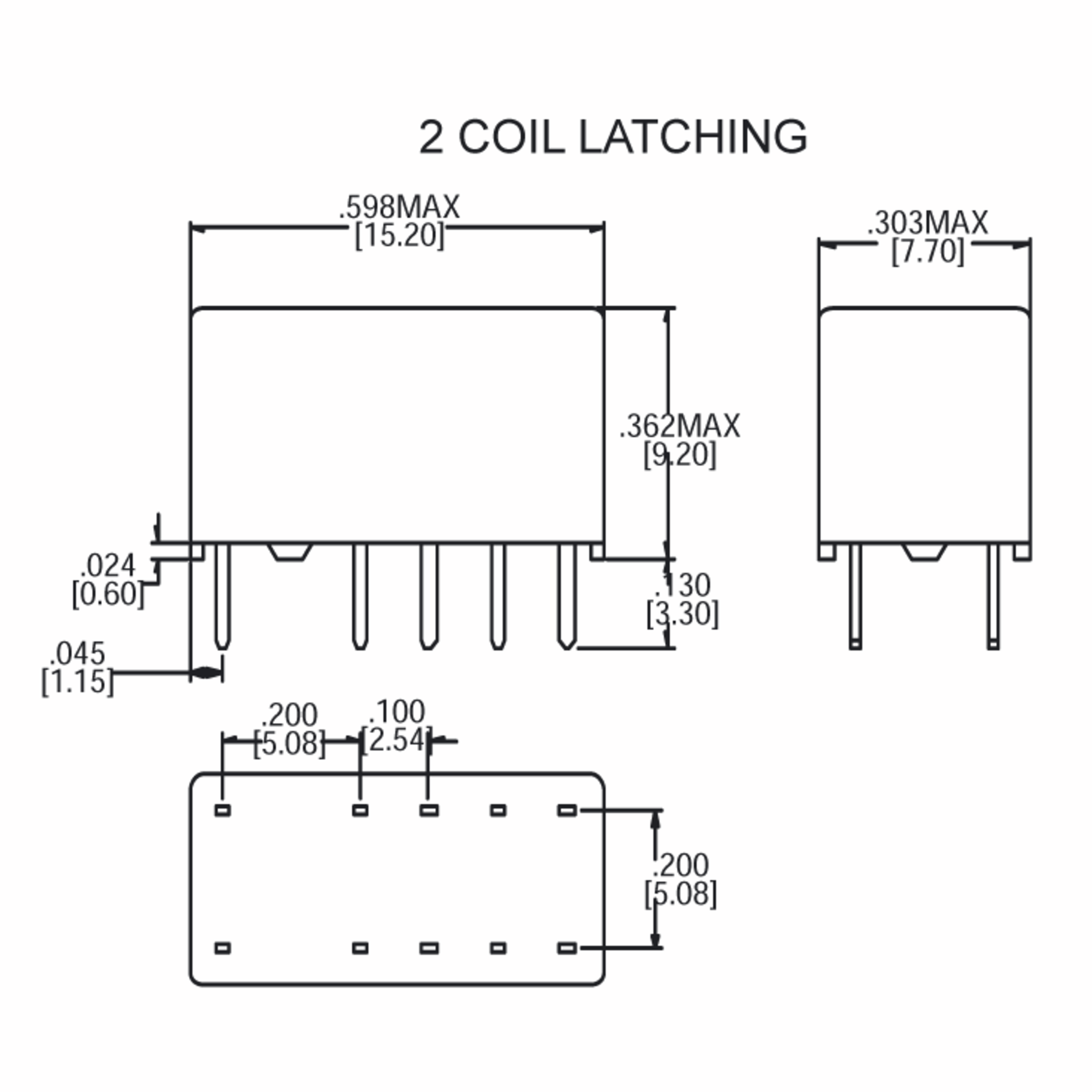

Dimensions and weights
- Dimension: Length
- 15.2 mm
- Dimension: Width
- 7.7 mm
- Dimension: Height
- 9.2 mm
- Weight
- 2.3 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical features
- Rated voltage DC
- 24 V DC
- Coil design
- Contact design
- Switching voltage, max. AC
- 250 V AC
- Switching voltage, max. DC
- 220 V DC
- Response voltage
- 18 V
- Test voltage contact/contact
- 1,500 V AC
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 2,000 V AC
- Switching current
- 2 A
- Rated power
- 140 mW
- Switching capacity (VA)
- 62.5 VA
- Switching capacity (W)
- 60 W
- Coil resistance
- 4,114 Ohm
- Contact resistance
- 50 mOhm
- Insulation resistance
- 1.000 MOhm
- Response time
- 4 ms
- Drop-out time
- 4 ms
- Vibration resistance
- 3,3 mm DA
- Impact resistance, functional
- 75 G
Safety/Certifications
- Approvals
- cULus
