AZ8462-12

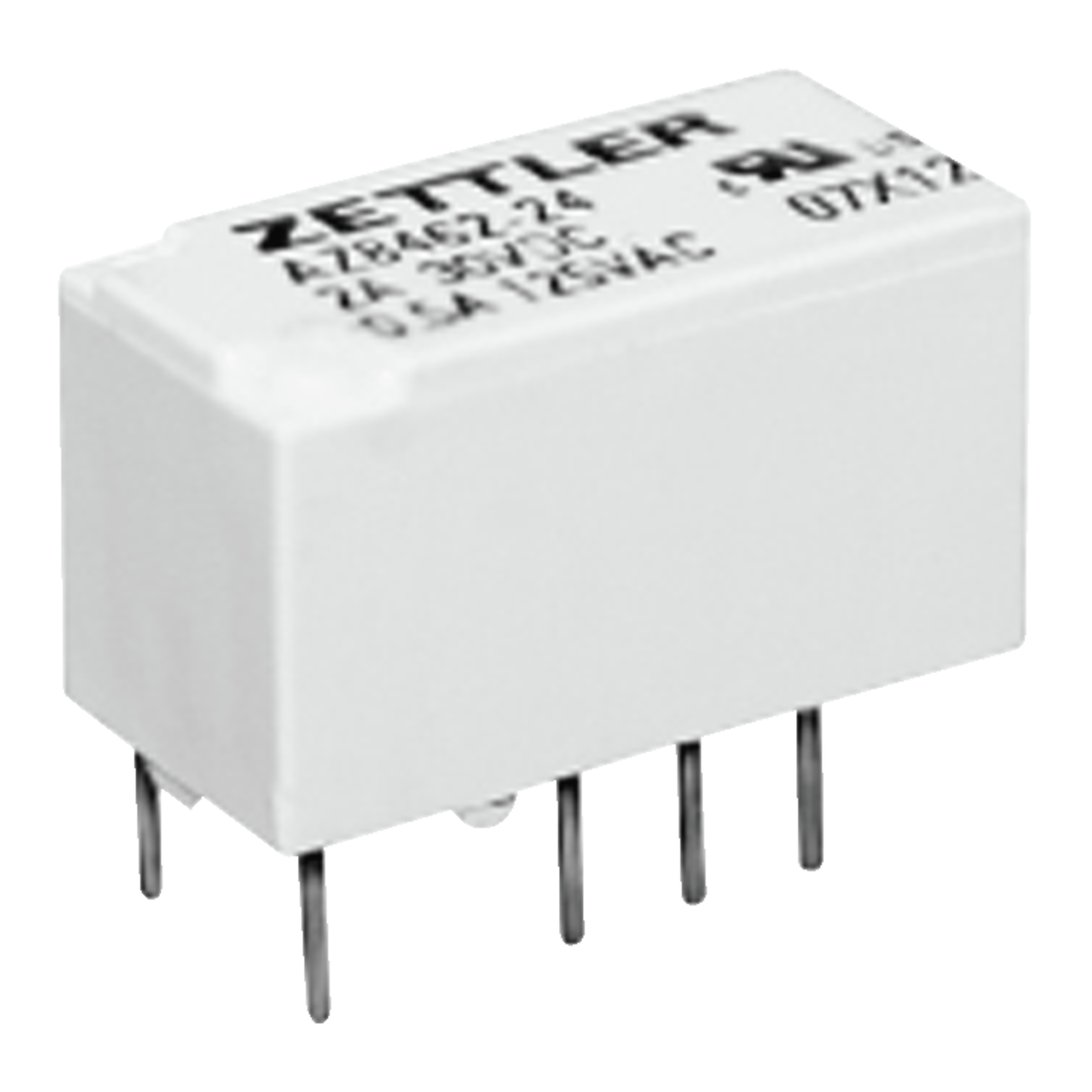

Zettler PC relay AZ8462 THT DPDT 2A 12VDC 1.028Ohm 15,2mmx7,7mmx9,2mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 25 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 40 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1000 or multiple of 1000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- AZ8462
- contacts
- DPDT
- Contact: Switching Current (min/typ/max)
- 2 A
- Coil: Nominal Voltage DC
- 12 V DC
- Coil resistance
- 1,028 Ohm
- RoHS-Conform
Specifications
Open all

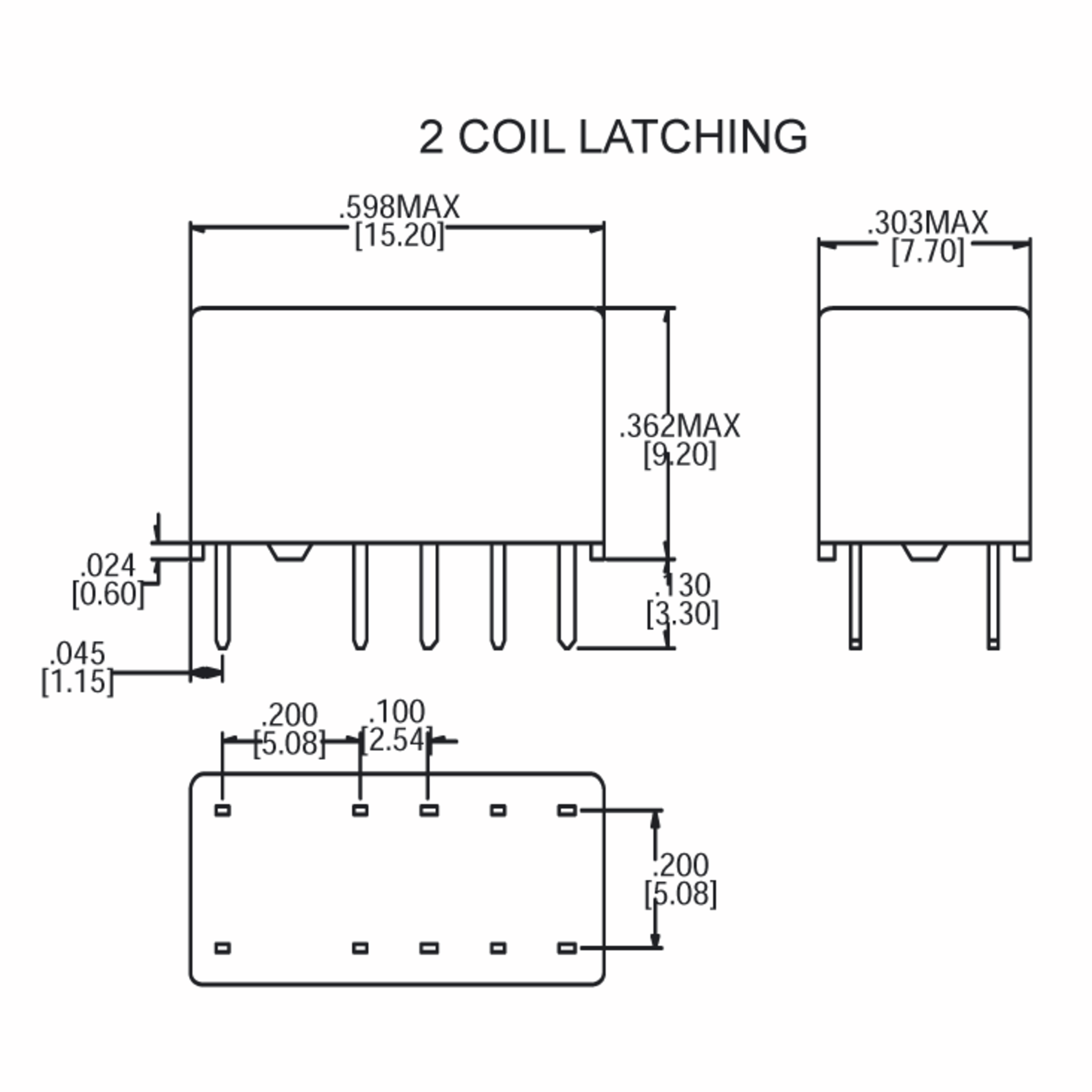

Dimensions and Weights
- Dimension: Length
- 15.2 mm
- Dimension: Width
- 7.7 mm
- Dimension: Height
- 9.2 mm
- Weight
- 2.3 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Contact design
- Bifurcated crossbar
- Contact: Switching Current (min/typ/max)
- 2 A
- Contact: Switching Voltage, max. AC
- 250 V AC
- Contact: Switching Voltage, max. DC
- 220 V DC
- Contact: Switching Capacity (VA)
- 62.5 VA
- Contact: Switching Load (W)
- 60 W
- Contact resistance
- 50 mOhm
- Coil design
- monostable
- Coil resistance
- 1,028 Ohm
- Inductor power
- 79 mW
- Coil: Nominal Voltage DC
- 12 V DC
- Coil: Operating Voltage, min.
- 9 V
- Coil: Operating Voltage, max.
- 18 V
- Coil: Drop-out Voltage
- 1.2 V
- Test voltage contact/contact
- 1,500 V AC
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 2,000 V AC
- Response time
- 4 ms
- Drop-out time
- 4 ms
- Mechanical service life
- 10^8 operations
- Service life, electrical
- 10^5 operations
- Insulation resistance
- 1.000 MOhm
- Vibration resistance
- 3,3 mm DA
- Impact resistance, functional
- 75 g
