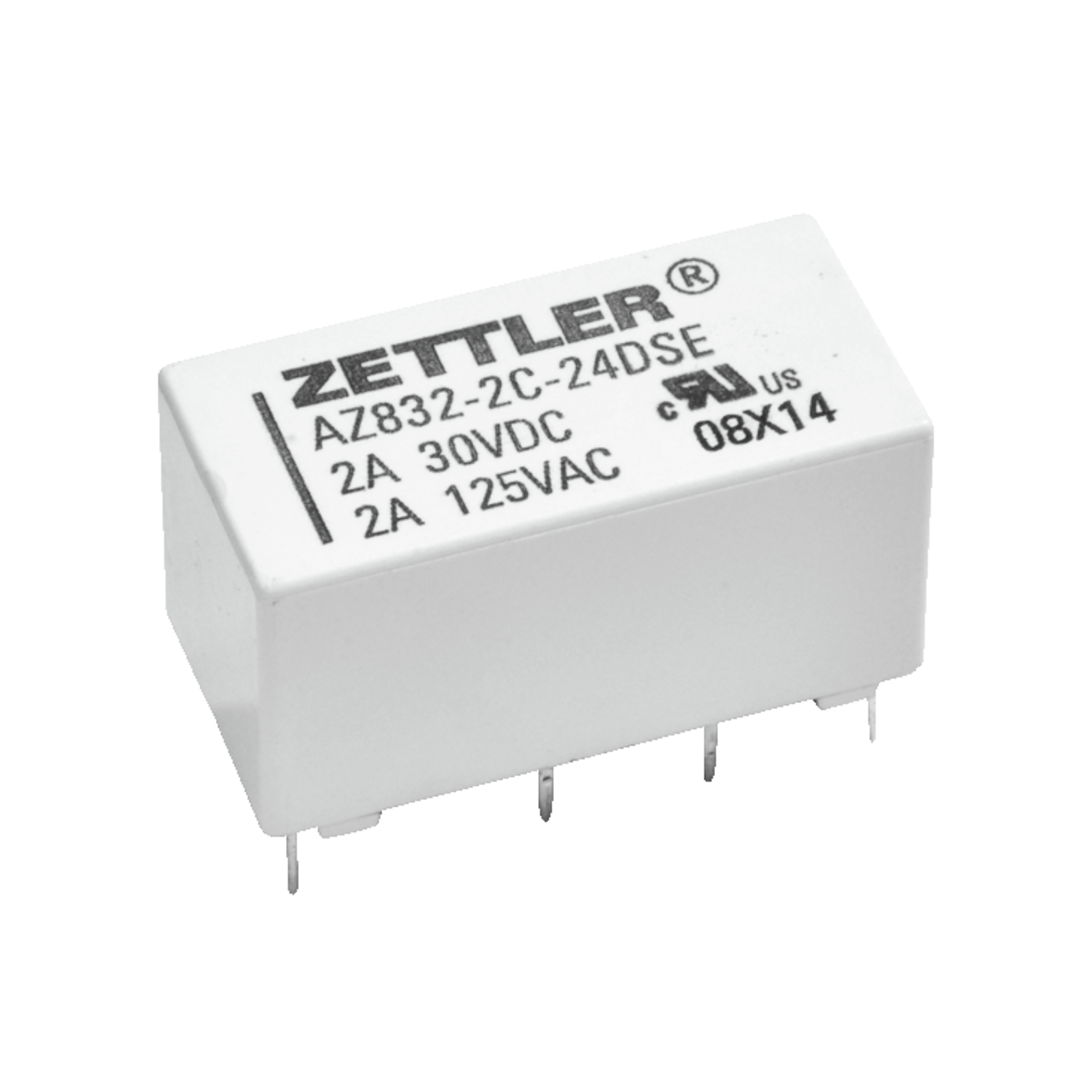

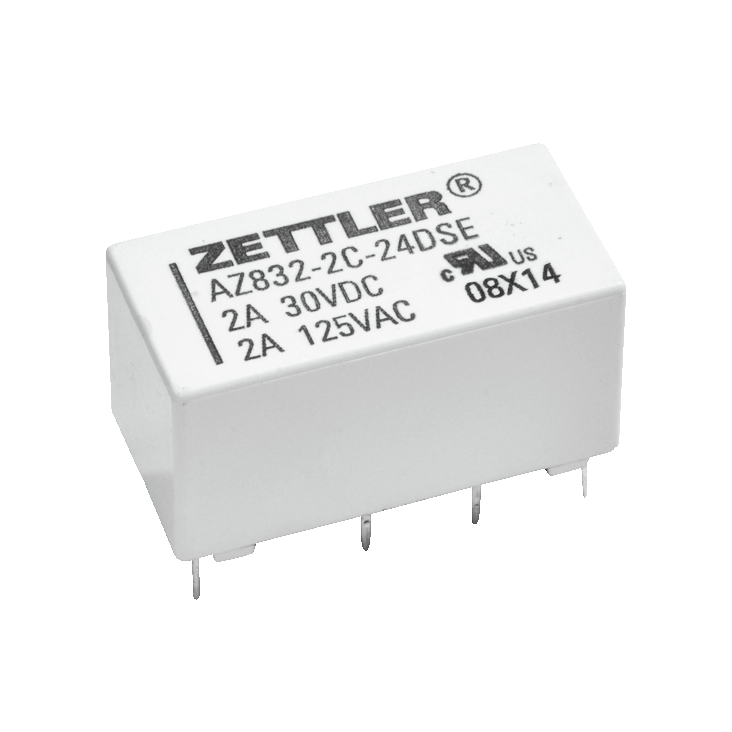

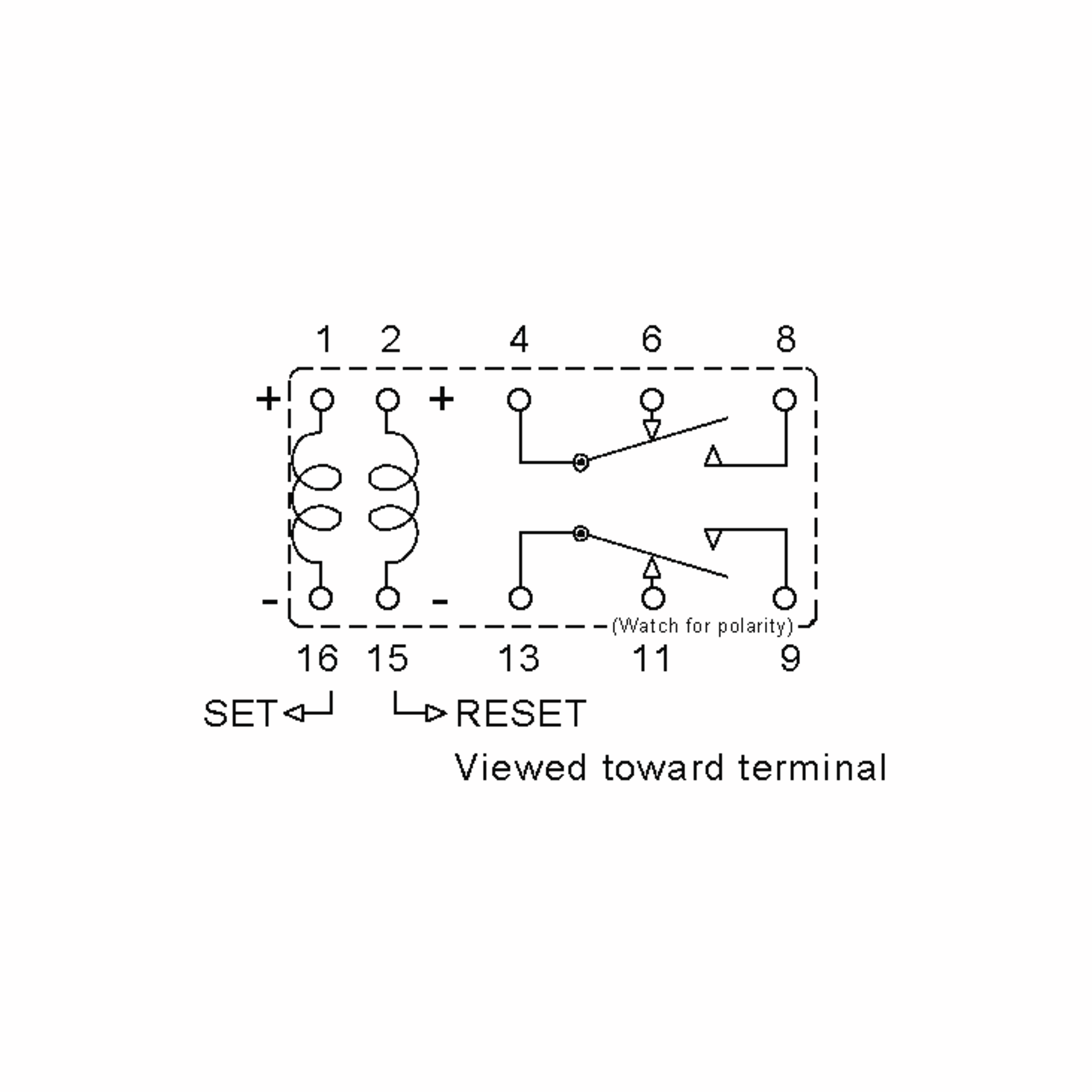

AZ832P2-2C-3DE
Zettler Signal relay DIP DIL AZ832P THT DPDT 3A 3VDC 45Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
120 Pcs. in stock
Planned delivery time
Ø 17 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Signal relay DIP DIL
- Series
- AZ832P
- Rated voltage DC
- 3 V DC
- Switching current
- 3 A
- contacts
- DPDT
- Coil resistance
- 45 Ohm
- Dimension: Length
- 20.2 mm
- Dimension: Width
- 10.2 mm
- Dimension: Height
- 10.6 mm
- RoHS-Conform
Specifications
Open all

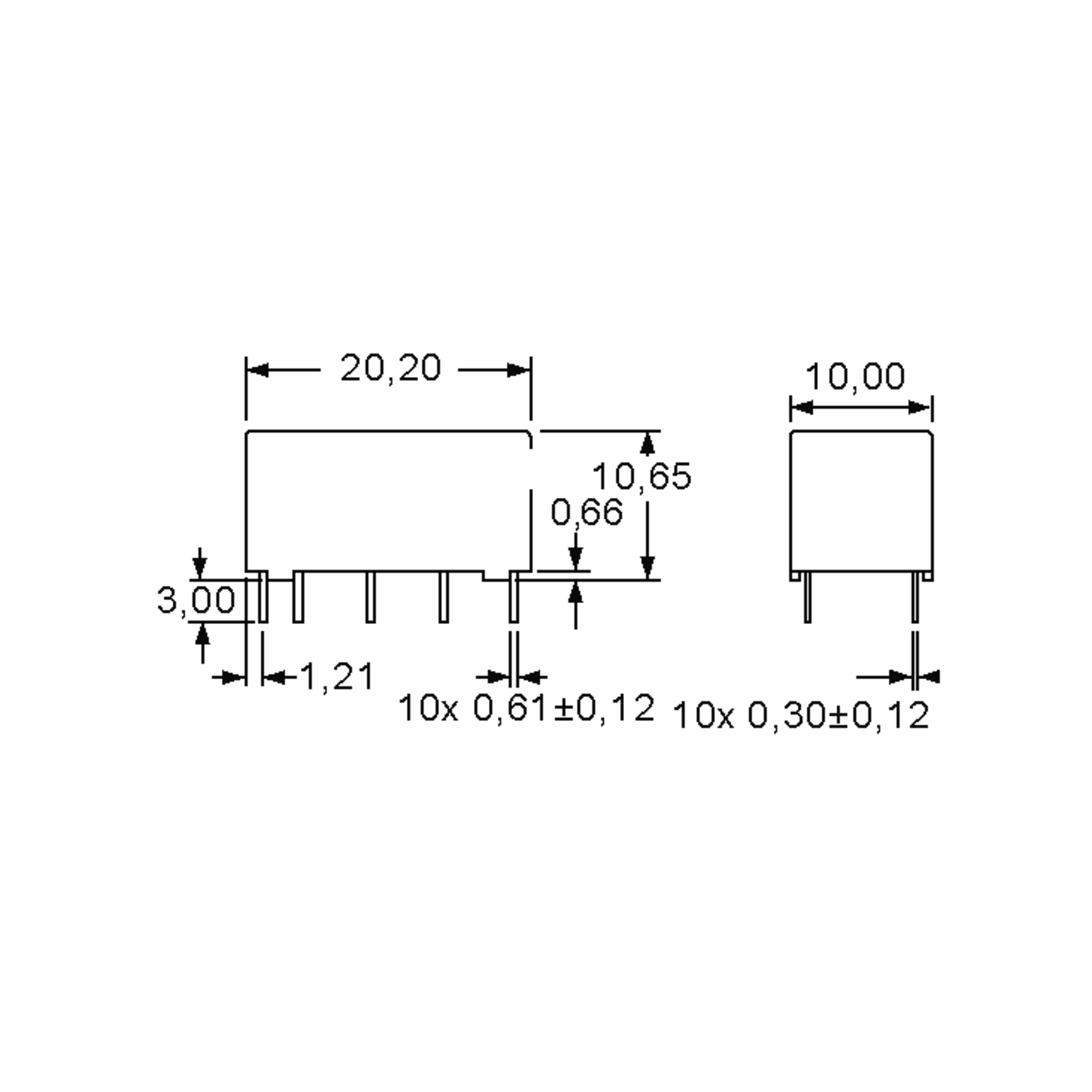

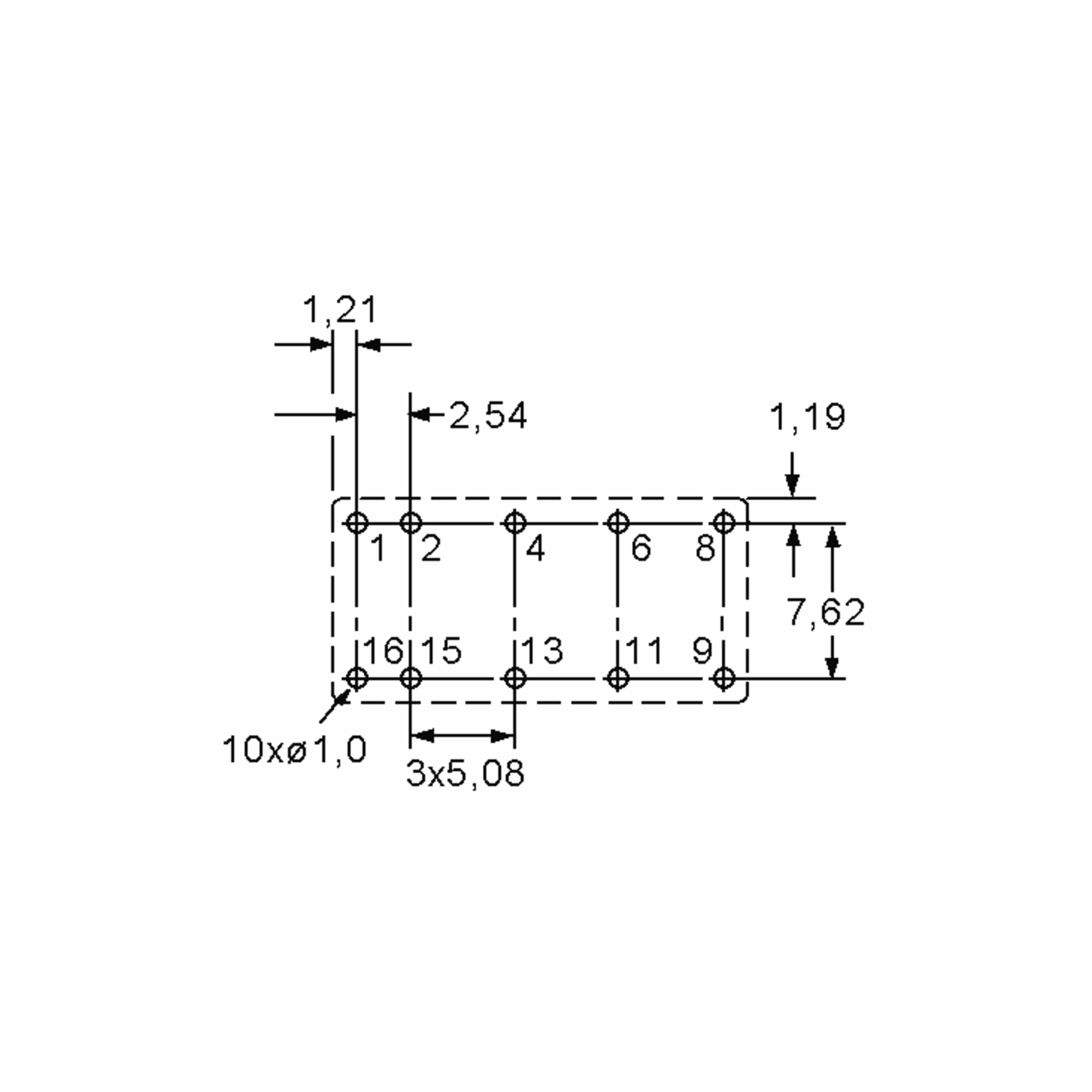

Dimensions and weights
- Dimension: Length
- 20.2 mm
- Dimension: Width
- 10.2 mm
- Dimension: Height
- 10.6 mm
- Weight
- 5 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 3 V DC
- Coil design
- Contact design
- Switching voltage, max. AC
- 125 V AC
- Switching voltage, max. DC
- 30 V DC
- Response voltage
- 2.25 V
- Test voltage contact/contact
- 1,500 V AC
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 1,200 V AC
- Switching current
- 3 A
- Rated power
- 200 mW
- Switching capacity (VA)
- 250 VA
- Switching capacity (W)
- 60 W
- Coil resistance
- 45 Ohm
- Contact resistance
- 100 mOhm
- Insulation resistance
- 1.000 MOhm
- Vibration resistance
- 1,5 mm DA
- Impact resistance, functional
- 50 G
Safety/Certifications
- Approvals
- cULus
- Standards
- FCC Part 68.302, FCC Part 68.304
