AZ764-1CE-230A
Zettler PC relay AZ764 THT SPDT 16A 230VAC 38.500Ohm 29mmx12,7mmx15,7mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
720 Pcs. in stock
Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- AZ764
- contacts

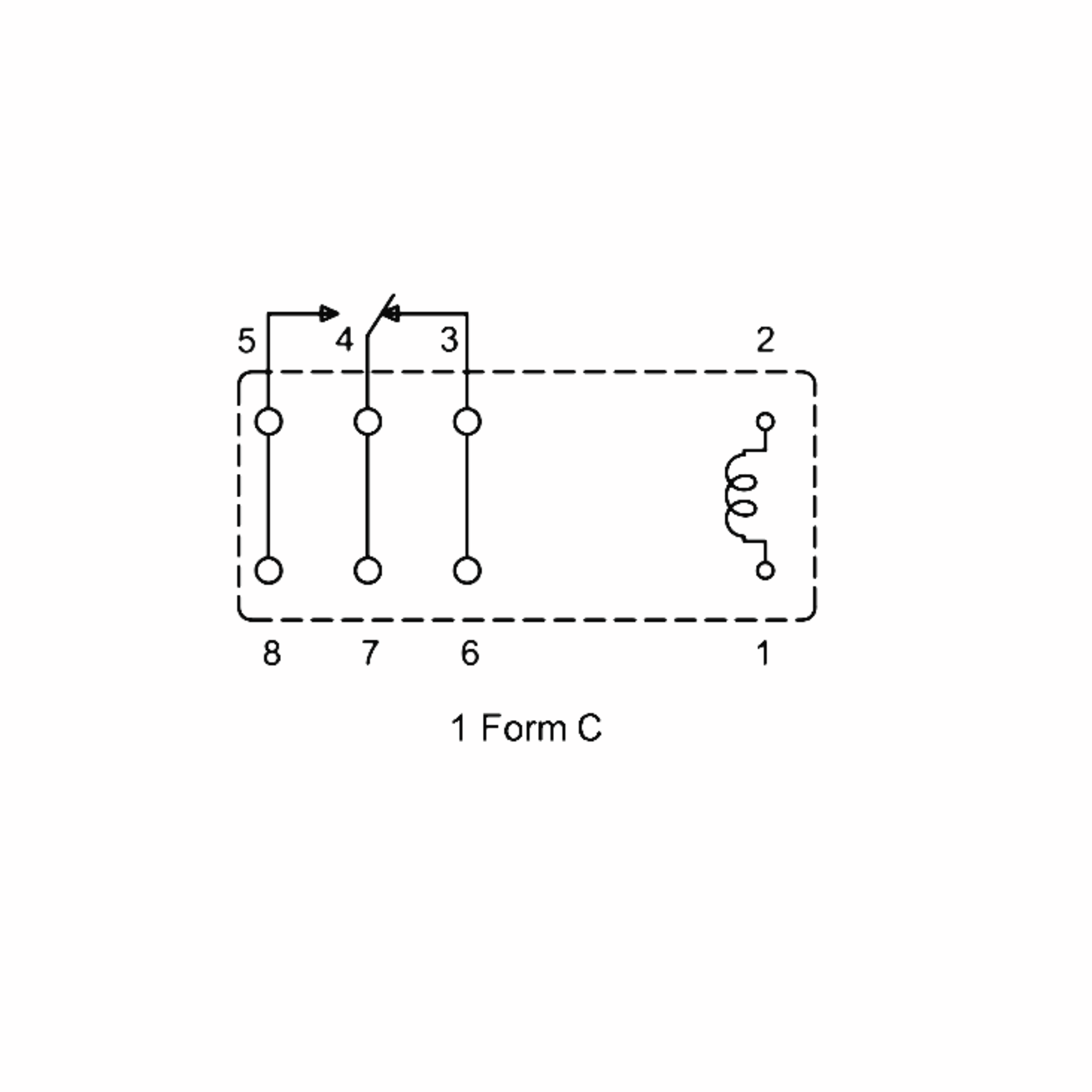

- SPDT
- Contact: Switching Current (min/typ/max)
- 16 A
- Coil: Nominal Voltage AC
- 230 V AC
- Coil resistance
- 38,500 Ohm
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 29 mm
- Dimension: Width
- 12.7 mm
- Dimension: Height
- 15.7 mm
- Weight
- 14 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 16 A
- Contact: Switching Voltage, max. AC
- 400 V AC
- Contact: Switching Voltage, max. DC
- 300 V DC
- Contact: Switching Capacity (VA)
- 5,000 VA
- Contact: Switching Load (W)
- 480 W
- Contact resistance
- 100 mOhm
- Creepage distance
- 10 mm
- Coil design
- monostable
- Coil resistance
- 38,500 Ohm
- Inductor power
- 750 mW
- Coil: Rated Current [mA]
- 3.3 mA
- Coil: Nominal Voltage AC
- 230 V AC
- Coil: Operating Voltage, max.
- 345 V
- Coil: Pick-up voltage
- 172.5 V
- Coil: Drop-out Voltage
- 34.5 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 5,000 V AC
- Response time
- 7 ms
- Drop-out time
- 3 ms
- Mechanical service life
- 30 x 10^6 operations
- Service life, electrical
- 70,000 operations
- Insulation resistance
- 10^5 MOhm
- Vibration resistance
- NO/NC: 20 g / 5 g
- Impact resistance, functional
- 20 g
- Soldering temperature, max.
- 270°C / 5s
Safety/Certifications
- Approvals
- VDE
- cULus
- Standards
- IEC 60730-1, IEC 60335-1
