AZ763-1C-5D
Zettler PC relay AZ763 THT SPDT 12A 5VDC 60Ohm 29mmx12,7mmx15,7mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1000 or multiple of 1000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- AZ763

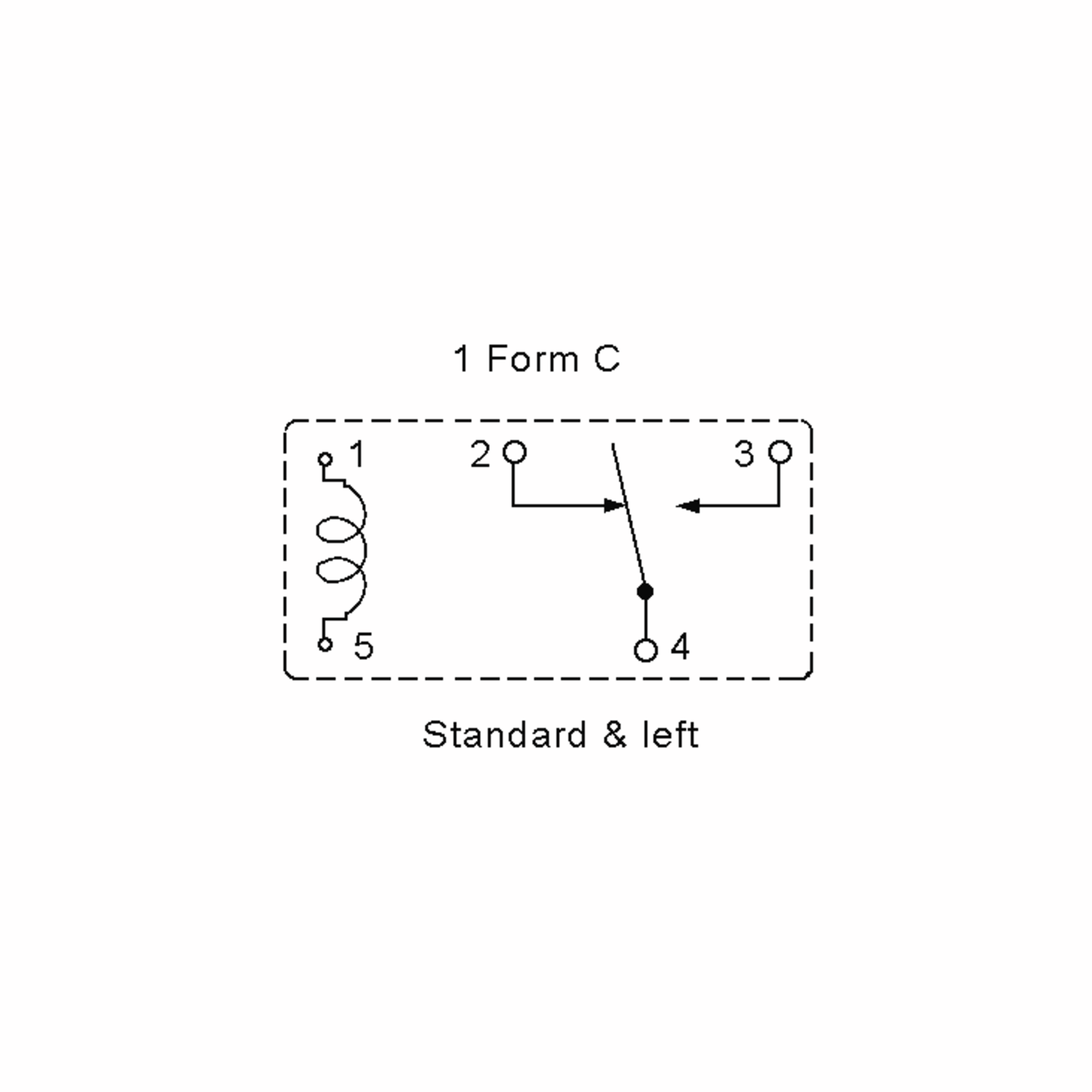

- contacts
- SPDT
- Contact: Switching Current (min/typ/max)
- 12 A
- Coil: Nominal Voltage DC
- 5 V DC
- Coil resistance
- 60 Ohm
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 29 mm
- Dimension: Width
- 12.7 mm
- Dimension: Height
- 15.7 mm
- Weight
- 14 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 12 A
- Contact: Switching Voltage, max. AC
- 400 V AC
- Contact: Switching Voltage, max. DC
- 300 V DC
- Contact: Switching Capacity (VA)
- 3,000 VA
- Contact: Switching Load (W)
- 300 W
- Contact resistance
- 100 mOhm
- Creepage distance
- 10 mm
- Coil design
- monostable
- Coil resistance
- 60 Ohm
- Inductor power
- 400 mW
- Coil: Rated Current [mA]
- 83.3 mA
- Coil: Nominal Voltage DC
- 5 V DC
- Coil: Operating Voltage, max.
- 12.7 V
- Coil: Pick-up voltage
- 3.5 V
- Coil: Drop-out Voltage
- 0.5 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 5,000 V AC
- Response time
- 7 ms
- Drop-out time
- 3 ms
- Mechanical service life
- 30 x 10^6 operations
- Service life, electrical
- 100,000 operations
- Insulation resistance
- 10^5 MOhm
- Vibration resistance
- NO/NC: 20 g / 5 g
- Impact resistance, functional
- 20 g
- Soldering temperature, max.
- 270°C / 5s
Safety/Certifications
- Approvals
- VDE
- cULus
- Standards
- IEC 60730-1, IEC 60335-1
