AZ763-1A-24D
Zettler Power relay AZ763 THT SPST-NO 12A 24VDC 1.440Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
430 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Power relay
- Series
- AZ763
- Rated current
- 16,7 mA
- Rated voltage DC
- 24 V DC
- Switching current
- 12 A

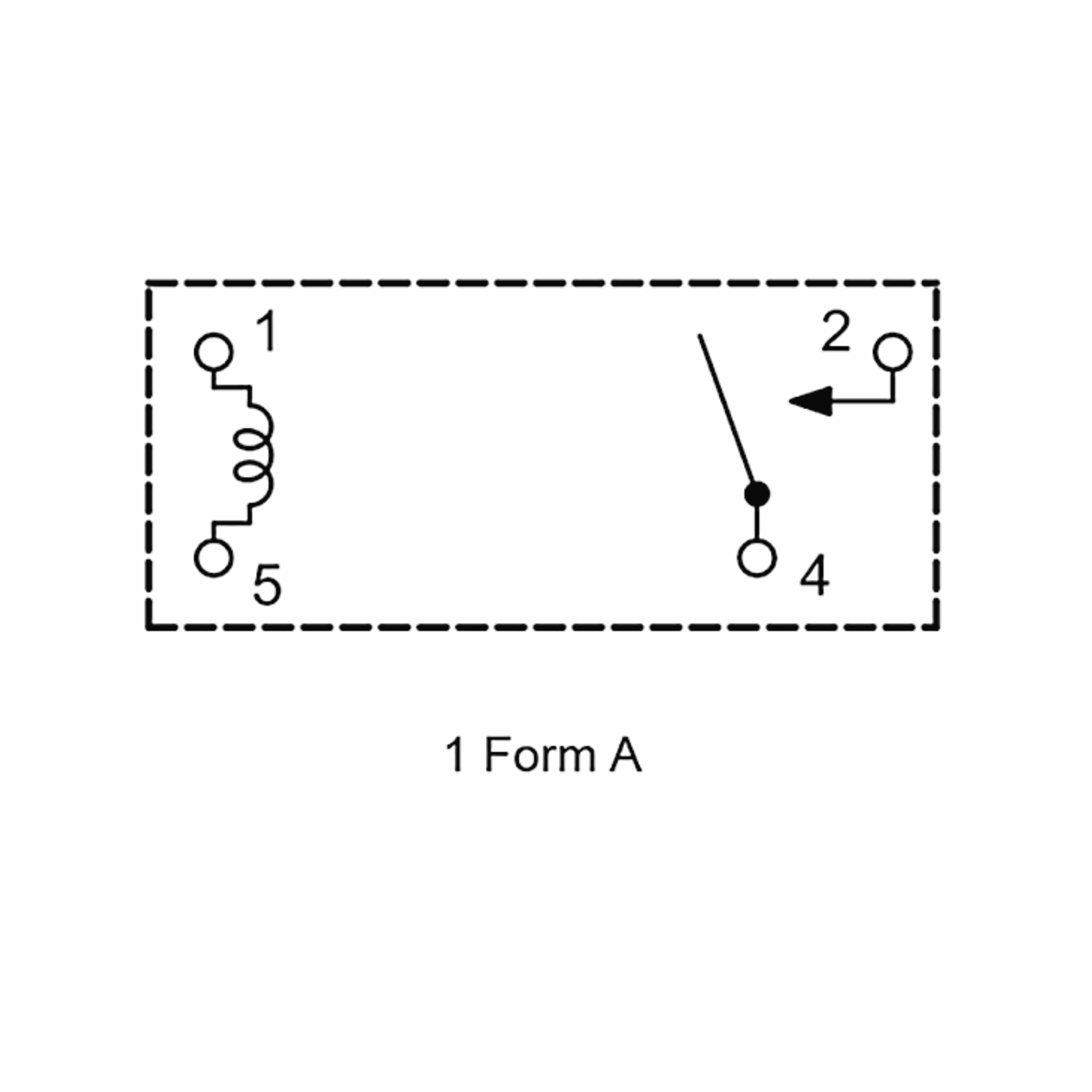

- contacts
- SPST-NO
- Coil resistance
- 1,440 Ohm
- Dimension: Length
- 29 mm
- Dimension: Width
- 12.7 mm
- Dimension: Height
- 15.7 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 29 mm
- Dimension: Width
- 12.7 mm
- Dimension: Height
- 15.7 mm
- Weight
- 14 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 24 V DC
- Coil design
- Switching voltage, max. AC
- 400 V AC
- Switching voltage, max. DC
- 300 V DC
- Response voltage
- 16.8 V
- Operating voltage, max.
- 61.2 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 5,000 V AC
- Creepage distance
- 10 mm
- Rated current
- 16,7 mA
- Switching current
- 12 A
- Rated power
- 400 mW
- Switching capacity (VA)
- 3,000 VA
- Switching capacity (W)
- 300 W
- Coil resistance
- 1,440 Ohm
- Contact resistance
- 100 mOhm
- Insulation resistance
- 10^5 MOhm
- Response time
- 7 ms
- Drop-out time
- 3 ms
- Vibration resistance
- NO/NC: 20 G / 5 G
- Impact resistance, functional
- 20 G
Safety/Certifications
- Approvals
- VDE
- cULus
- Standards
- IEC 60730-1, IEC 60335-1
