AZ742-2C-6D
Zettler Power relay AZ742 THT DPDT 8A 6VDC 90Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1.000 Pcs.
1.000 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1000 or multiple of 1000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Power relay
- Series
- AZ742
- Rated voltage DC
- 6 V DC
- Switching current
- 8 A

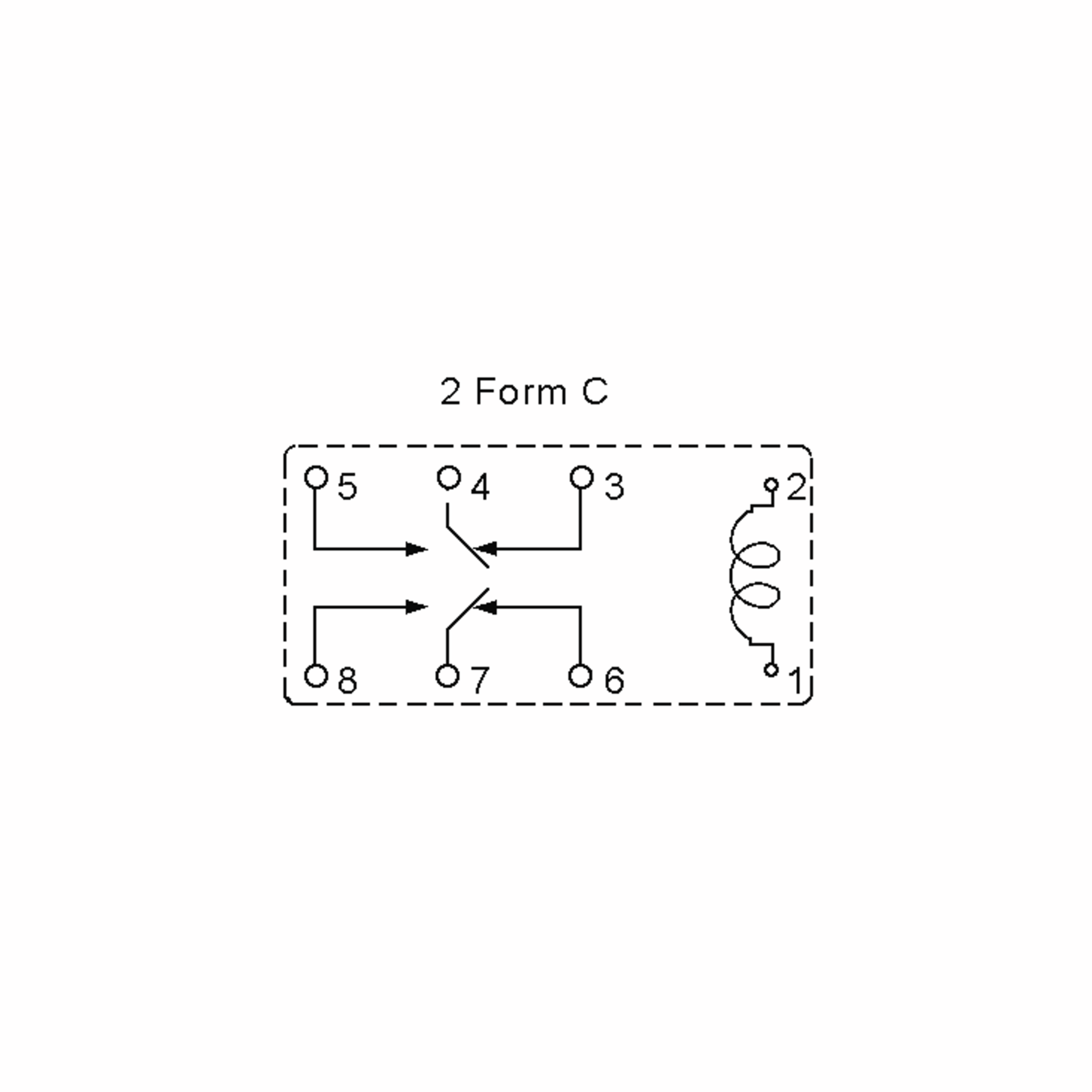

- contacts
- DPDT
- Coil resistance
- 90 Ohm
- Dimension: Length
- 29 mm
- Dimension: Width
- 12.7 mm
- Dimension: Height
- 15.7 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 29 mm
- Dimension: Width
- 12.7 mm
- Dimension: Height
- 15.7 mm
- Weight
- 14 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 6 V DC
- Coil design
- Switching voltage, max. AC
- 400 V AC
- Switching voltage, max. DC
- 300 V DC
- Response voltage
- 4.2 V
- Operating voltage, max.
- 15.3 V
- Test voltage contact/contact
- 2,500 V AC
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 5,000 V AC
- Creepage distance
- 10 mm
- Switching current
- 8 A
- Rated power
- 400 mW
- Switching capacity (VA)
- 2,000 VA
- Switching capacity (W)
- 240 W
- Coil resistance
- 90 Ohm
- Contact resistance
- 100 mOhm
- Insulation resistance
- 100.000 MOhm
- Response time
- 7 ms
- Drop-out time
- 3 ms
- Vibration resistance
- 5 G
- Impact resistance, functional
- 20 G
Safety/Certifications
- Approvals
- VDE
- cULus
- Standards
- EN 60730-1 (VDE 0631, Teil 1), EN 60335-1 (VDE 0700, Teil 1)
