AZ2800-2AE-240A5

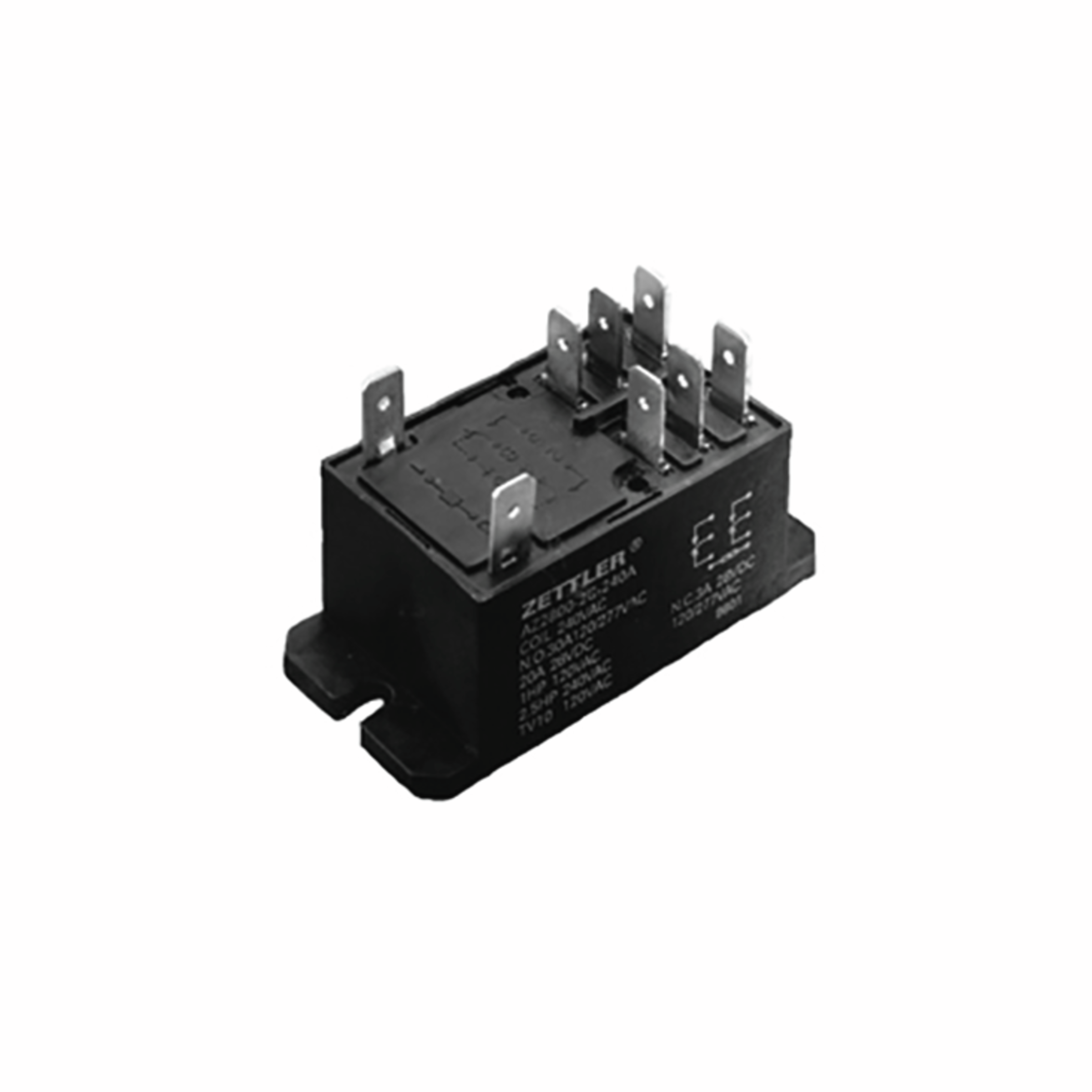

Zettler PC relay AZ2800 THT DPST-NO 40A 240VAC 4.500Ohm 59,7mmx34,5mmx26,4mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Next Stock Receipt
Week 32/2026
290 Pcs.
290 Pcs.
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- AZ2800

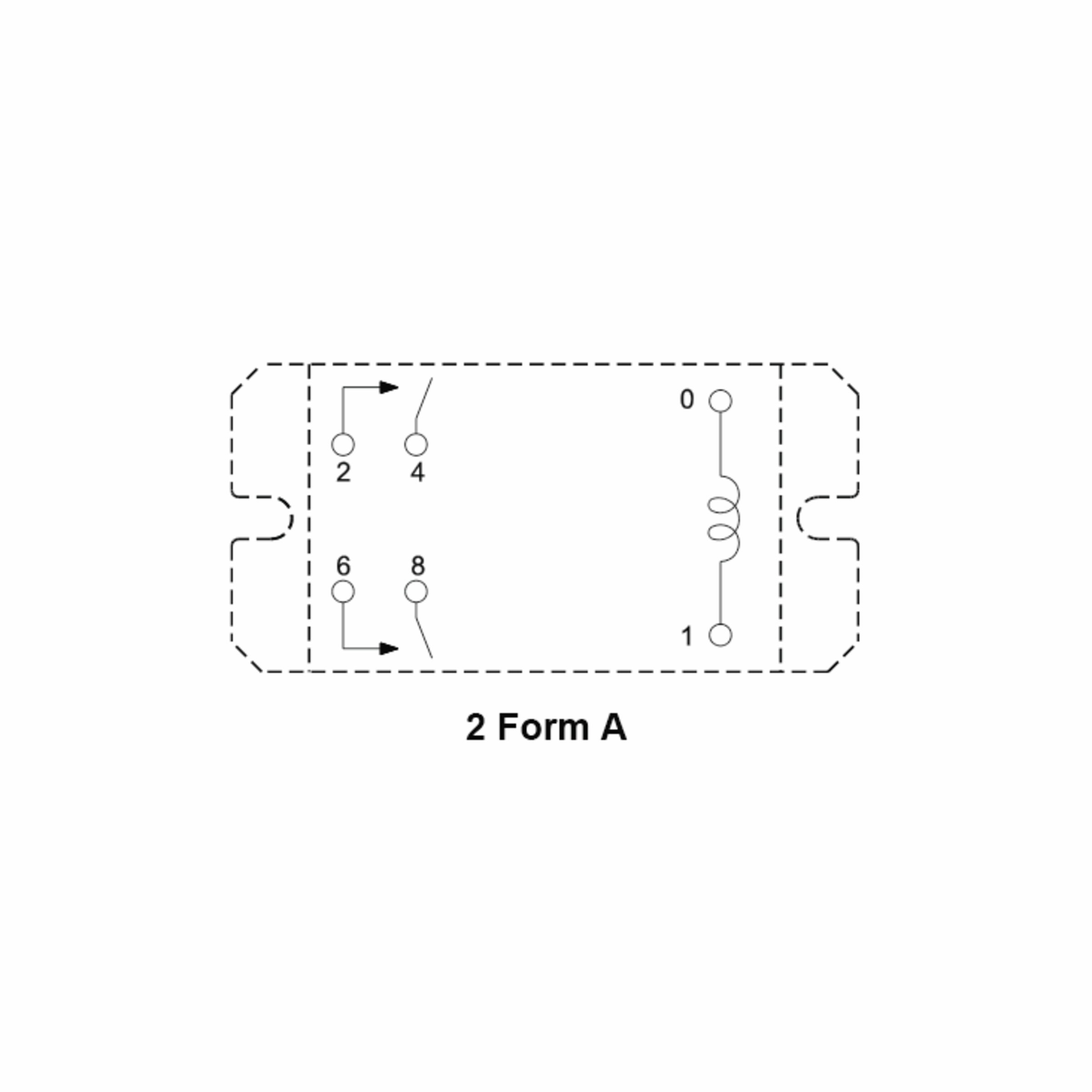

- contacts
- DPST-NO
- Contact: Switching Current (min/typ/max)
- 40 A
- Coil: Nominal Voltage AC
- 240 V AC
- Coil resistance
- 4,500 Ohm
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 59.7 mm
- Dimension: Width
- 34.5 mm
- Dimension: Height
- 26.4 mm
- Weight
- 86 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 65 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 40 A
- Contact: Switching Voltage, max. AC
- 600 V AC
- Contact: Switching Voltage, max. DC
- 30 V DC
- Contact: Switching Capacity (VA)
- 11,080 VA
- Contact: Switching Load (W)
- 1,200 W
- Contact resistance
- 50 mOhm
- Coil design
- monostable
- Coil resistance
- 4,500 Ohm
- Inductor power
- 4 mW
- Coil: Nominal Voltage AC
- 240 V AC
- Coil: Operating Voltage, min.
- 192 V
- Coil: Operating Voltage, max.
- 264 V
- Coil: Drop-out Voltage
- 48 V
- Test voltage contact/contact
- 2,000 V AC
- Test voltage open contacts
- 1,500 V AC
- Test voltage coil/contact
- 4,000 V AC
- Response time
- 15 ms
- Drop-out time
- 10 ms
- Mechanical service life
- 50 x 10^6 operations
- Service life, electrical
- 100,000 operations
- Insulation resistance
- 1.000 MOhm
- Vibration resistance
- 1,65 mm DA
- Impact resistance, functional
- 10 g
- Soldering temperature, max.
- 270°C / 5s
Safety/Certifications
- Approvals
- VDE
- cULus
