AZ2800-2A-240A5E
Zettler PC relay AZ2800 Flange mounting DPST-NO 40A 240VAC 4.500Ohm 59,7mmx34,5mmx26,4mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 18.06.2025
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1000 or multiple of 1000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- AZ2800

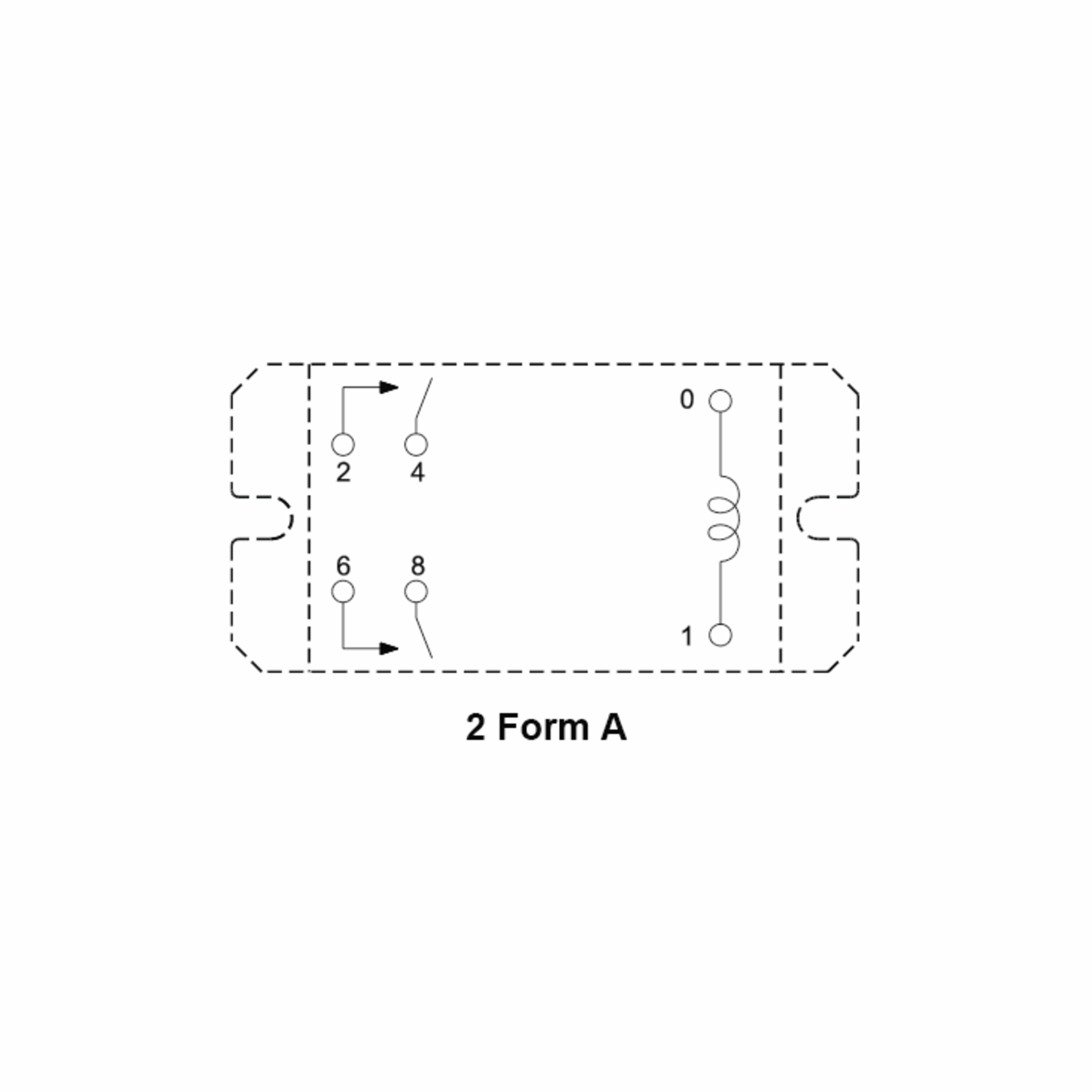

- contacts
- DPST-NO
- Contact: Switching Current (min/typ/max)
- 40 A
- Coil: Nominal Voltage AC
- 240 V AC
- Coil resistance
- 4,500 Ohm
- RoHS-Conform
Specifications
Open all

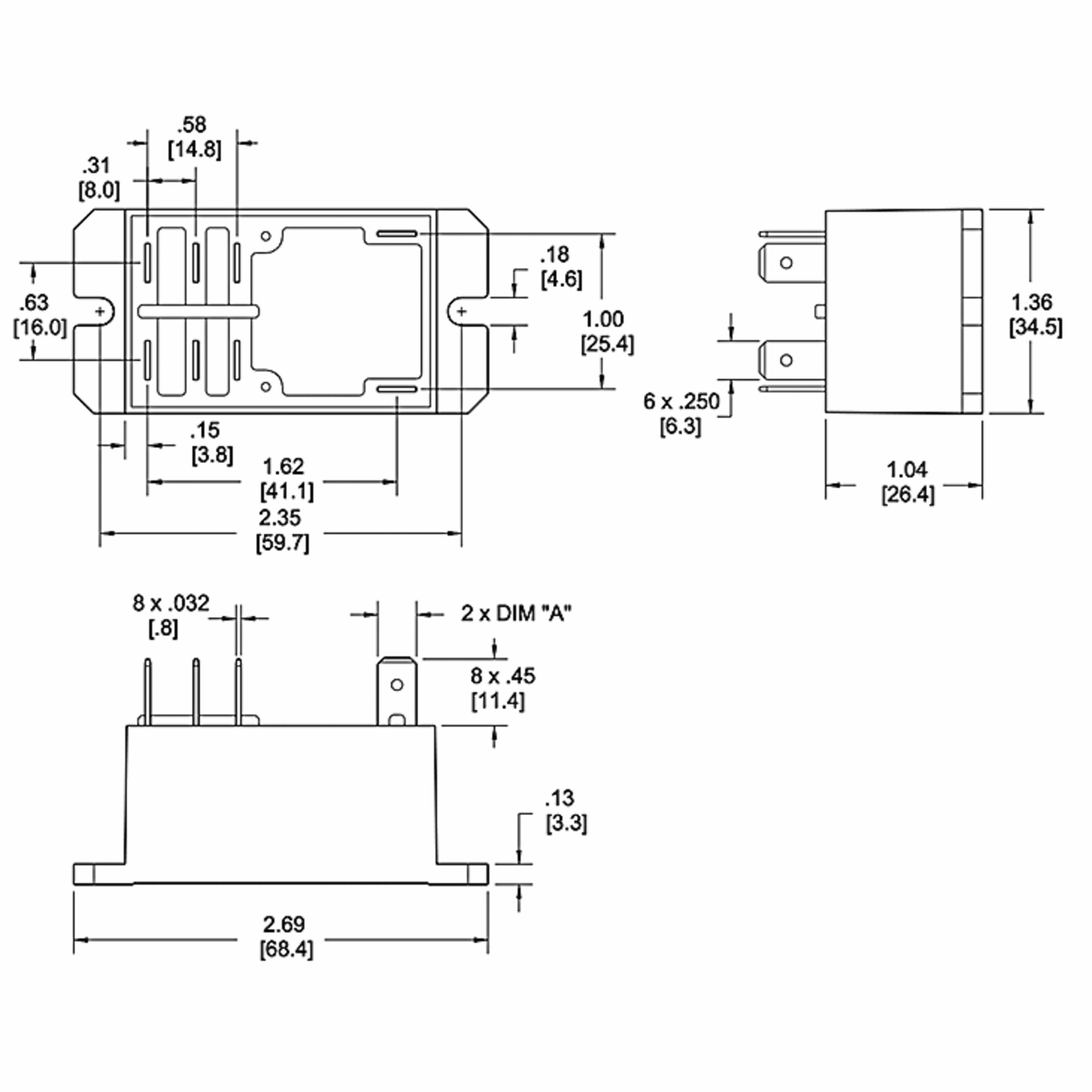

Dimensions and Weights
- Dimension: Length
- 59.7 mm
- Dimension: Width
- 34.5 mm
- Dimension: Height
- 26.4 mm
- Weight
- 86 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 65 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 40 A
- Contact: Switching Voltage, max. AC
- 600 V AC
- Contact: Switching Voltage, max. DC
- 30 V DC
- Contact: Switching Capacity (VA)
- 11,080 VA
- Contact: Switching Load (W)
- 1,200 W
- Contact resistance
- 50 mOhm
- Coil design
- monostable
- Coil resistance
- 4,500 Ohm
- Inductor power
- 4 mW
- Coil: Nominal Voltage AC
- 240 V AC
- Coil: Operating Voltage, min.
- 192 V
- Coil: Operating Voltage, max.
- 264 V
- Coil: Drop-out Voltage
- 48 V
- Test voltage contact/contact
- 2,000 V AC
- Test voltage open contacts
- 1,500 V AC
- Test voltage coil/contact
- 4,000 V AC
- Response time
- 15 ms
- Drop-out time
- 10 ms
- Mechanical service life
- 50 x 10^6 operations
- Service life, electrical
- 100,000 operations
- Insulation resistance
- 1.000 MOhm
- Vibration resistance
- 1,65 mm DA
- Impact resistance, functional
- 10 g
- Soldering temperature, max.
- 270°C / 5s
Safety/Certifications
- Approvals
- VDE
- cULus
Conformity
- REACH Notice
- REACh Art. 33: contains cadmium oxide CAS# 1306-19-0
