AZ2501P2-1A-12DE

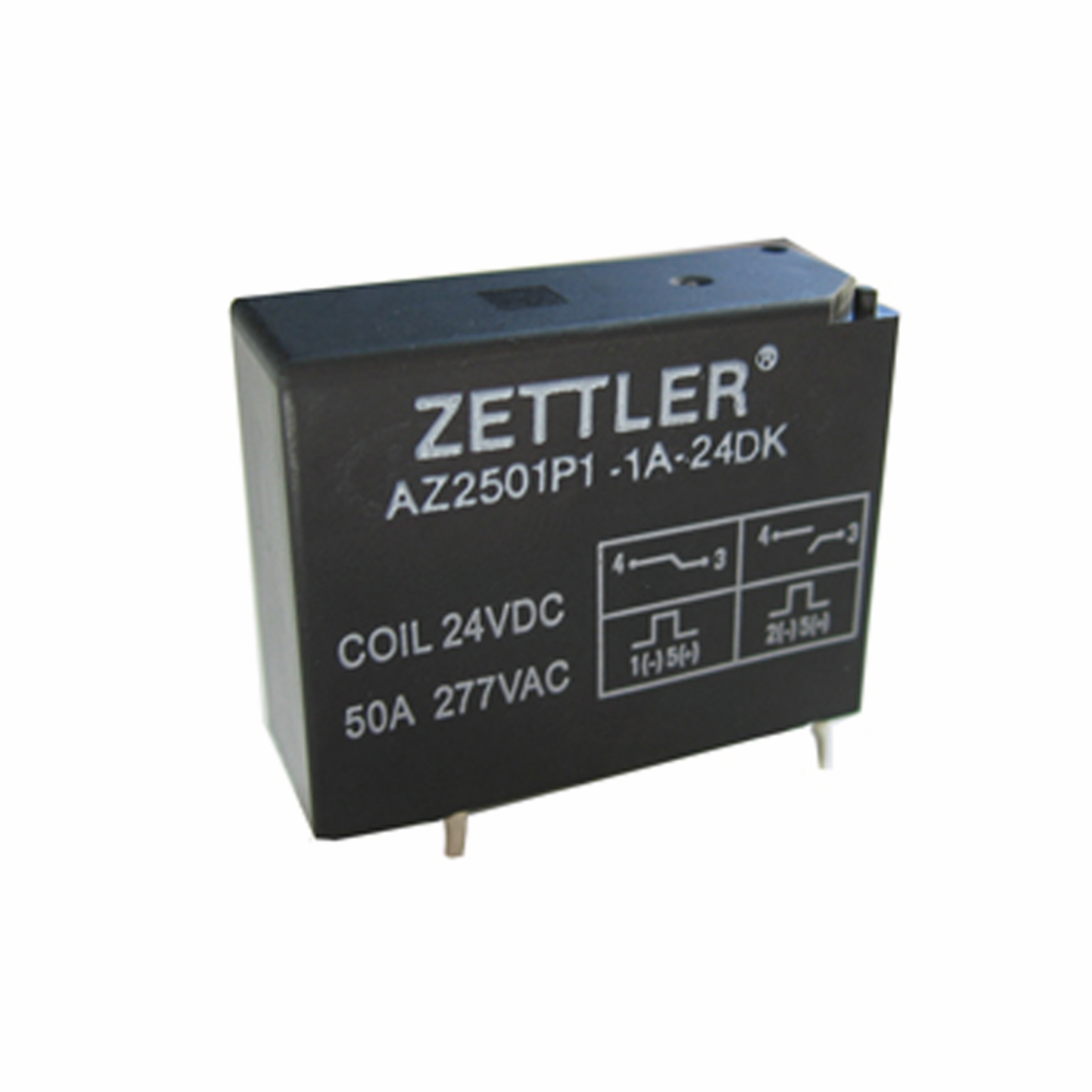

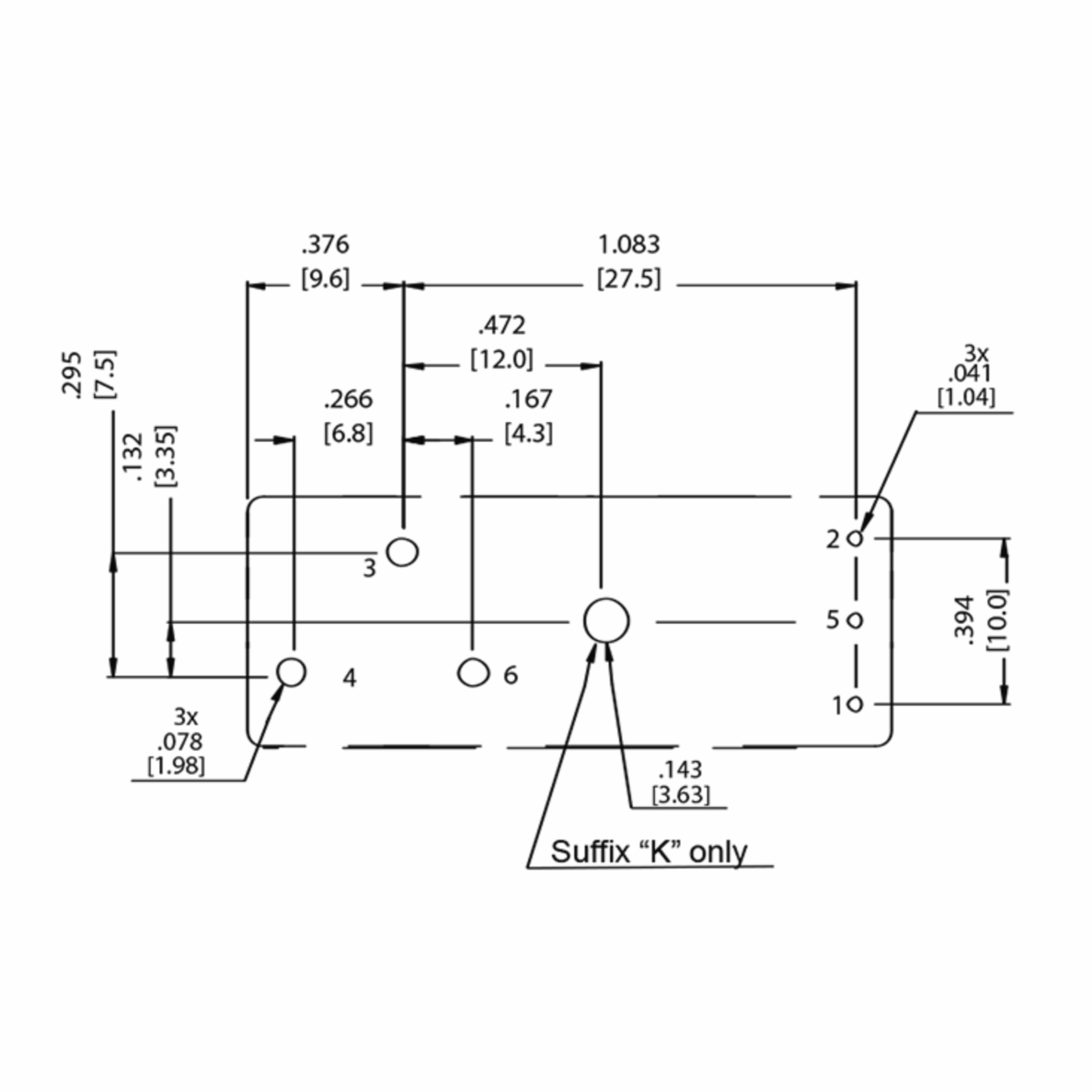

Zettler Power relay AZ2501P THT SPST-NO 50A 12VDC 48Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
800 Pcs.
800 Pcs.
Planned delivery time
Ø 21 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 800 or multiple of 800)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Power relay
- Series
- AZ2501P
- Rated voltage DC
- 12 V DC
- Switching current
- 50 A

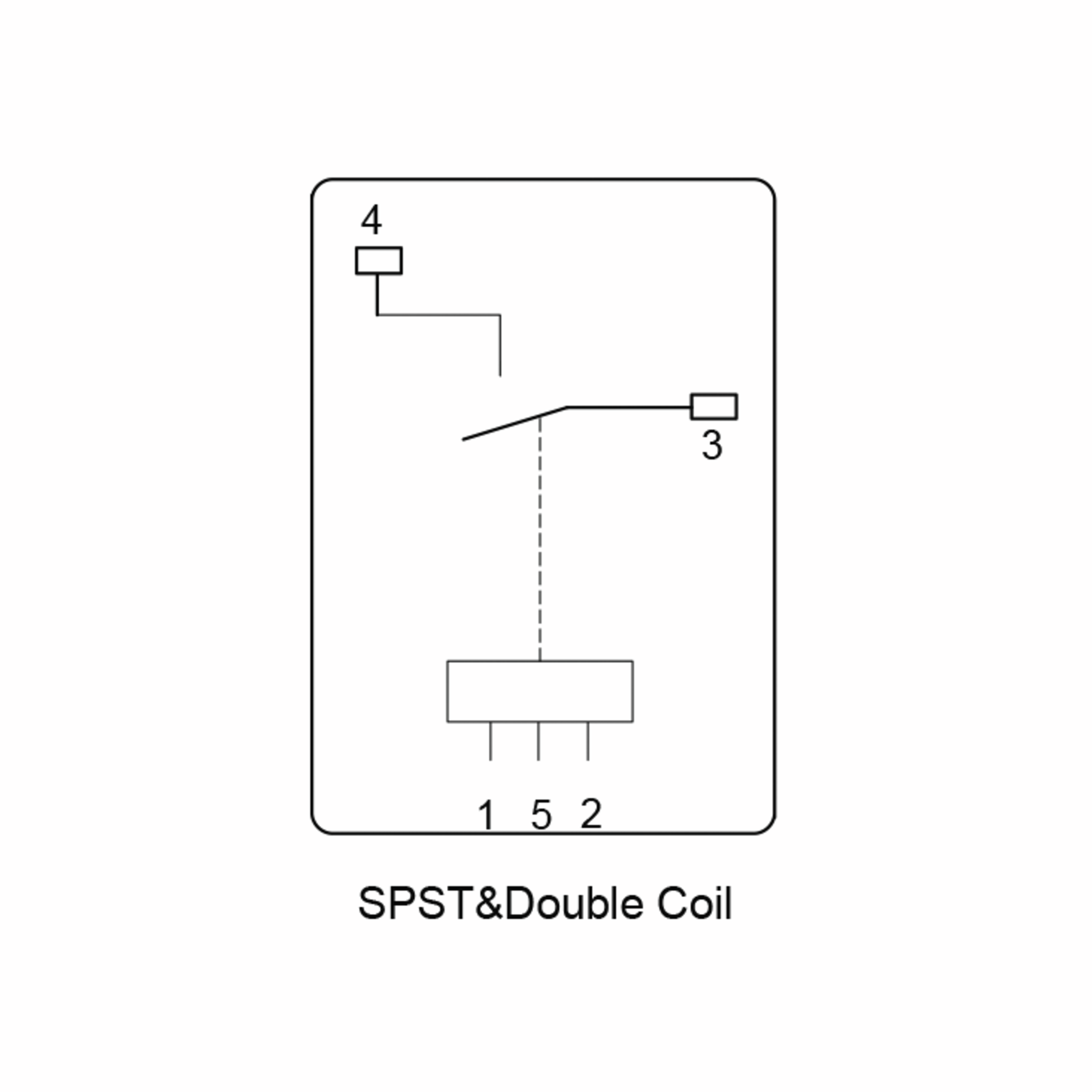

- contacts
- SPST-NO
- Coil resistance
- 48 Ohm
- Dimension: Length
- 39.3 mm
- Dimension: Width
- 15.3 mm
- Dimension: Height
- 30.5 mm
- RoHS-Conform
Specifications
Open all

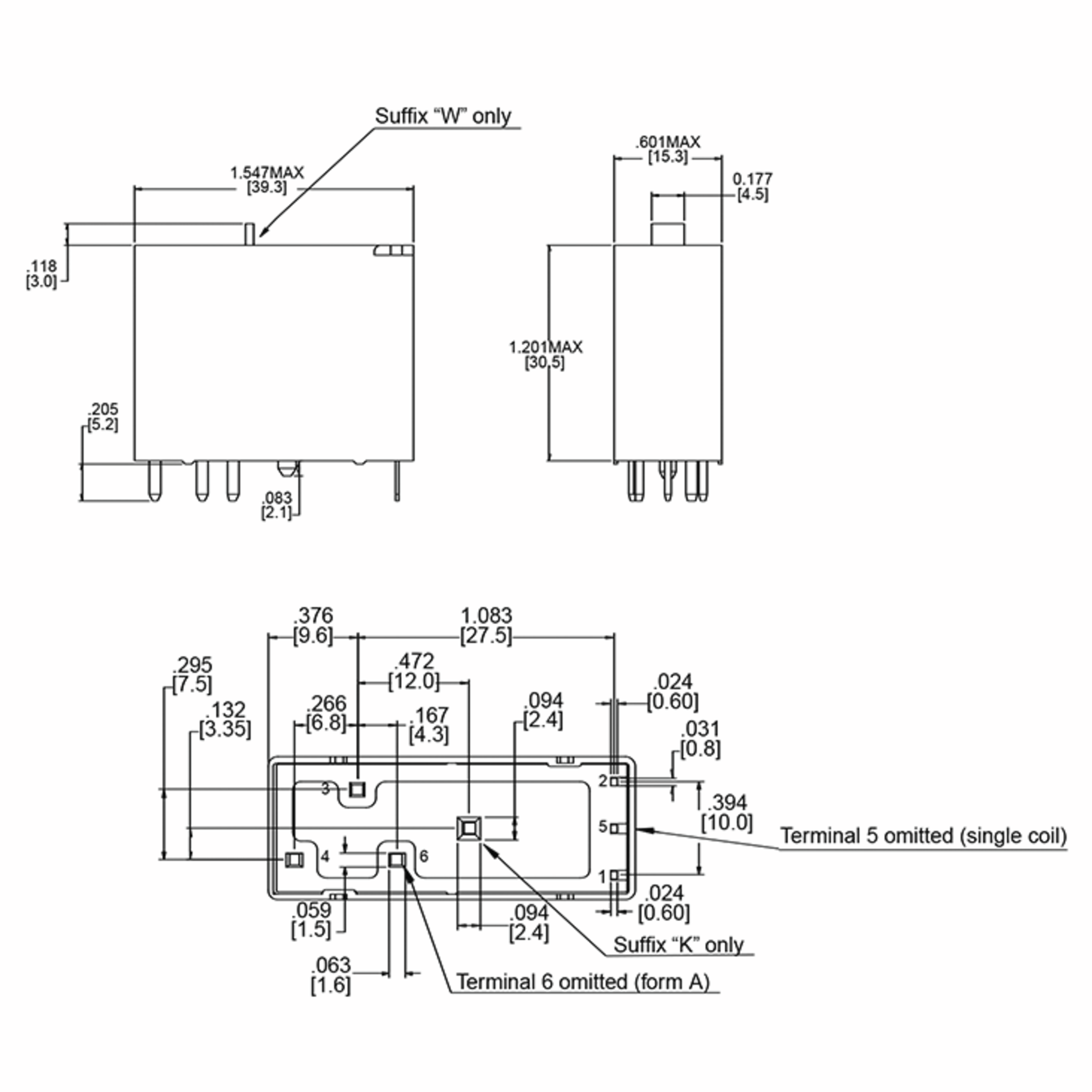

Dimensions and weights
- Dimension: Length
- 39.3 mm
- Dimension: Width
- 15.3 mm
- Dimension: Height
- 30.5 mm
- Weight
- 32 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 70 °C
Technical features
- Rated voltage DC
- 12 V DC
- Coil design
- Switching voltage, max. AC
- 440 V AC
- Response voltage
- 9.6 V
- Operating voltage, max.
- 15.6 V
- Test voltage open contacts
- 1,500 V AC
- Test voltage coil/contact
- 4,000 V AC
- Creepage distance
- 8 mm
- Switching current
- 50 A
- Rated power
- 300 mW
- Switching capacity (VA)
- 13,850 VA
- Coil resistance
- 48 Ohm
- Contact resistance
- 50 mOhm
- Insulation resistance
- 1.000 MOhm
- Response time
- 15 ms
- Drop-out time
- 15 ms
- Vibration resistance
- 1,5 mm DA
- Impact resistance, functional
- 10 G
Safety/Certifications
- Approvals
- UL
- cUL
