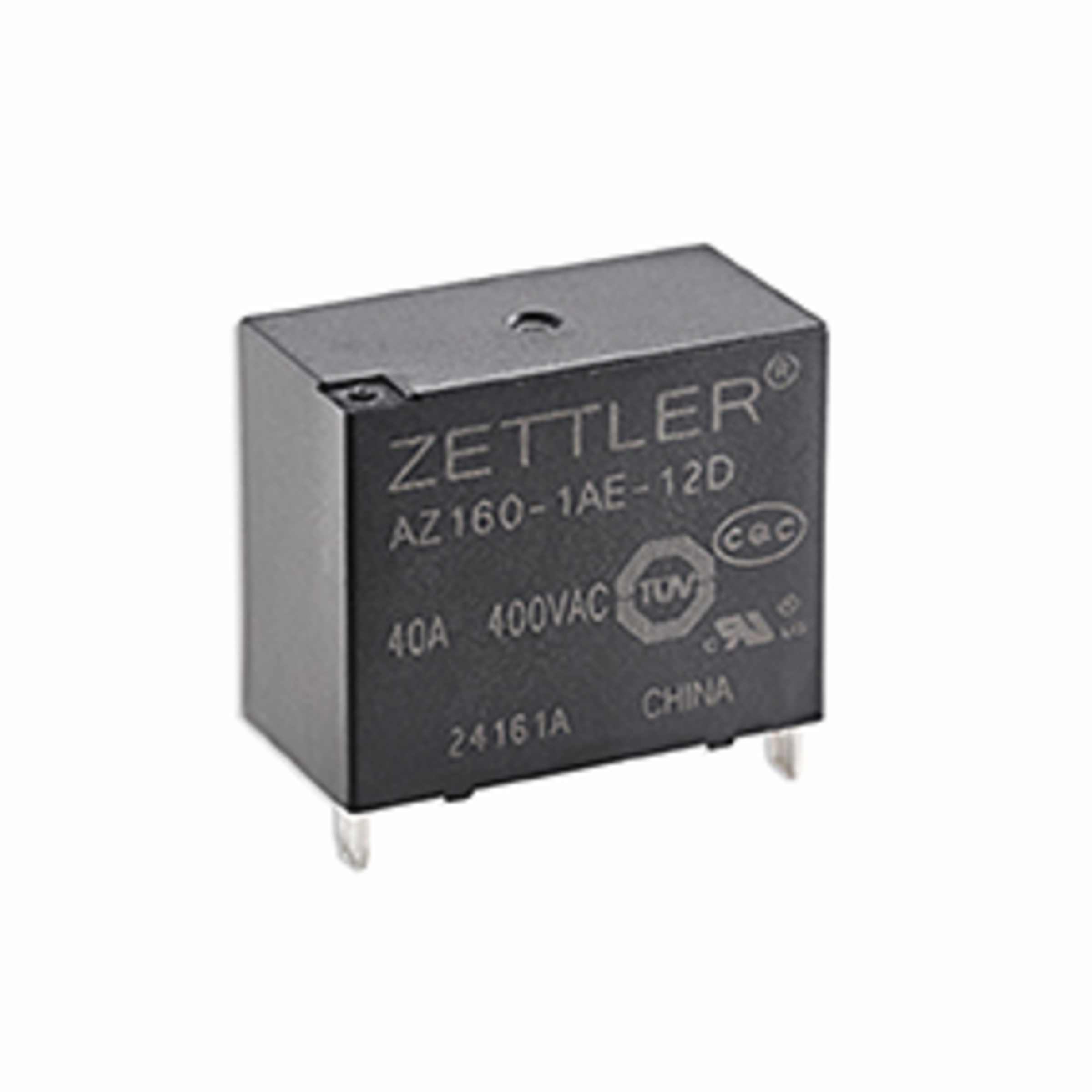

AZ160-1AE-24D
Zettler Power relay AZ160 THT SPST-NO 60A 24VDC 640Ohm
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
5 Pcs.
5 Pcs.
Next Stock Receipt
Week 06/2025
1.000 Pcs.
1.000 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Power relay
- Series
- AZ160
- Rated voltage DC
- 24 V DC
- Dielectric strength
- 10 kV
- Switching current
- 60 A

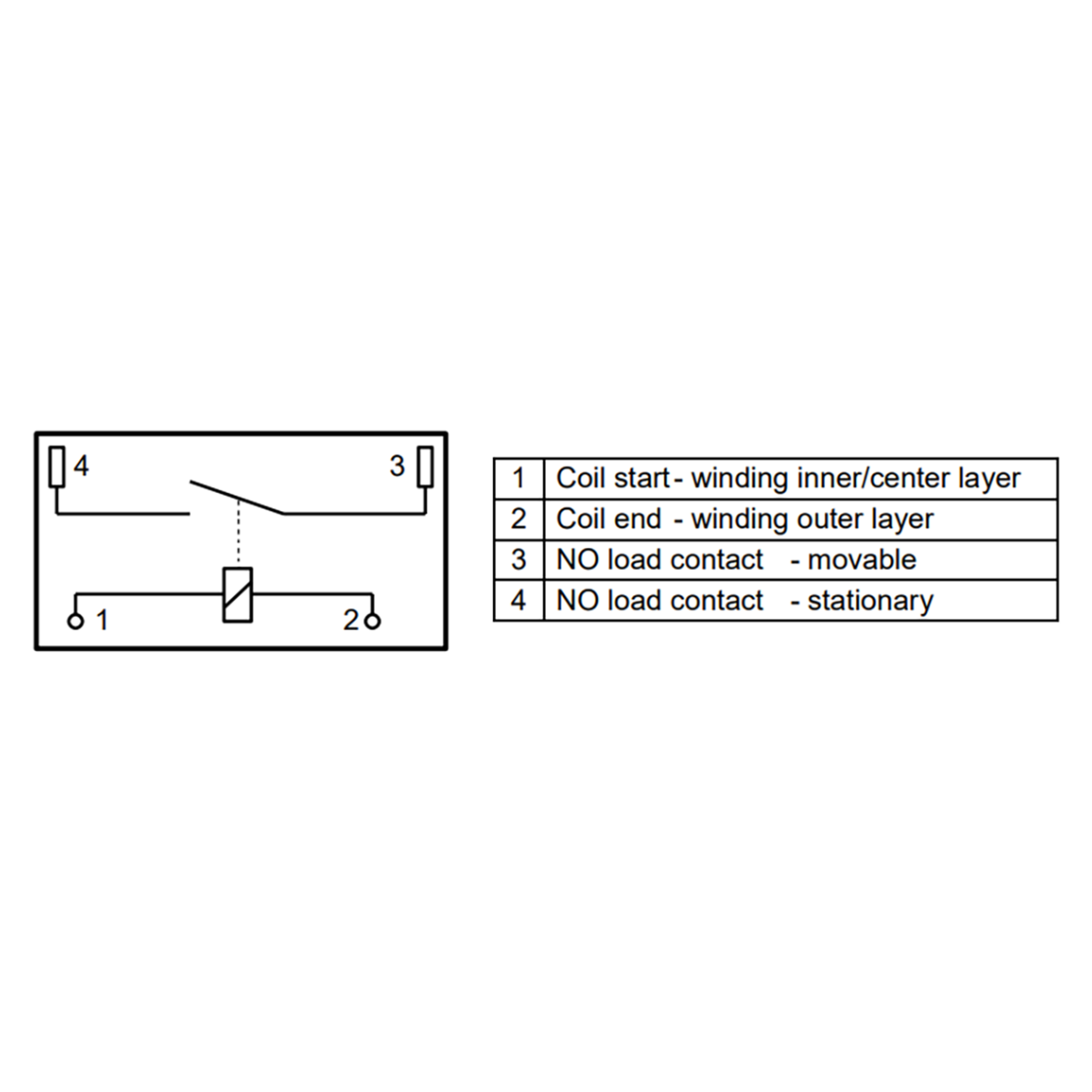

- contacts
- SPST-NO
- Coil resistance
- 640 Ohm
- Dimension: Length
- 30.4 mm
- Dimension: Width
- 15.9 mm
- Dimension: Height
- 25.15 mm
- RoHS-Conform
Specifications
Open all

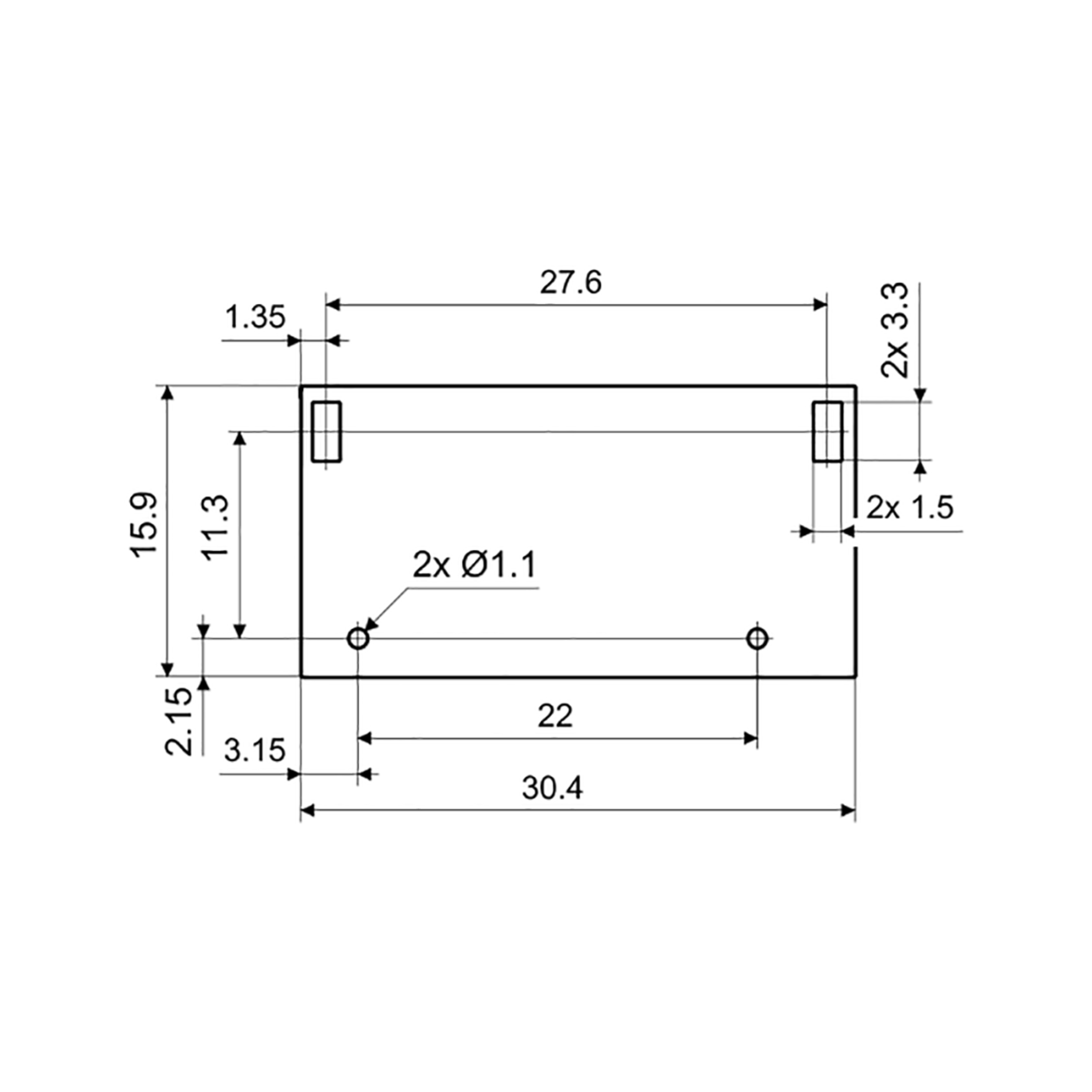

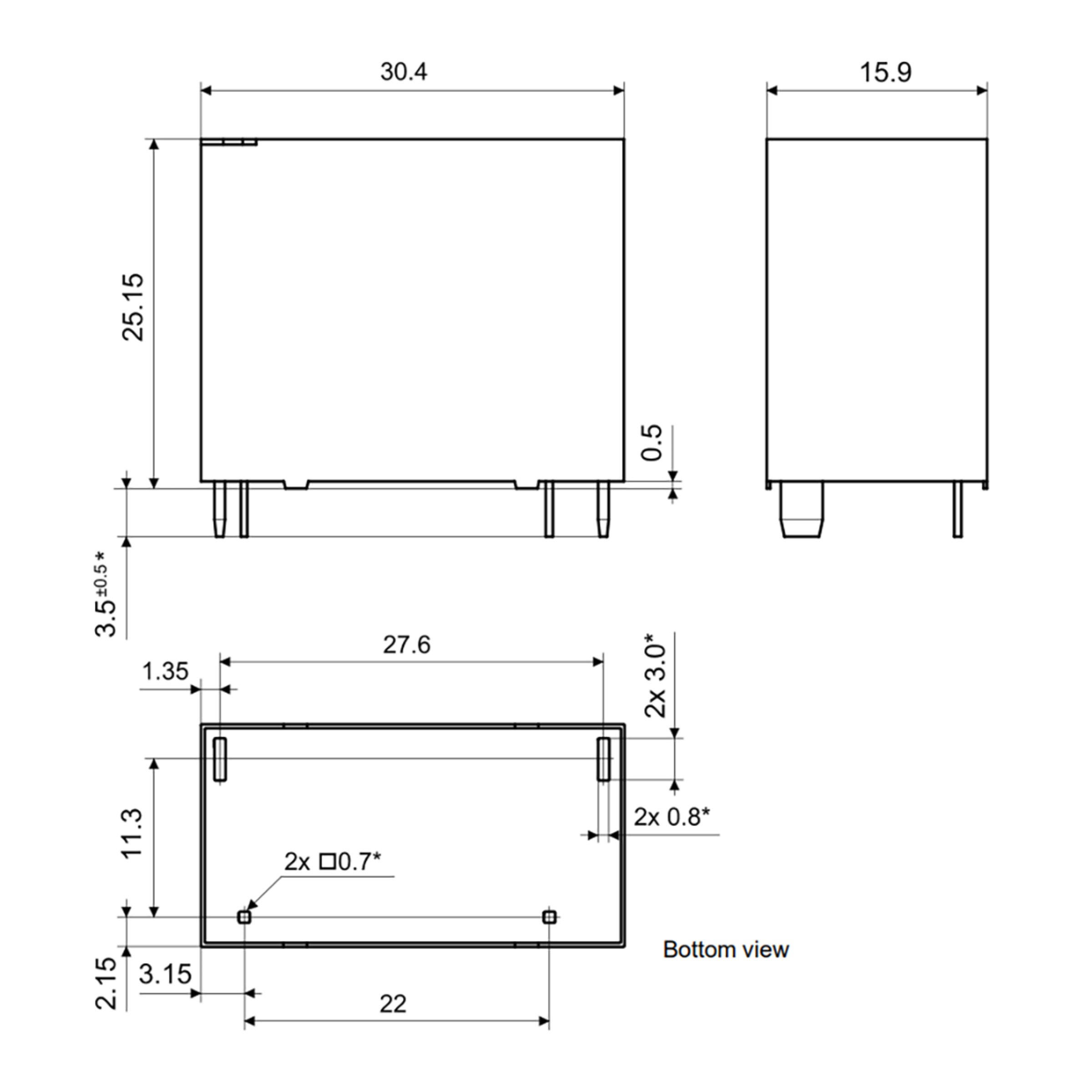

Dimensions and weights
- Dimension: Length
- 30.4 mm
- Dimension: Width
- 15.9 mm
- Dimension: Height
- 25.15 mm
- Weight
- 25 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 24 V DC
- Coil design
- monostable
- Switching voltage, max. AC
- 480 V AC
- Response voltage
- 18 V
- Drop-out voltage
- 8.4 V
- Operating voltage, max.
- 28.8 V
- Test voltage open contacts
- 1,700 V AC
- Test voltage coil/contact
- 4,500 V AC
- Creepage distance
- 0.8 mm
- Switching current
- 60 A
- Dielectric strength
- 10 kV
- Rated power
- 900 mW
- Switching capacity (VA)
- 28,800 VA
- Coil resistance
- 640 Ohm
- Contact resistance
- 3 mOhm
- Insulation resistance
- 1.000 MOhm
- Response time
- 20 ms
- Drop-out time
- 10 ms
- Vibration resistance
- 1,5 mm DA
- Impact resistance, functional
- 20 G
Safety/Certifications
- Approvals
- CQC
- MOT
- UL 94 V0
- cULus
- Standards
- UL 508, IEC 61810-1, GB/T 21711.1-2008
- Protection class RT
- RTII
