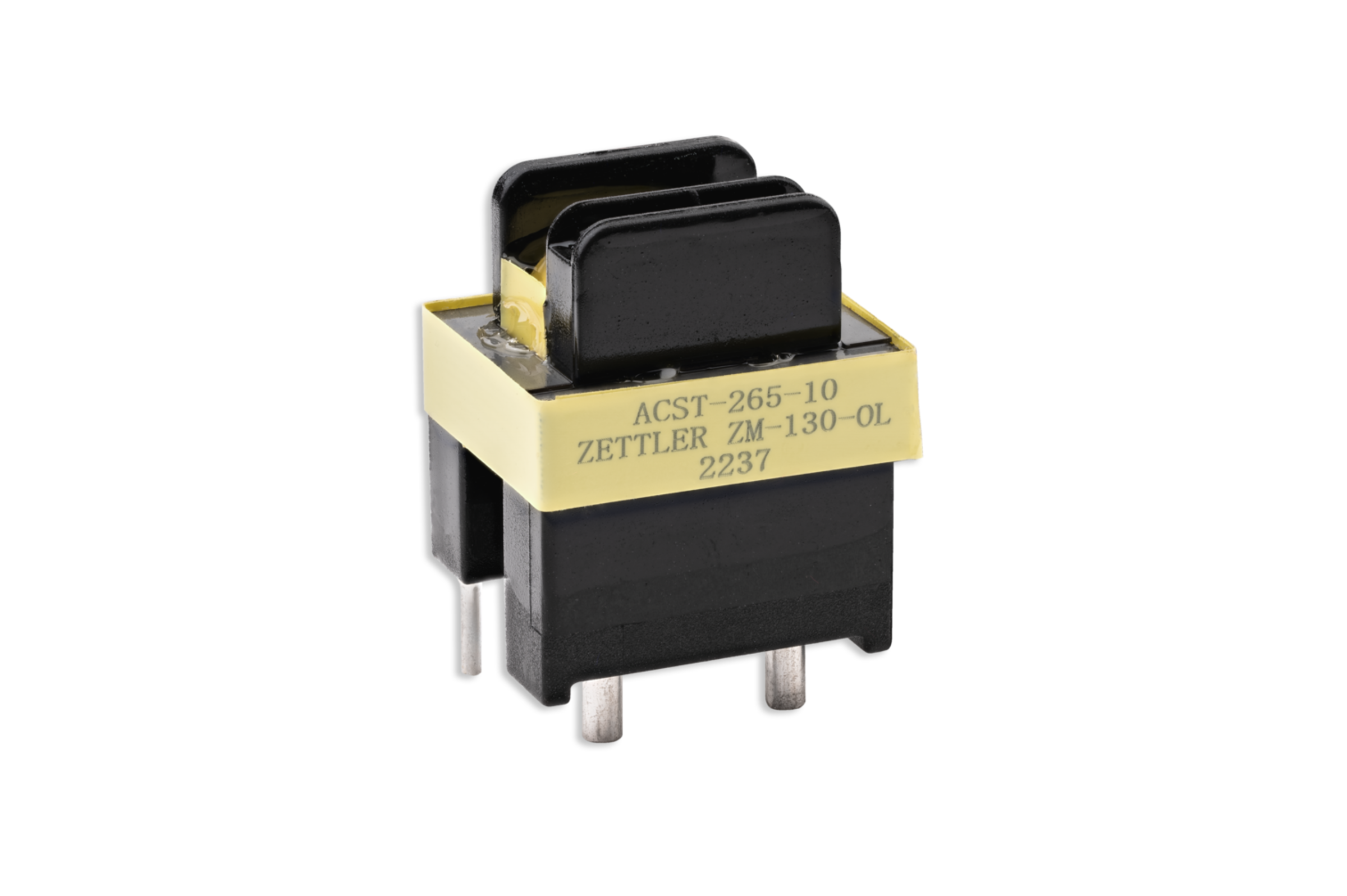

ACST-265-10
Zettler Current transformer ACST 0,4A 36A 5% 50-60Hz 60Ohm Print assembly
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1 Pcs.
1 Pcs.
Next Stock Receipt
Week 03/2025
480 Pcs.
480 Pcs.
Planned delivery time
Ø 21 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 30 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- ACST
- Winding ratio
- Eingangsstrom, min.
- 0.4 A
- Eingangsstrom, max.
- 36 A
- Tolerance
- 5 %
- Load resistance
- 60 Ohm
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Electrical properties
- Tolerance
- 5 %
Technical features
- Eingangsstrom, min.
- 0.4 A
- Eingangsstrom, max.
- 36 A
- Secondary current, max.
- 32 mA
- Load resistance
- 60 Ohm
- Mains Frequency
- 50 Hz
- Insulation voltage (primary/sec.)
- 4,000 V AC
- Terminating resistor
- 103 Ohm
