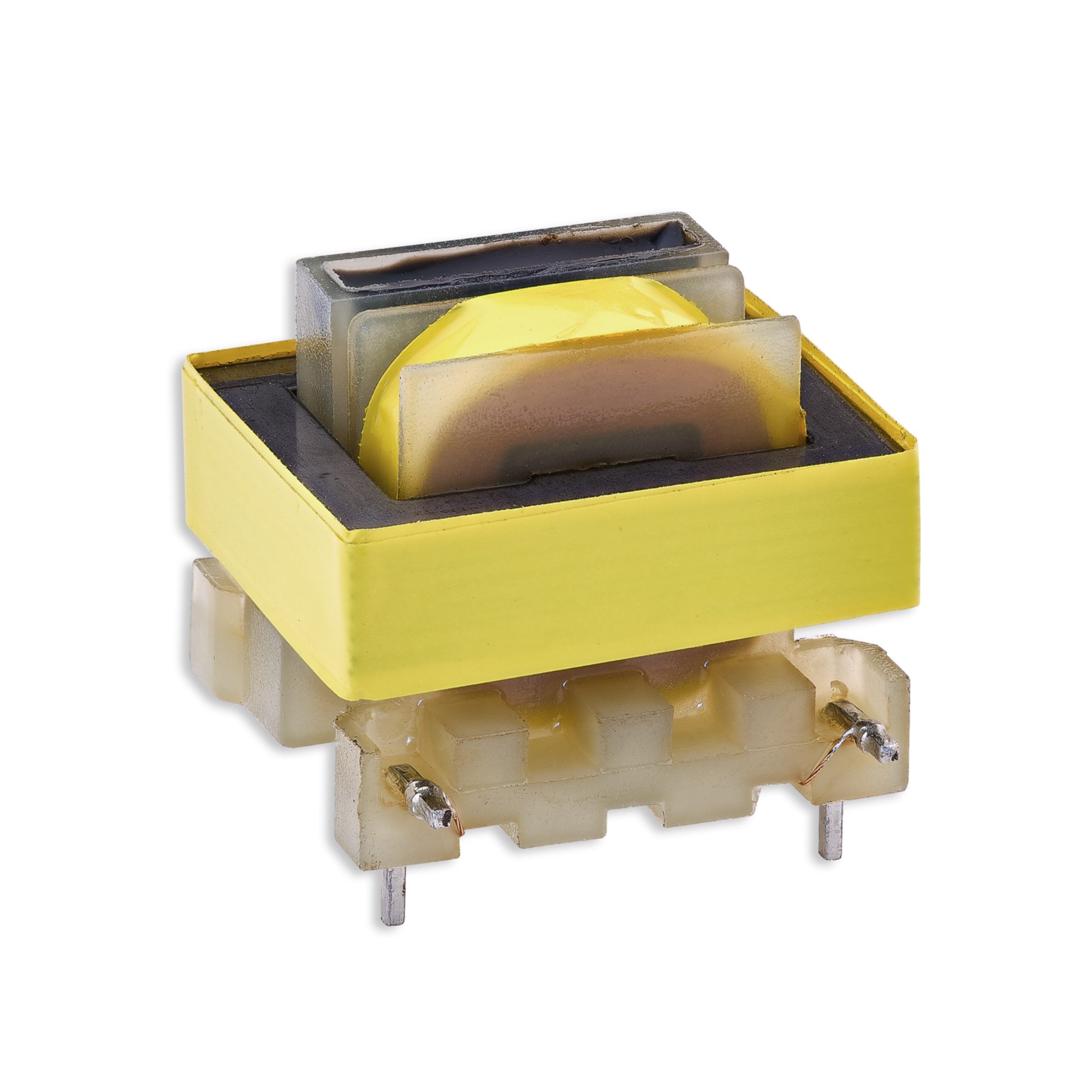

ACST-262-18

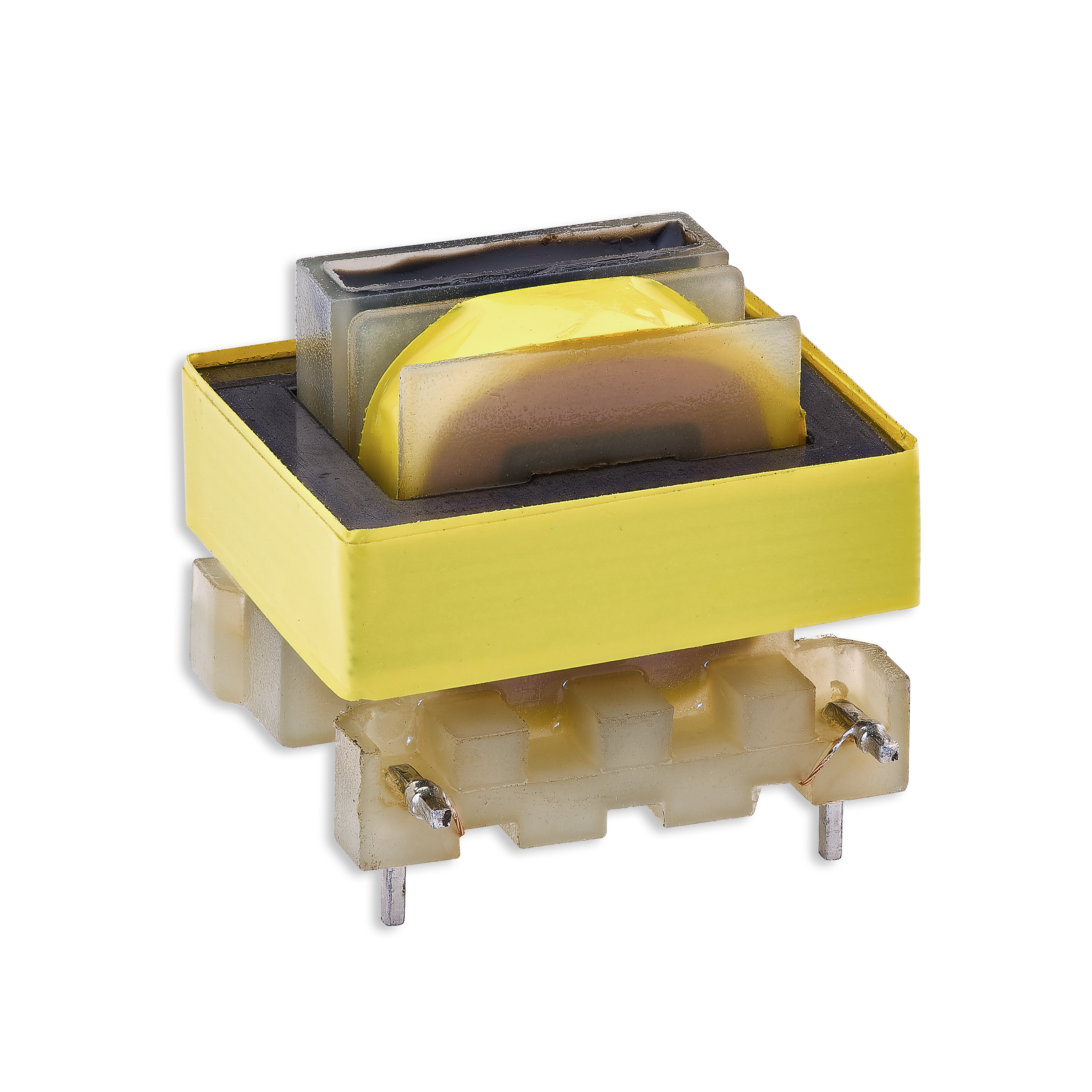

Zettler Current transformer ACST 0,4A 30A 5% 50-200Hz 100Ohm Print assembly
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
572 Pcs. in stock
Planned delivery time
Ø 21 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 48 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- ACST
- Winding ratio
- Eingangsstrom, min.
- 0.4 A
- Eingangsstrom, max.
- 30 A
- Tolerance
- 5 %
- Load resistance
- 100 Ohm
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Electrical properties
- Tolerance
- 5 %
Technical features
- Eingangsstrom, min.
- 0.4 A
- Eingangsstrom, max.
- 30 A
- Load resistance
- 100 Ohm
- Mains Frequency
- 50 Hz
- Insulation voltage (primary/sec.)
- 4,000 V AC
- Terminating resistor
- 236 Ohm
