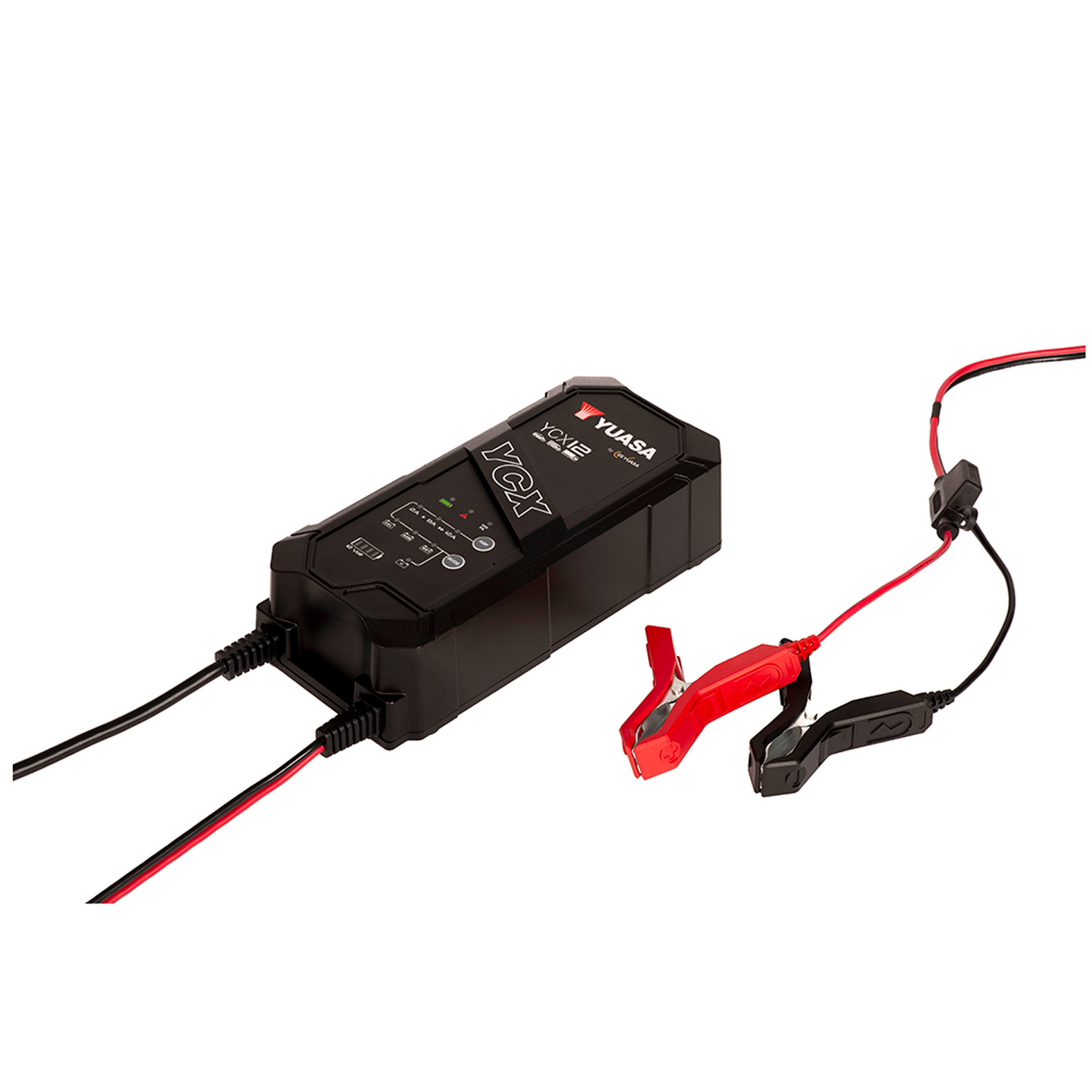

YCX12
Yuasa Lead Li-Ion Battery Charger 12 V 12 A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1 Pcs. in stock
Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Chargeable battery systems
- Lead
Li-Ion - Output voltage
- 12 V
- Output current
- 12.000 A
- RoHS-Conform
Specifications
Open all
Operating conditions
- Chargeable battery systems
- Lead
- Li-Ion
- Battery capacity, min.
- 240 Ah
- Battery capacity, max.
- 360 Ah
Input
- Power factor correction (PFC)
- Connection type, input
- Euro Plug
Output
- Output voltage
- 12 V
- Output current
- 12.000 A
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Reverse polarity protection
- Connection type, output
- Plug Adapter
- Temperature compensation
Safety/Certifications
- Protection Class IP
- IP44
- Approvals
- CE
Documents
LIT075-German-YCX-charger-brochure-Web.pdf
Yuasa_YCX_Charger_Manual_YCX6_YCX12_v3.pdf
Yuasa_YCX_Charger_Manual_YCX6_YCX12_v3.pdf
LIT075-German-YCX-charger-brochure-Web.pdf
