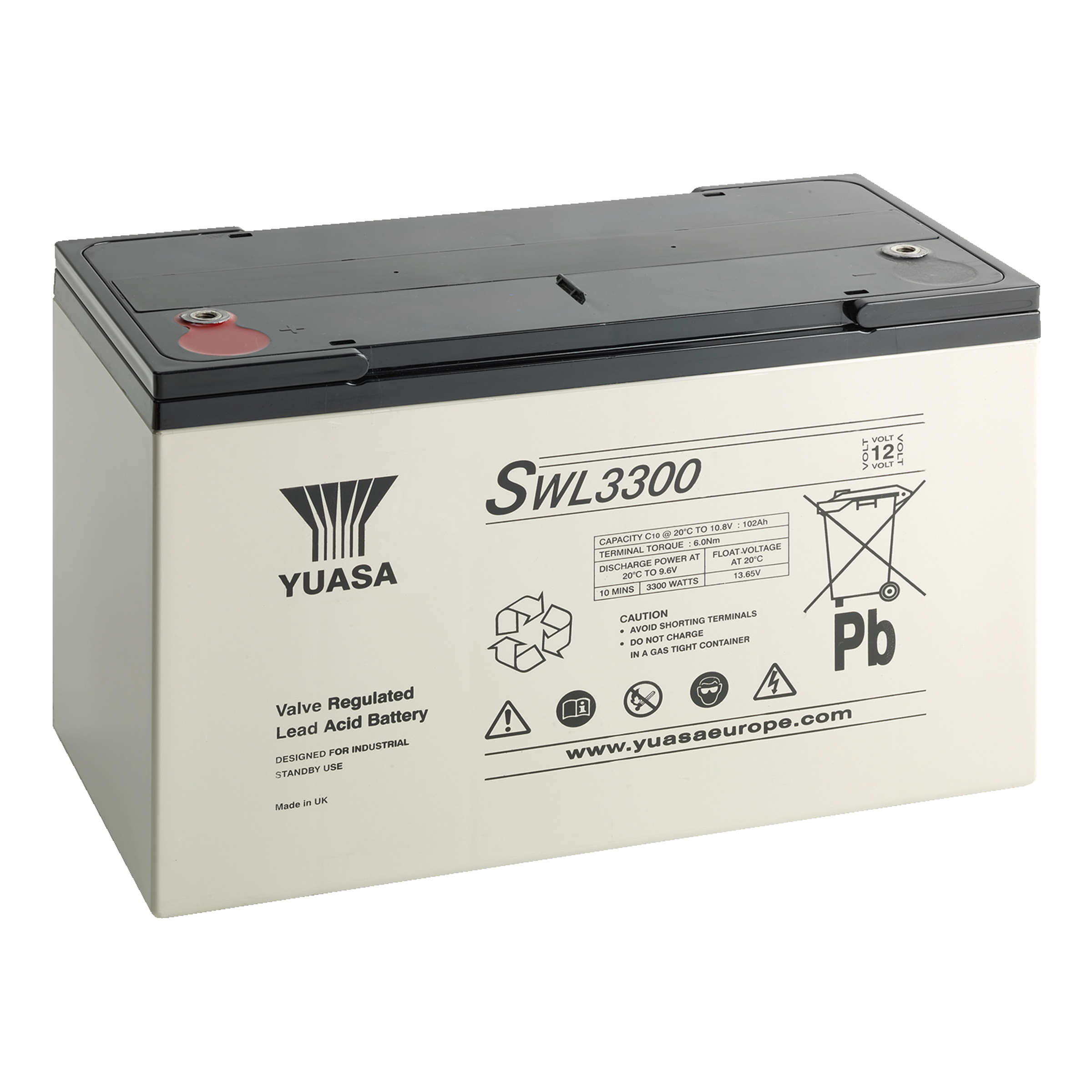

SWL3300
Yuasa Lead-acid batteries SWL 12V 110.200mAh L350mm B168mm H Internal Thread M8
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 12.12.2025
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- UN Number (Dangerous Goods)
- 2800 - Batteries, wet, leak-proof
- Rated Voltage
- 12 V
- Nominal capacity
- 110,200 mAh
- Chemical system
- Lead acid (Pb)
Specifications
Open all
Operating conditions
- Operating temperature, charge, min.
- -15 °C
- Operating temperature, charge, max.
- 50 °C
- Operating temperature, discharge, min.
- -20 °C
- Operating temperature, discharge, max.
- 60 °C
- Self-discharge (% p.m.)
- 3 %/Monat
- Expected life (EUROBAT)
- 10 Jahre
- Storage Temperature Min.
- -20 °C
- Storage Temperature Max.
- 50 °C
Electrical features
- Nominal capacity
- 110,200 mAh
- Impedance
- 3.5 mOhm
- Rated Voltage
- 12 V
- Charge voltage, standard
- 13.65 V
- Charge voltage, max.
- 14.5 V
- Charge current, max.
- 25,625 mA
- Discharge current, max.
- 1,100,000 mA
Safety/Certifications
- Approvals
- UL
Hazardous Substances/Goods
- UN Number (Dangerous Goods)
- 2800 - Batteries, wet, leak-proof
Documents
EOL_GS YUASA Productinformation SWL_SWl+_EN.pdf
GS-Yuasa_Gebrauchsanleitung-NP-SWL.pdf
SDS_01_VRLA_Industrial_Batteries_Issue_23_b662.pdf
SDS_01_VRLA_Industrial_Batteries_Rev_23_DE_f25c.pdf
SWL-Shortform.pdf
