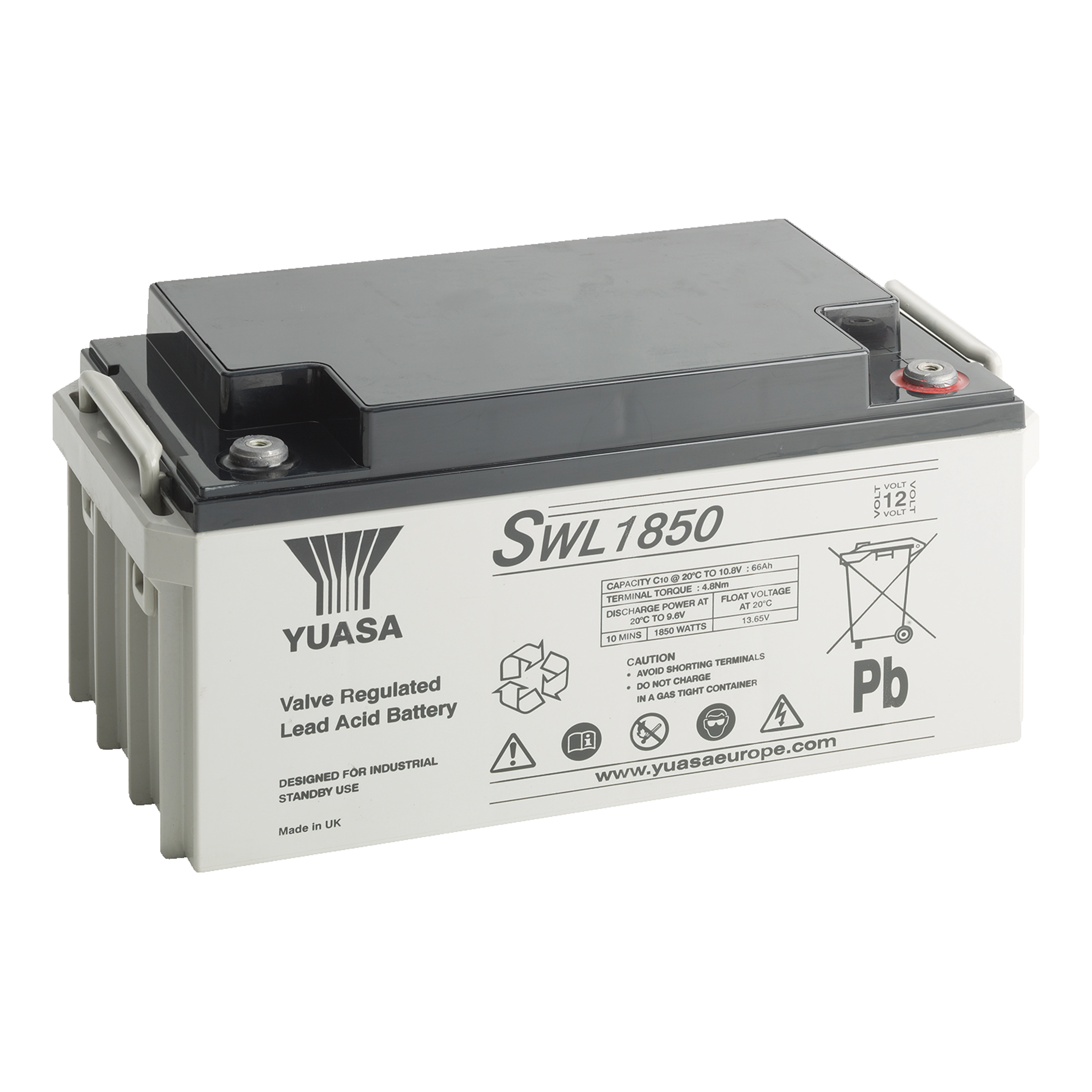

SWL1850

Yuasa Lead-acid batteries SWL 12V 74.000mAh L350mm B166mm H Internal Thread M6

SWL1850
Manufacturer Part No.
SWL1850
Schukat Part No.
SWL1850
Manufacturer
Yuasa
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

Item no longer available!

Planned delivery time
---
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
EOL 12.12.2025
Cancelled by manufacturer without replacement
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

UN Number (Dangerous Goods)
2800 - Batteries, wet, leak-proof
Rated Voltage
12 V
Nominal capacity
74,000 mAh
Chemical system
Lead acid (Pb)

Specifications

Close all

General

Manufacturer
  • Yuasa
Type
  • Prismatic Cell Accu
Series
  • SWL
Product group
  • S2750
Application
  • Standby operation; applications with a high discharge rate, such as in UPS systems and the telecommunications sector
Dimension: Length
  • 350 mm
Dimension: Width
  • 166 mm
Chemical system
  • Lead acid (Pb)
Weight
  • 23,300 g
Total height
  • 174 mm
Termination Style
  • Internal Thread M6
Material: Housing
  • Plastic, Flame Retardant UL 94
Features

  • - Electrolyte bound in glass fibre fleece
    - Lead-calcium grid for a longer service life
    - Valve-regulated design, with almost 100% oxygen recombination
    - Excellent charging efficiency
    - Rapid recovery after deep discharge
    - SWL series: high-performance batteries for critical USC applications

Operating conditions

Operating temperature, charge, min.
  • -15 °C
Operating temperature, charge, max.
  • 50 °C
Operating temperature, discharge, min.
  • -20 °C
Operating temperature, discharge, max.
  • 60 °C
Self-discharge (% p.m.)
  • 3 %/Monat
Expected life (EUROBAT)
  • 10 Jahre
Storage Temperature Min.
  • -20 °C
Storage Temperature Max.
  • 50 °C

Electrical features

Nominal capacity
  • 74,000 mAh
Impedance
  • 4.4 mOhm
Rated Voltage
  • 12 V
Charge voltage, standard
  • 13.65 V
Charge voltage, max.
  • 14.5 V
Charge current, max.
  • 16,500 mA
Discharge current, max.
  • 800,000 mA

Safety/Certifications

Approvals
  • UL

Hazardous Substances/Goods

UN Number (Dangerous Goods)
  • 2800 - Batteries, wet, leak-proof

Documents

EOL_GS YUASA Productinformation SWL_SWl+_EN.pdf
Download (pdf, 244 KB)
Gebrauchsanleitung_SWL_SWL__5715.pdf
Download (pdf, 734 KB)
GS-Yuasa_Gebrauchsanleitung-NP-SWL.pdf
Download (pdf, 732 KB)
LIT038_DE_IND_Prospekt_28_04_2023_FINAL_32ef.pdf
Download (pdf, 28.614 KB)
SDS_01_DE_Valve_Regulated_Lead_Acid__VRLA__Industrial_Battery_German_Issue_24_fa1c.pdf
Download (pdf, 426 KB)
SDS_01_UK_Valve_Regulated_Lead_Acid__VRLA__Industrial_Battery_GB_English_issue__fee6.pdf
Download (pdf, 367 KB)
SWL-Shortform.pdf
Download (pdf, 906 KB)

Other Products

All Products of the Series
Loading...

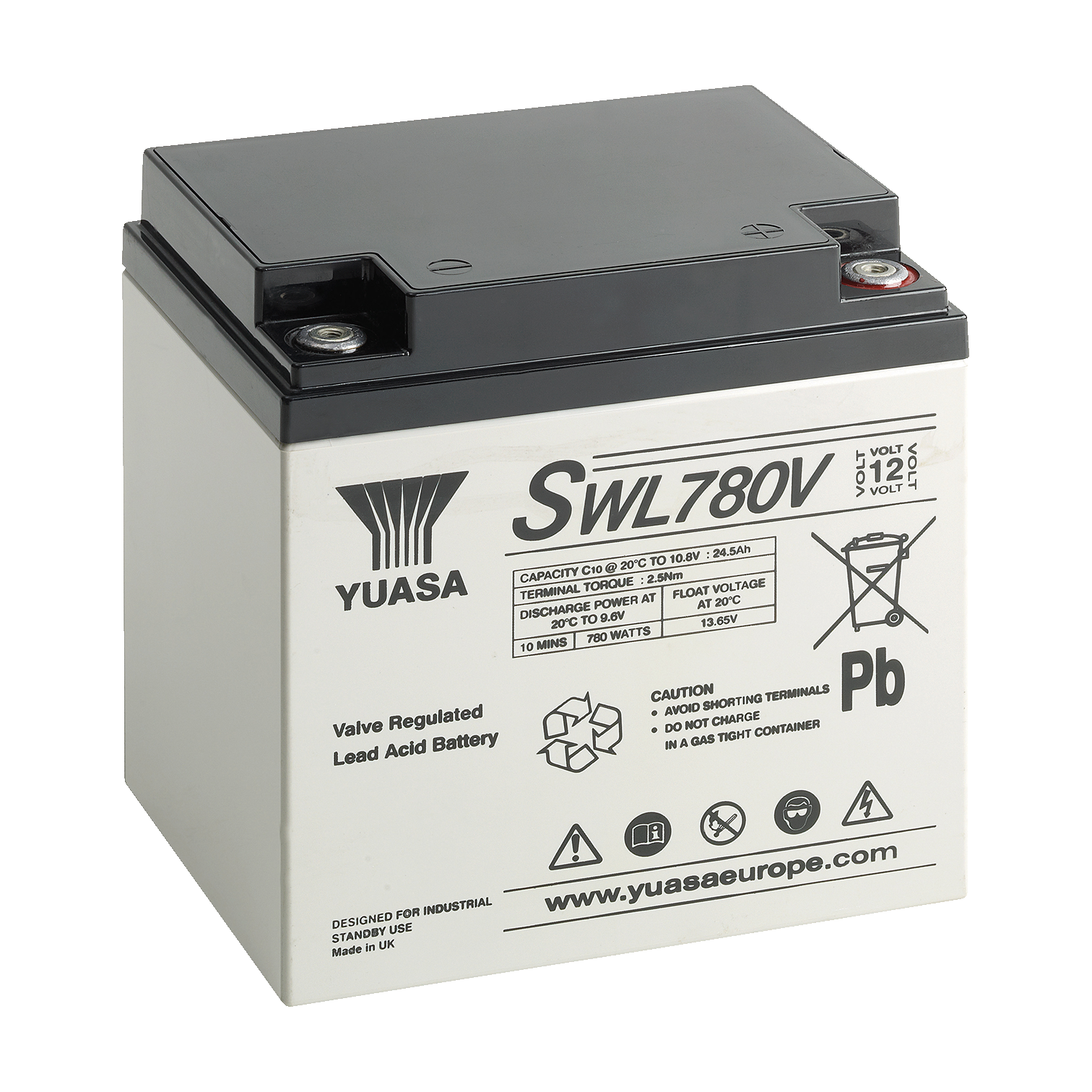

SWL780V
Yuasa
Lead-acid batteries SWL 12V 28.800mAh L166mm B125mm H Internal Thread M5
from €77.30
Loading...

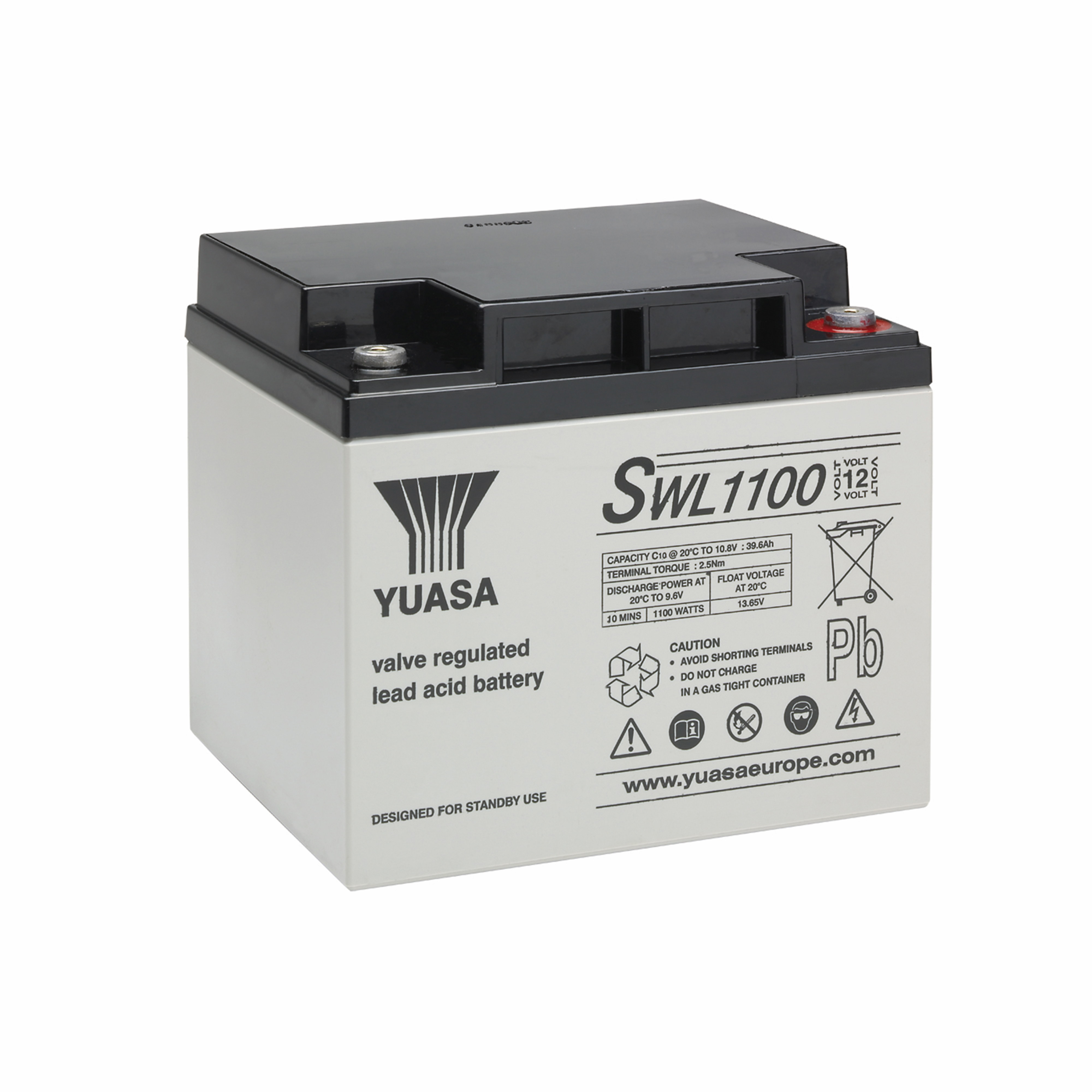

SWL1100
Yuasa
Lead-acid batteries SWL 12V 40.600mAh L197mm B165mm H Internal Thread M5
from €103.25
Loading...

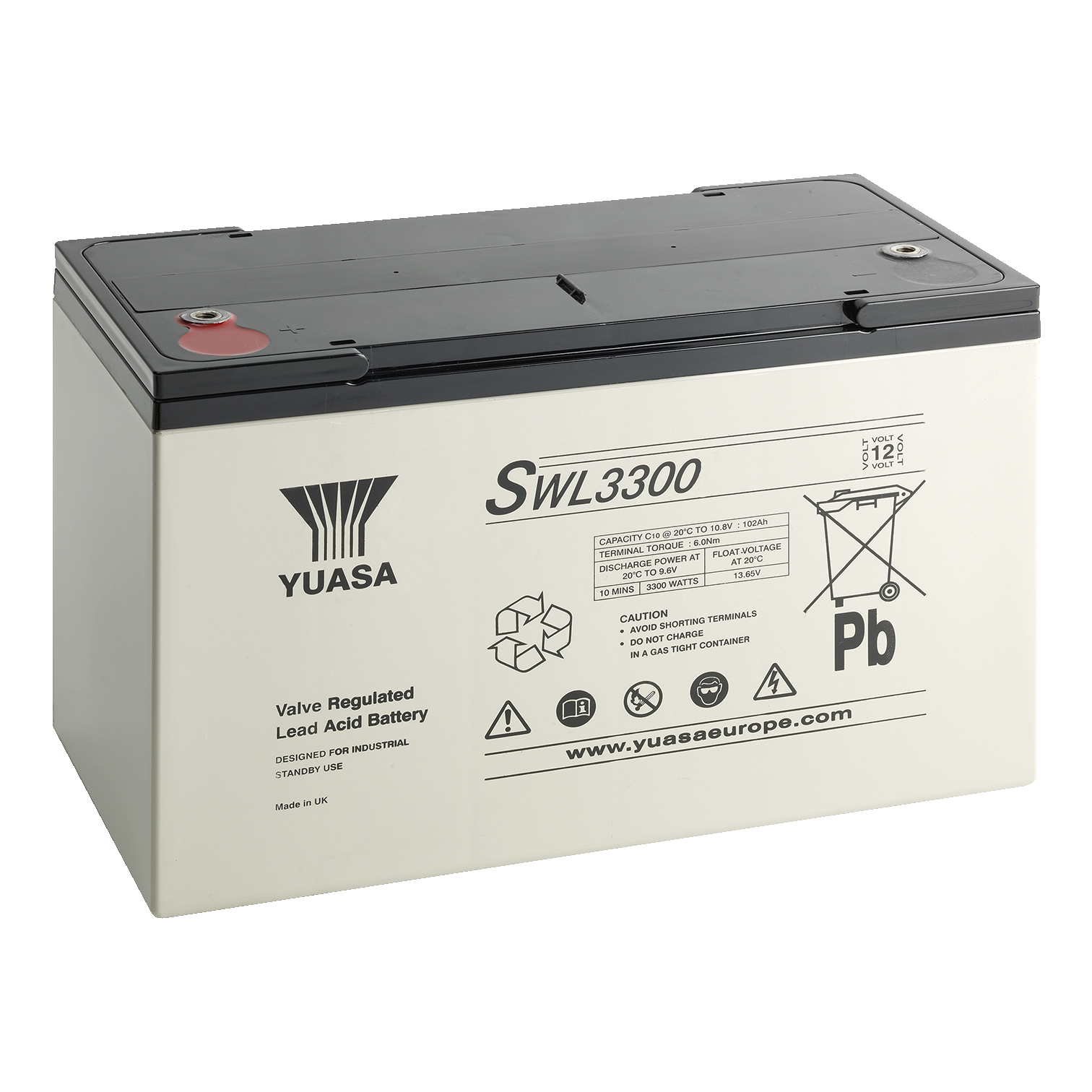

SWL3300
