REC26-12I

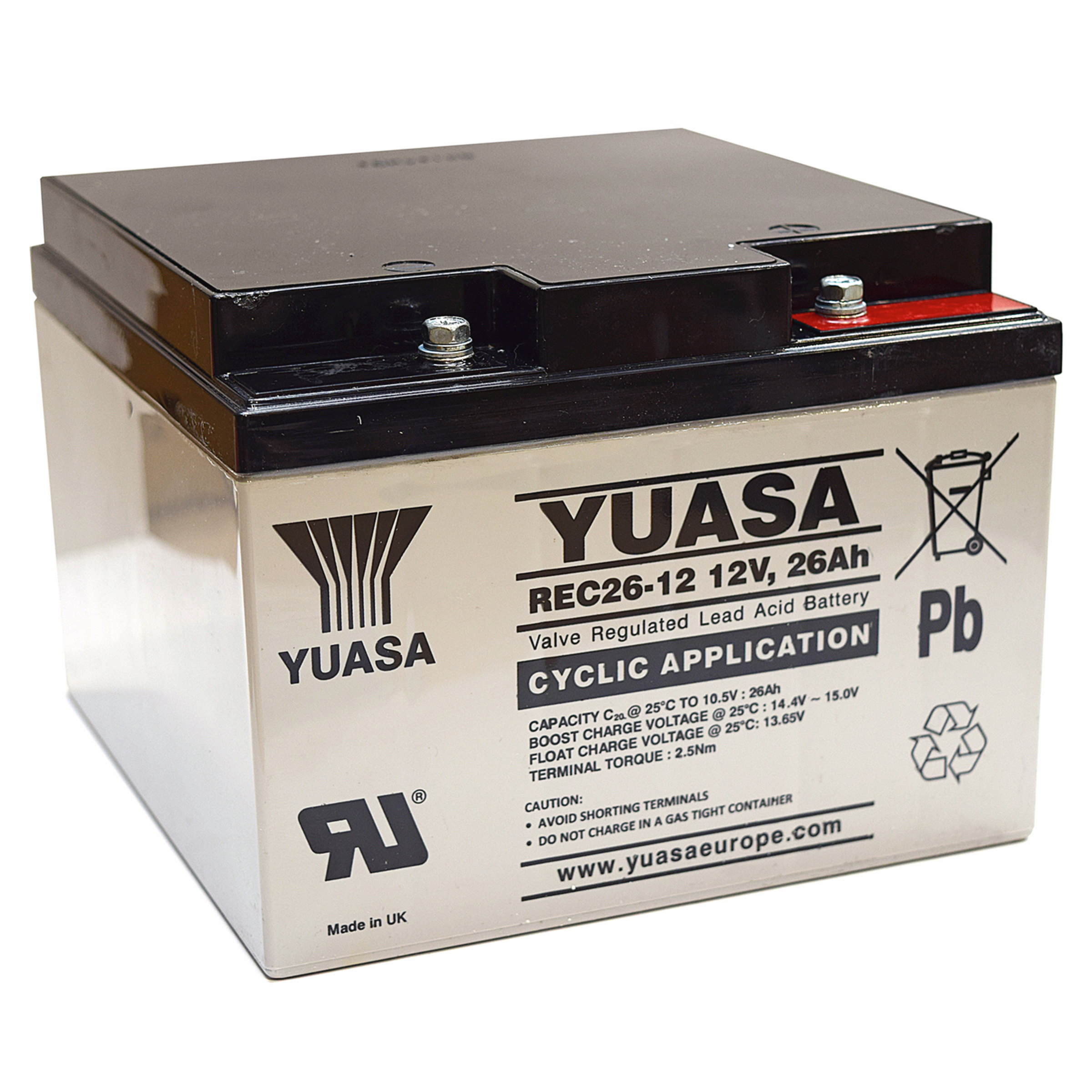

Yuasa Lead-acid battery REC 12V 26.000mAh L166mm B175mm H Internal Thread M5

Manufacturer Part No.
REC26-12I
Schukat Part No.
REC26-12I
Manufacturer
Yuasa
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

3 Pcs. in stock

Planned delivery time
---
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
EOL 29.09.2021
Discontinued by manufacturer without replacement
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Rated Voltage
12 V
Nominal capacity
26,000 mAh
Chemical system
Lead Acid

Specifications

Open all

General

Manufacturer
  • Yuasa
Type
  • Prismatic Cell
Series
  • REC
Product group
  • S2749 YUASA Lead-Acid Rech. Batteries RE, REW and REC Cyclic Use
Application
  • Cyclical applications such as in the fields of golf and mobility; solar and wind power systems; renewable energy; professional tools; automatically controlled vehicles; emergency lighting; measuring instruments
Dimension: Length
  • 166 mm
Dimension: Width
  • 175 mm
Chemical system
  • Lead Acid
Weight
  • 9,000 g
Total height
  • 125 mm
Termination Style
  • Internal Thread M5
Material: Housing
  • Plastic, Flame Retardant UL 94
Features

  • - Electrolyte bound in the glass fiber fleece
    - Lead-calcium grids for a longer service life
    - Valve controlled construction, almost 100% oxygen recombination
    - Very good charging efficiency
    - Fast recovery after deep discharge

Operating conditions

Operating temperature, charge, min.
  • 0 °C
Operating temperature, charge, max.
  • 40 °C
Operating temperature, discharge, min.
  • -15 °C
Operating temperature, discharge, max.
  • 40 °C
Self-discharge (% p.m.)
  • 3 %/Monat
Expected life (EUROBAT)
  • 6 Jahre
Storage Temperature Min.
  • -15 °C
Storage Temperature Max.
  • 50 °C

Electrical features

Nominal capacity
  • 26,000 mAh
Impedance
  • 8.8 mOhm
Rated Voltage
  • 12 V
Charge voltage, standard
  • 13.65 V
Charge voltage, max.
  • 14.52 V
Charge current, standard
  • 6,500 mA
Charge current, max.
  • 6,500 mA
Discharge current, max.
  • 330,000 mA

Safety/Certifications

Approvals
  • UL

Documents

REC-Shortform.pdf
Download (pdf, 729 KB)
SDS-01-VRLA-Industrial-Batteries-Rev-18_02-06-2021_DE.pdf
Download (pdf, 730 KB)
REC-Shortform.pdf
Download (pdf, 729 KB)
SDS-01-VRLA-Industrial-Batteries-Rev-18_02-06-2021_DE.pdf
Download (pdf, 730 KB)
