REC12-12

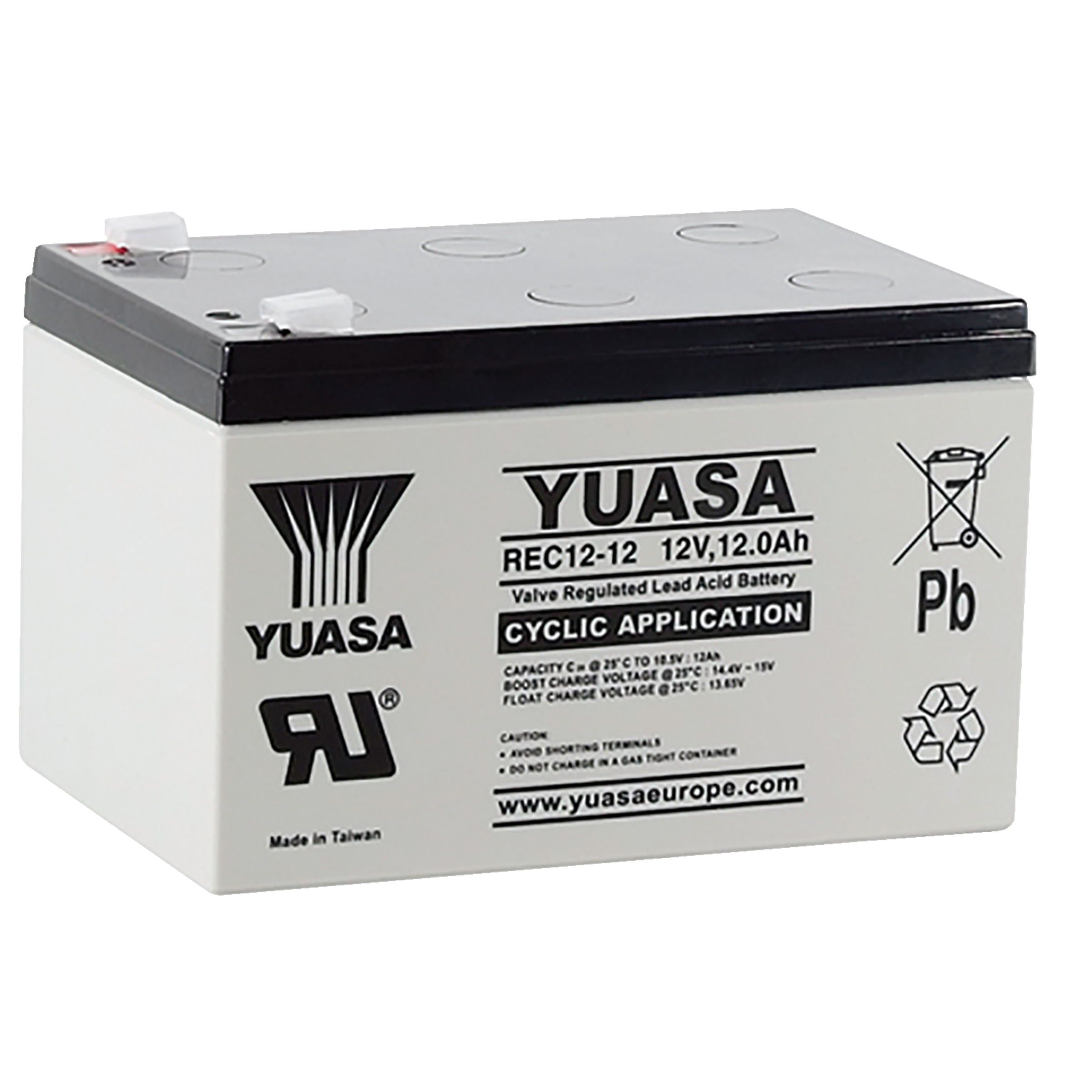

Yuasa Lead-acid battery REC 12V 12.000mAh L151mm B98mm H Male Tab Connector 6,4
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Back Order
0 Pcs.
0 Pcs.
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 29.09.2021
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Rated Voltage
- 12 V
- Nominal capacity
- 12,000 mAh
- Chemical system
- Lead Acid
Specifications
Open all
Operating conditions
- Operating temperature, charge, min.
- 0 °C
- Operating temperature, charge, max.
- 40 °C
- Operating temperature, discharge, min.
- -15 °C
- Operating temperature, discharge, max.
- 40 °C
- Self-discharge (% p.m.)
- 3 %/Monat
- Expected life (EUROBAT)
- 6 Jahre
- Storage Temperature Min.
- -15 °C
- Storage Temperature Max.
- 50 °C
Electrical features
- Nominal capacity
- 12,000 mAh
- Impedance
- 11.8 mOhm
- Rated Voltage
- 12 V
- Charge voltage, standard
- 13.65 V
- Charge voltage, max.
- 14.52 V
- Charge current, standard
- 3,000 mA
- Charge current, max.
- 3,000 mA
- Discharge current, max.
- 180,000 mA
Safety/Certifications
- Approvals
- UL
Documents
REC-Shortform.pdf
SDS-01-VRLA-Industrial-Batteries-Rev-18_02-06-2021_DE.pdf
REC-Shortform.pdf
SDS-01-VRLA-Industrial-Batteries-Rev-18_02-06-2021_DE.pdf
