RE7-12FR

Yuasa Lead-acid batteries RE 12V 12.000mAh L151mm B65mm H94mm Male Tab Connector 6,4

RE7-12FR
Manufacturer Part No.
RE7-12FR
Schukat Part No.
RE7-12FR
Manufacturer
Yuasa
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

Item no longer available!

Planned delivery time
---
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
EOL 21.06.2024
Cancelled by manufacturer with replacement
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

UN Number (Dangerous Goods)
2800 - Batteries, wet, leak-proof
Rated Voltage
12 V
Nominal capacity
12,000 mAh
Chemical system
Lead acid (Pb)

Specifications

Close all

General

Manufacturer
  • Yuasa
Type
  • Prismatic Cell Accu
Series
  • RE
Product group
  • S2749
Application
  • Standby and light-duty cyclic applications, such as in the fields of fire and security systems; emergency lighting; solar and wind power systems; UPS; telecommunications; toys
Dimension: Length
  • 151 mm
Dimension: Width
  • 65 mm
Dimension: Height
  • 94 mm
Chemical system
  • Lead acid (Pb)
Weight
  • 2,750 g
Total height
  • 97.5 mm
Termination Style
  • Male Tab Connector 6,4
Material: Housing
  • Plastic, Flame Retardant UL 94
Features

  • - Electrolyte bound in glass fibre fleece
    - Lead-calcium grid for a longer service life
    - Valve-regulated design, with almost 100% oxygen recombination
    - Very good charging efficiency
    - Rapid recovery after deep discharge

Operating conditions

Operating temperature, charge, min.
  • -15 °C
Operating temperature, charge, max.
  • 45 °C
Operating temperature, discharge, min.
  • -15 °C
Operating temperature, discharge, max.
  • 45 °C
Self-discharge (% p.m.)
  • 3 %/Monat
Expected life (EUROBAT)
  • 6 Jahre
Storage Temperature Min.
  • -15 °C
Storage Temperature Max.
  • 45 °C

Electrical features

Nominal capacity
  • 12,000 mAh
Impedance
  • 35 mOhm
Energy storage, capacity
  • 144 Wh
Rated Voltage
  • 12 V
Charge voltage, standard
  • 13.65 V
Charge voltage, max.
  • 14.5 V
Charge current, standard
  • 1,750 mA
Charge current, max.
  • 1,750 mA
Discharge current, max.
  • 105,000 mA

Safety/Certifications

Approvals
  • VdS; UL

Hazardous Substances/Goods

UN Number (Dangerous Goods)
  • 2800 - Batteries, wet, leak-proof

Documents

GS-Yuasa_Gebrauchsanleitung-NP-SWL.pdf
Download (pdf, 732 KB)
LIT038_DE_IND_Prospekt_28_04_2023_FINAL_32ef.pdf
Download (pdf, 28.614 KB)
SDS_01_DE_Valve_Regulated_Lead_Acid__VRLA__Industrial_Battery_German_Issue_24_fa1c.pdf
Download (pdf, 426 KB)
SDS_01_UK_Valve_Regulated_Lead_Acid__VRLA__Industrial_Battery_GB_English_issue__fee6.pdf
Download (pdf, 367 KB)

Other Products

All Products of the Series
Loading...
RE7-12LFR
Yuasa
Lead-acid batteries RE 12V 7.000mAh L151mm B65mm H94mm Male Tab Connector 6,4
from 27,67 €
Loading...

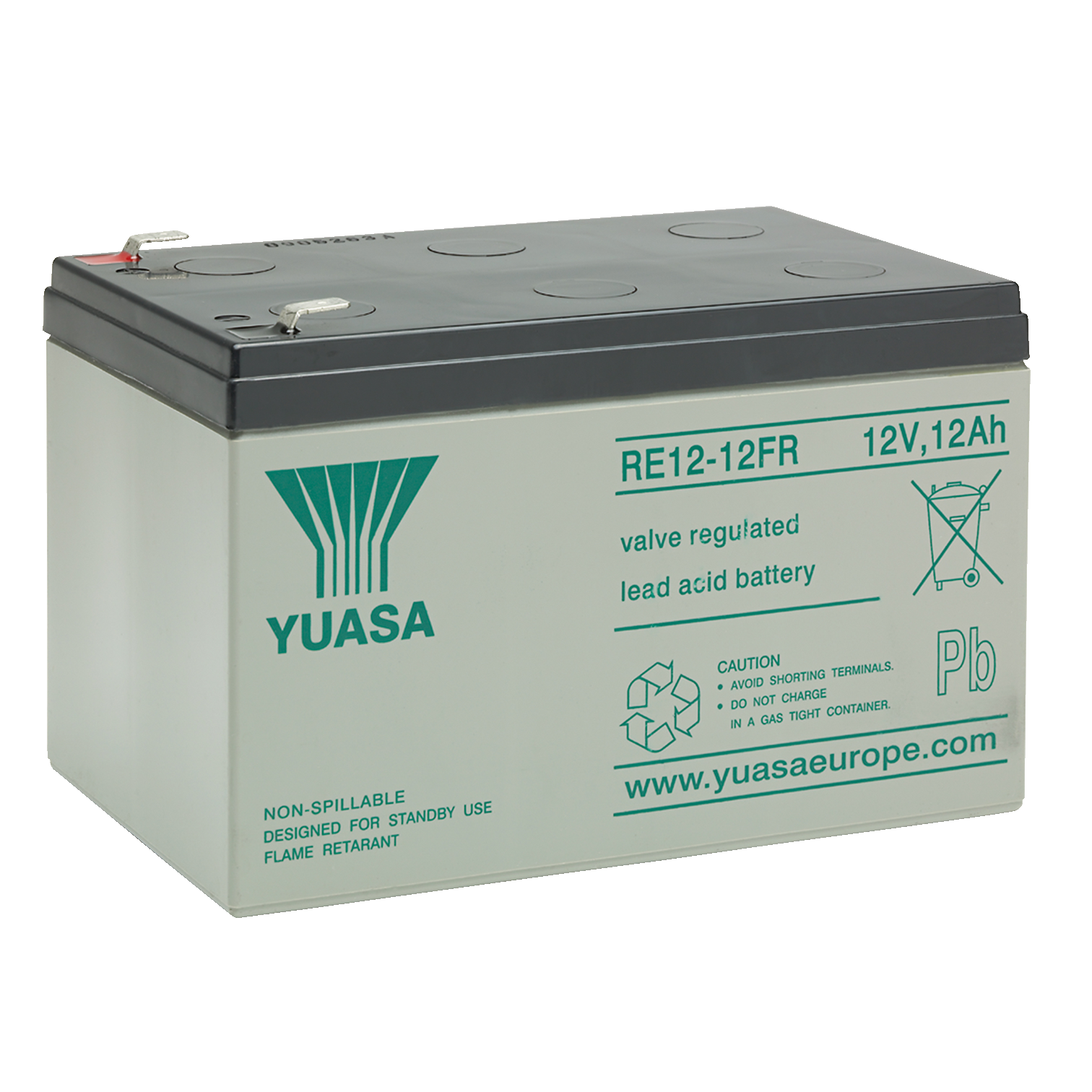

RE12-12FR
