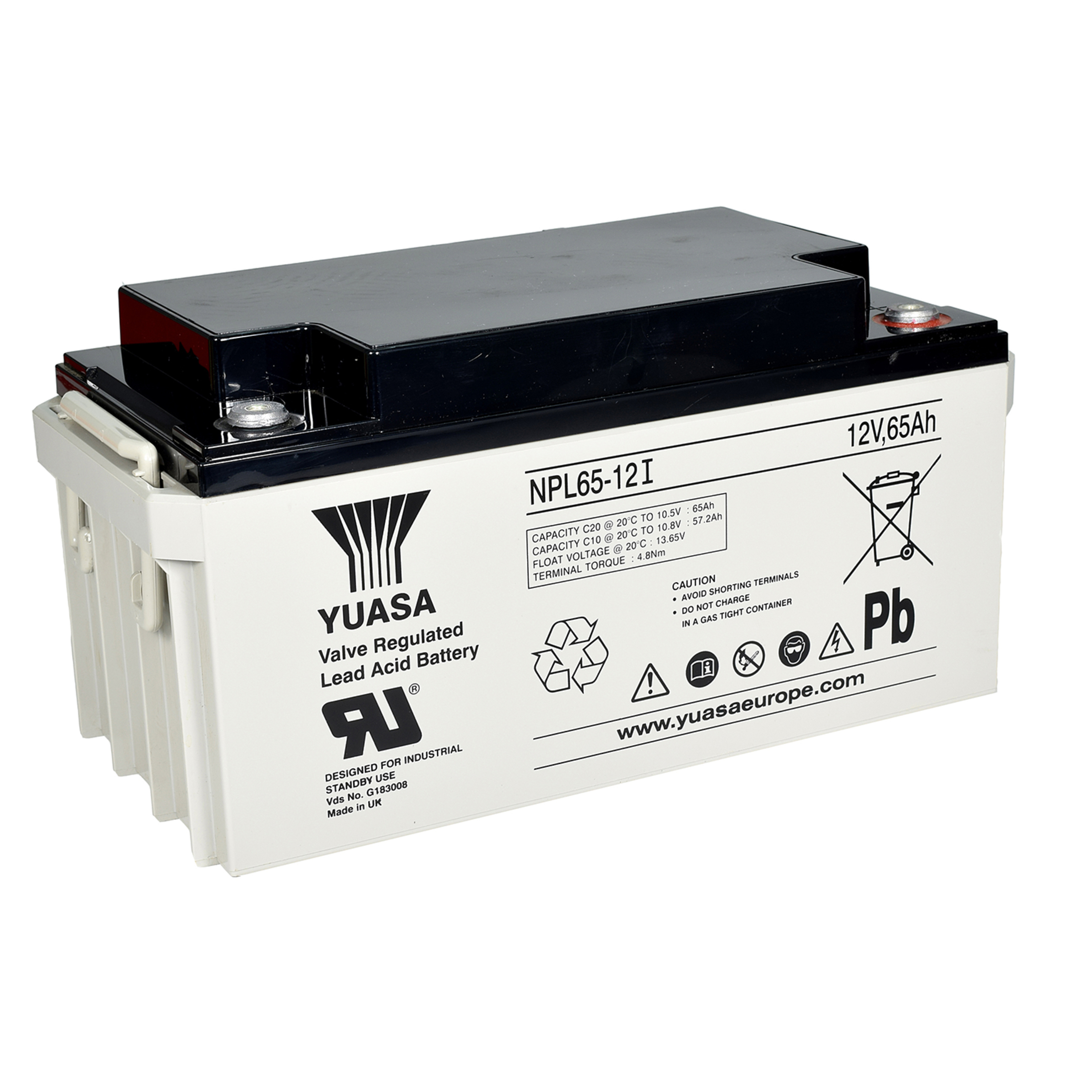

NPL65-12I
Yuasa Lead-acid battery NPL 12V 65.000mAh L350mm B166mm H Internal Thread M6
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1 Pcs. in stock
Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Rated Voltage
- 12 V
- Nominal capacity
- 65,000 mAh
- Chemical system
- Lead Acid
Specifications
Open all
Operating conditions
- Operating temperature, charge, min.
- -15 °C
- Operating temperature, charge, max.
- 50 °C
- Operating temperature, discharge, min.
- -20 °C
- Operating temperature, discharge, max.
- 60 °C
- Self-discharge (% p.m.)
- 3 %/Monat
- Expected life (EUROBAT)
- 10 Jahre
- Storage Temperature Min.
- -20 °C
- Storage Temperature Max.
- 50 °C
Electrical features
- Nominal capacity
- 65,000 mAh
- Impedance
- 5 mOhm
- Rated Voltage
- 12 V
- Charge voltage, standard
- 13.65 V
- Charge voltage, max.
- 14.5 V
Safety/Certifications
- Approvals
- UL
Documents
GS-Yuasa_Gebrauchsanleitung-NP-SWL.pdf
NPL-Shortform.pdf
SDS-01-VRLA-Industrial-Batteries-Rev-18_02-06-2021_DE.pdf
GS-Yuasa_Gebrauchsanleitung-NP-SWL.pdf
NPL-Shortform.pdf
SDS-01-VRLA-Industrial-Batteries-Rev-18_02-06-2021_DE.pdf
