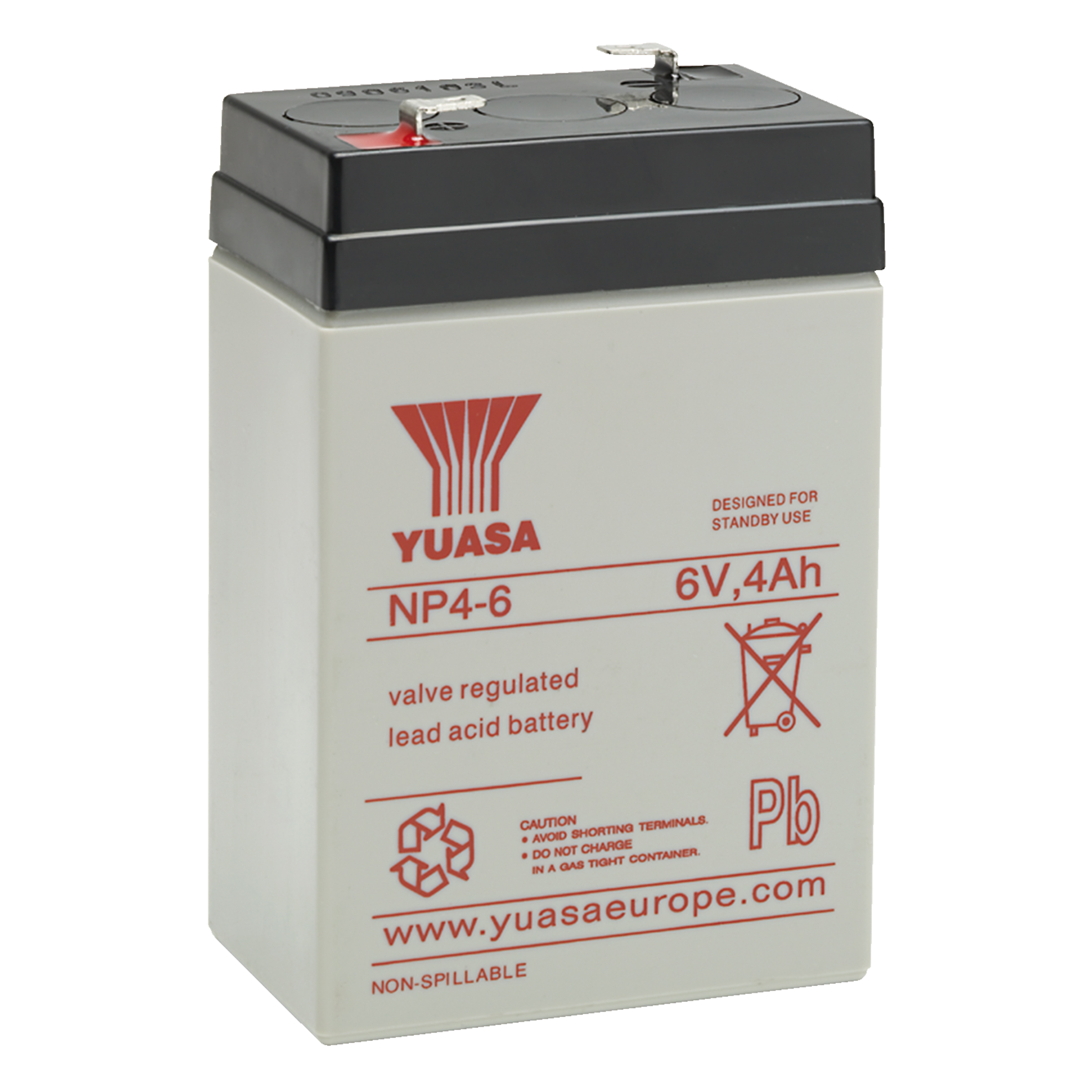

NP4-6
Yuasa Lead-acid batteries NP 6V 4.000mAh L70mm B47mm H Male Tab Connector 4,8
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 07.10.2025
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- UN Number (Dangerous Goods)
- 2800 - Batteries, wet, leak-proof
- Rated Voltage
- 6 V
- Nominal capacity
- 4,000 mAh
- Chemical system
- Lead acid (Pb)
Specifications
Open all
Operating conditions
- Operating temperature, charge, min.
- -15 °C
- Operating temperature, charge, max.
- 50 °C
- Operating temperature, discharge, min.
- -20 °C
- Operating temperature, discharge, max.
- 60 °C
- Self-discharge (% p.m.)
- 3 %/Monat
- Expected life (EUROBAT)
- 3 Jahre
- Storage Temperature Min.
- -20 °C
- Storage Temperature Max.
- 60 °C
Electrical features
- Nominal capacity
- 4,000 mAh
- Impedance
- 20 mOhm
- Rated Voltage
- 6 V
- Charge voltage, standard
- 6.825 V
- Charge voltage, max.
- 7.26 V
- Discharge current, max.
- 120,000 mA
Safety/Certifications
- Approvals
- VdS; UL
Hazardous Substances/Goods
- UN Number (Dangerous Goods)
- 2800 - Batteries, wet, leak-proof
Documents
GS-Yuasa_Gebrauchsanleitung-NP-SWL.pdf
NP-Shortform.pdf
SDS_01_VRLA_Industrial_Batteries_Issue_23_b662.pdf
SDS_01_VRLA_Industrial_Batteries_Rev_23_DE_f25c.pdf
Other Products
All Products of the Series
