Manufacturer Part No.

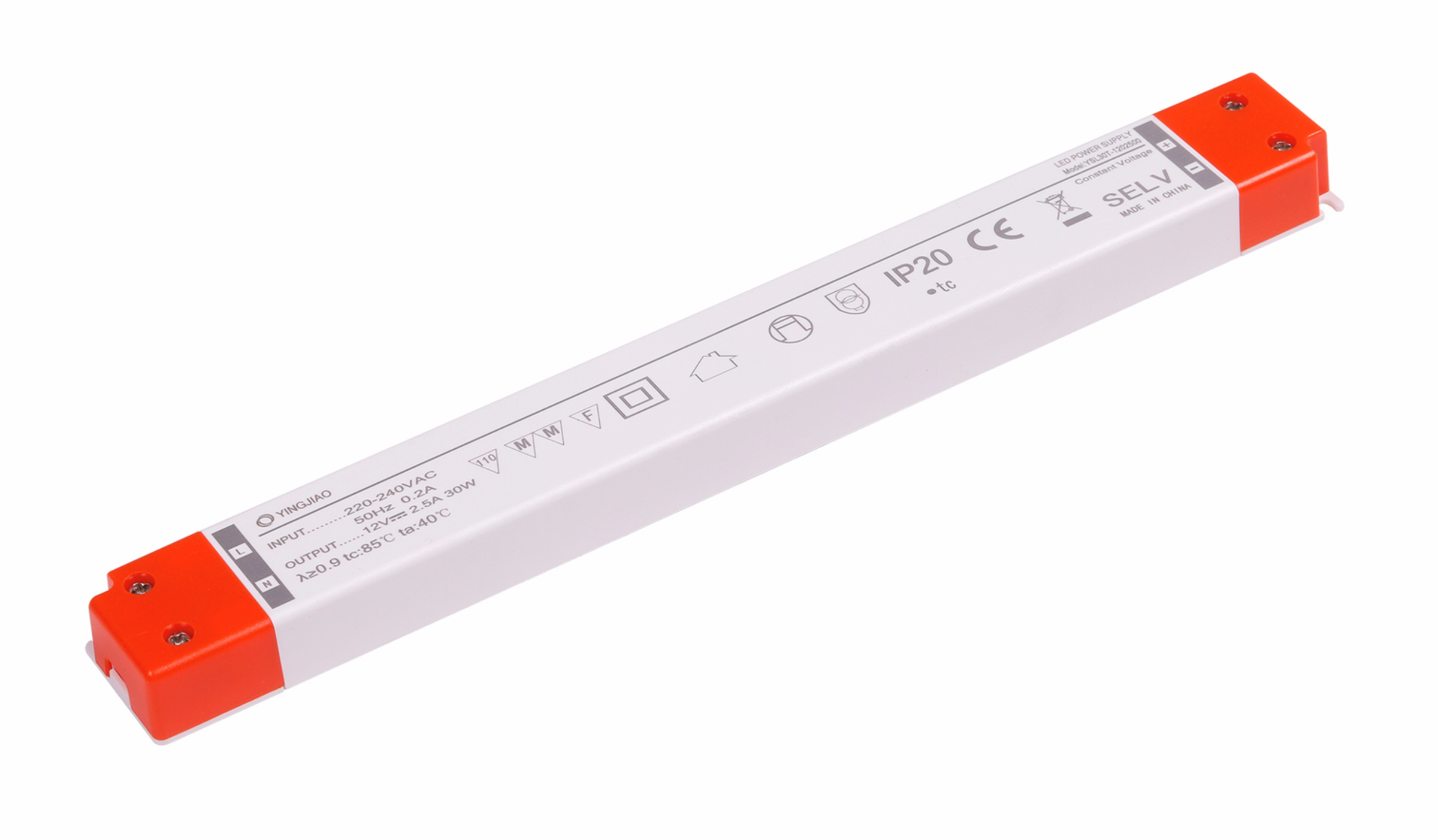

YSL30T-2401250
Schukat Part No.
YSL30T-2401250
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 17 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Qty in Pcs. Price per 1 Pcs.
Price Type
STP = Standard price
RRP = Recommended retail price
CPL = Customer price list
1 9,55 € RRP
25 9,12 € RRP
50 8,70 € RRP
100 8,27 € RRP
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs. 9,55 €

Quantity and Options

(at least 1 or multiple of 1)
Price per 1 Pcs.
9,55 €

Ext. Price

9,55 €
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Operating mode
CV
Output Power
30 W
Output voltage
24 V
Output current
1.250 A
Protection Class IP
IP20
Interfaces
not dimmable
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Yingjiao
Series
  • YSL30T-30W
Product group
  • M7434
Application
  • Lighting
Operating mode
  • CV
Package/Case
  • Enclosed Plastic
Dimension: Length
  • 251 mm
Dimension: Width
  • 30 mm
Dimension: Height
  • 17 mm
Weight
  • 150 g
Label
  • SELV; MM-Zeichen
Dimmable
Interfaces
  • not dimmable
Manufacturer's warranty (years)
  • 5
Features
  • Flicker Free
  • Independent Control Gear

Operating conditions

MTBF
  • 200,000 h
Operating expectation
  • 30,000 h
Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 45 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 85 °C

Input

Mains frequency min.
  • 50 Hz
Mains frequency max.
  • 60 Hz
Input voltage min. AC
  • 220 V
Input voltage max. AC
  • 240 V
Input current
  • 0.3 A
Efficiency
  • 86 %
No load power, less than
  • 0.5 W
Leakage current, max.
  • 0.25 mA
Inrush current, max.
  • 65 A
Power factor correction (PFC)
Power factor
  • 0.9
Connection type, input
  • Screw Terminal

Output

Number of outputs
  • 1
Output Power
  • 30 W
Output voltage
  • 24 V
Output voltage tolerance
  • -5 %
Ripple & Noise
  • 400 mVp-p
Selectable output current
Output current
  • 1.250 A
Output current tolerance
  • -5 %
Overload protection
Type of overload protection
  • Hiccup
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Screw Terminal

Safety/Certifications

Protection class
  • II
Protection Class IP
  • IP20
Isolation voltage I/P-O/P
  • 3,750 V
Approvals
  • CE
  • EN
  • UKCA
Standards (EMC)
  • EN 55015
Standards (safety)
  • EN 61347-1
  • EN 61347-2-13
