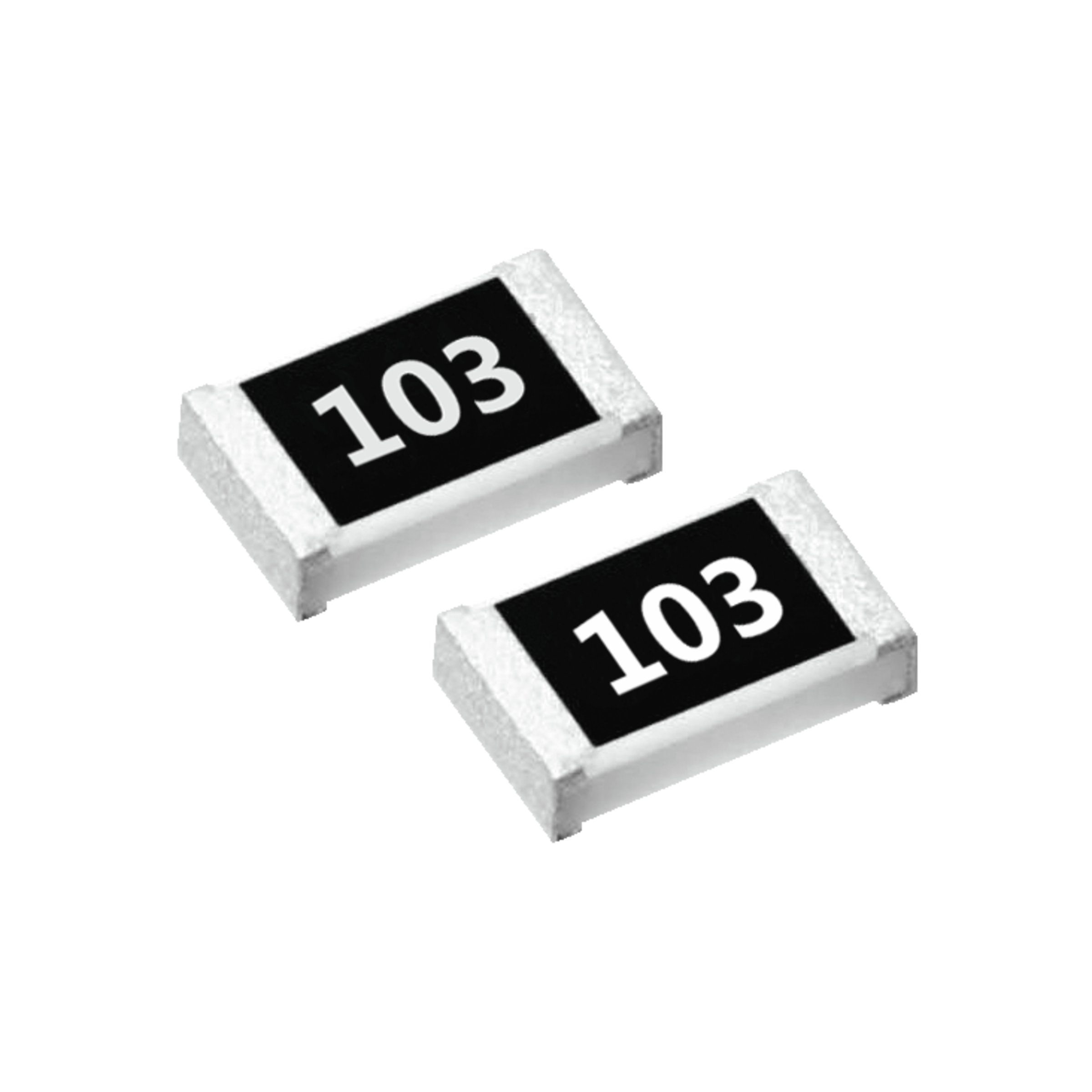

AC1206FR-0710RL
Yageo SMD thick film resistor AC1206 1206 0,25W 10Ohm 1% AEC-Q200
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
15.000 Pcs. in stock
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 5000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5000 or multiple of 5000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Thick film resistor
- Series
- AC1206
- Housing
- 1206
- Rated power
- 0.25 W
- Resistance
- 10 Ohm
- Resistance tolerance
- 1 %
- Qualification
- AEC-Q200
- RoHS-Conform
Specifications
Open all

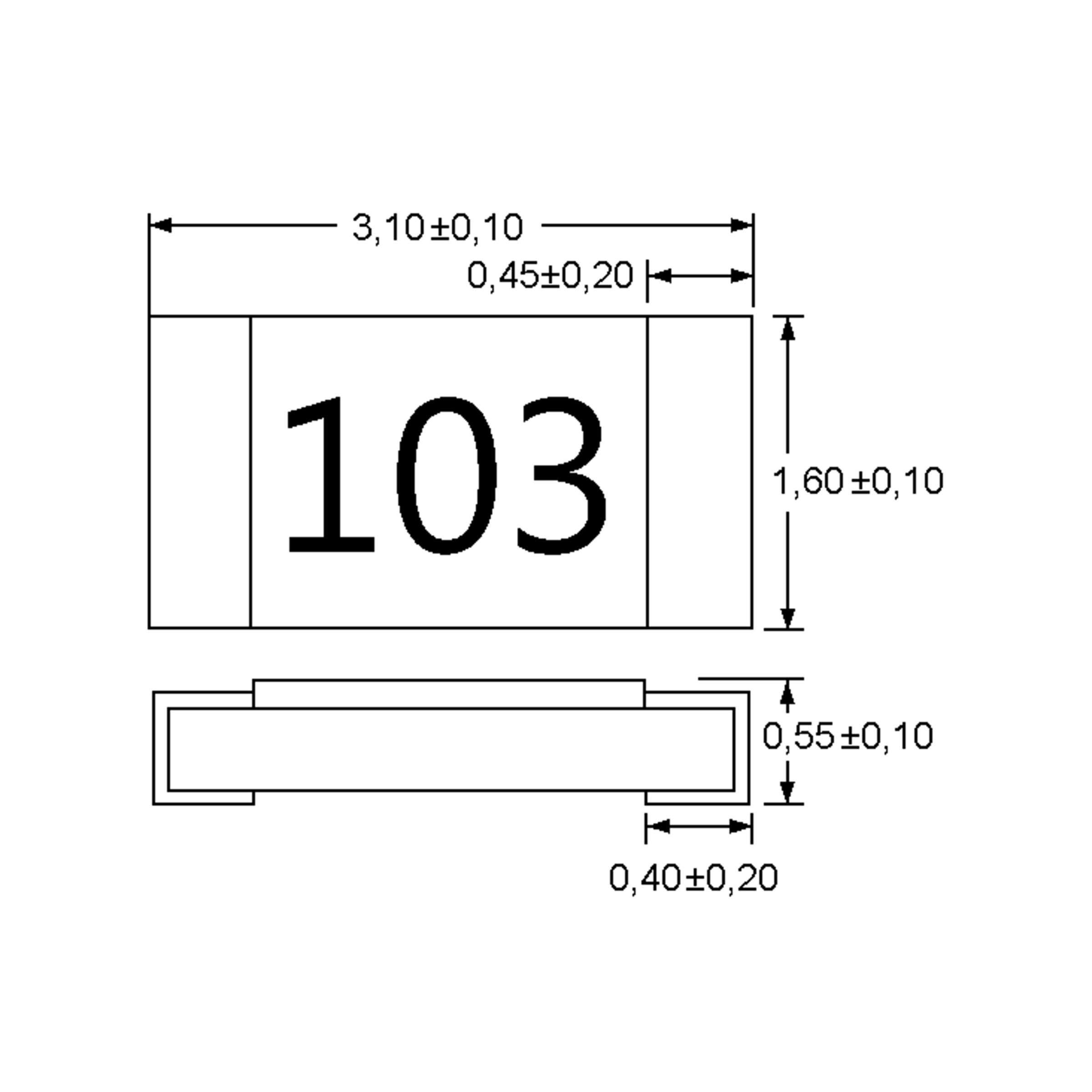

Dimensions and Weights
- Dimension: Length
- 3.1 mm
- Dimension: Width
- 1.6 mm
- Dimension: Height
- 0.55 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 155 °C
Technical Features
- Resistance value
- 10
- Resistance unit
- Ohm
- Resistance
- 10 Ohm
- Resistance tolerance
- 1 %
- Rated current
- 2,000 mA
- Rated power
- 0.25 W
- Max. Operating voltage (DC)
- 200 V DC
- Max. Operating voltage (AC)
- 200 V AC
- Temperature coefficient
- 200 ppm/°
Safety/Certifications
- Qualification
- AEC-Q200
- Standards
- EN 140401-802, IPC-SM-782
