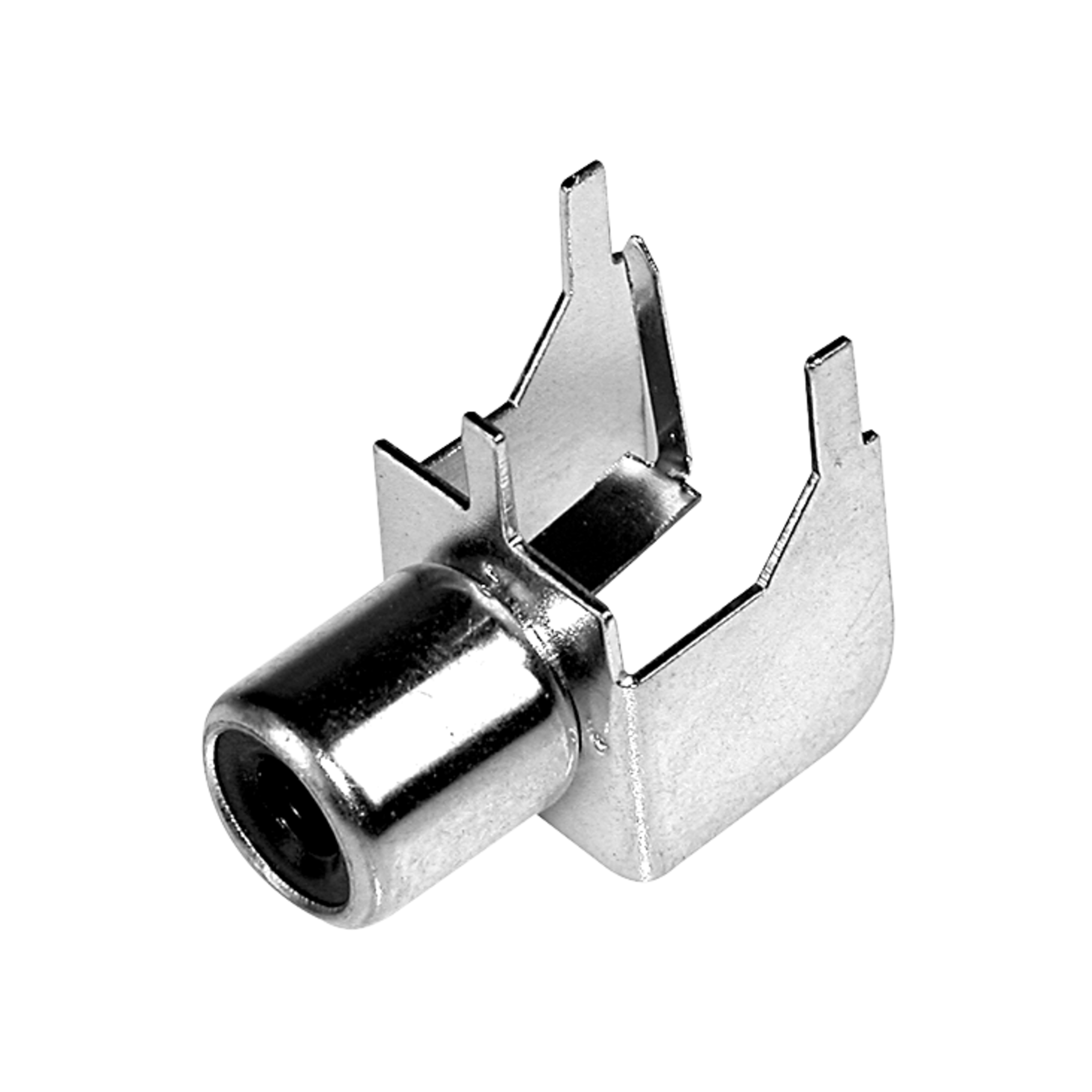

RCA400SW
Socket RCA PCB Socket round 90° Solder 14mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2.350 Pcs. in stock
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Socket
- Connector Contact
- Solder
- Series
- RCA
- Colour
- black
- Housing
- round
- Design
- PCB
- Contact Type
- Cinch
- Locking
- no
- Alignment
- 90°
- Operating Temperature Max.
- 70 °C
- Rated current
- 0.5 A
- Rated voltage DC
- 50 V DC
- Operating Temperature Min.
- -25 °C
- RoHS-Conform
Specifications
Open all

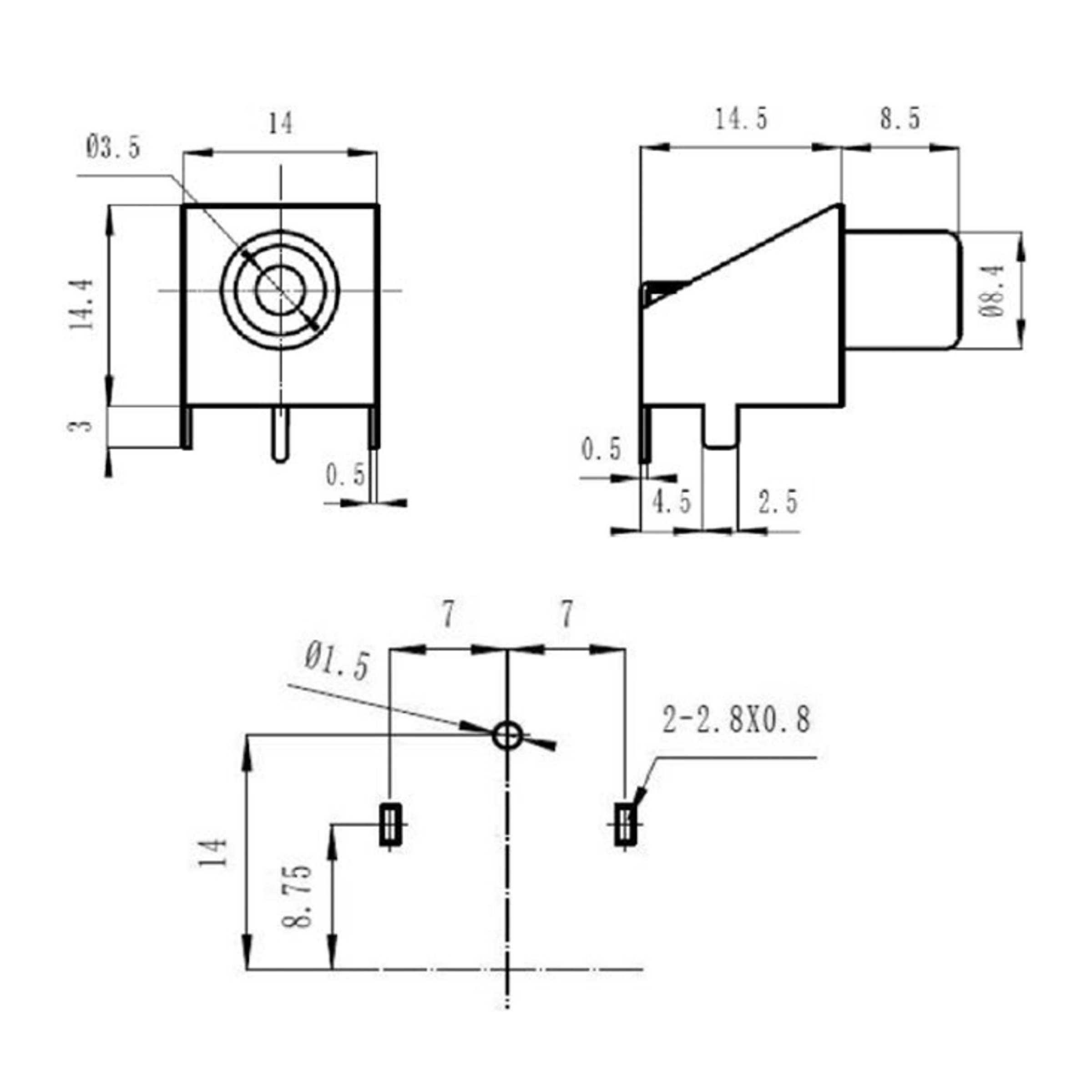

Dimensions and Weights
- Dimension: Length
- 14 mm
- Dimension: Width
- 23 mm
- Dimension: Height
- 14.4 mm
- Height (incl. pins)
- 17.4 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Rated current
- 0.5 A
- Rated voltage DC
- 50 V DC
- Insulation resistance
- 100 x 10^6 MOhm
- Contact resistance
- 15 mOhm
Mechanical Features
- Durability
- 1,000
- Insertion force per contact, max.
- 25 N
- Insertion force per contact, min.
- 70 N
- Contact Surface Input
- vernickelt
