XP56

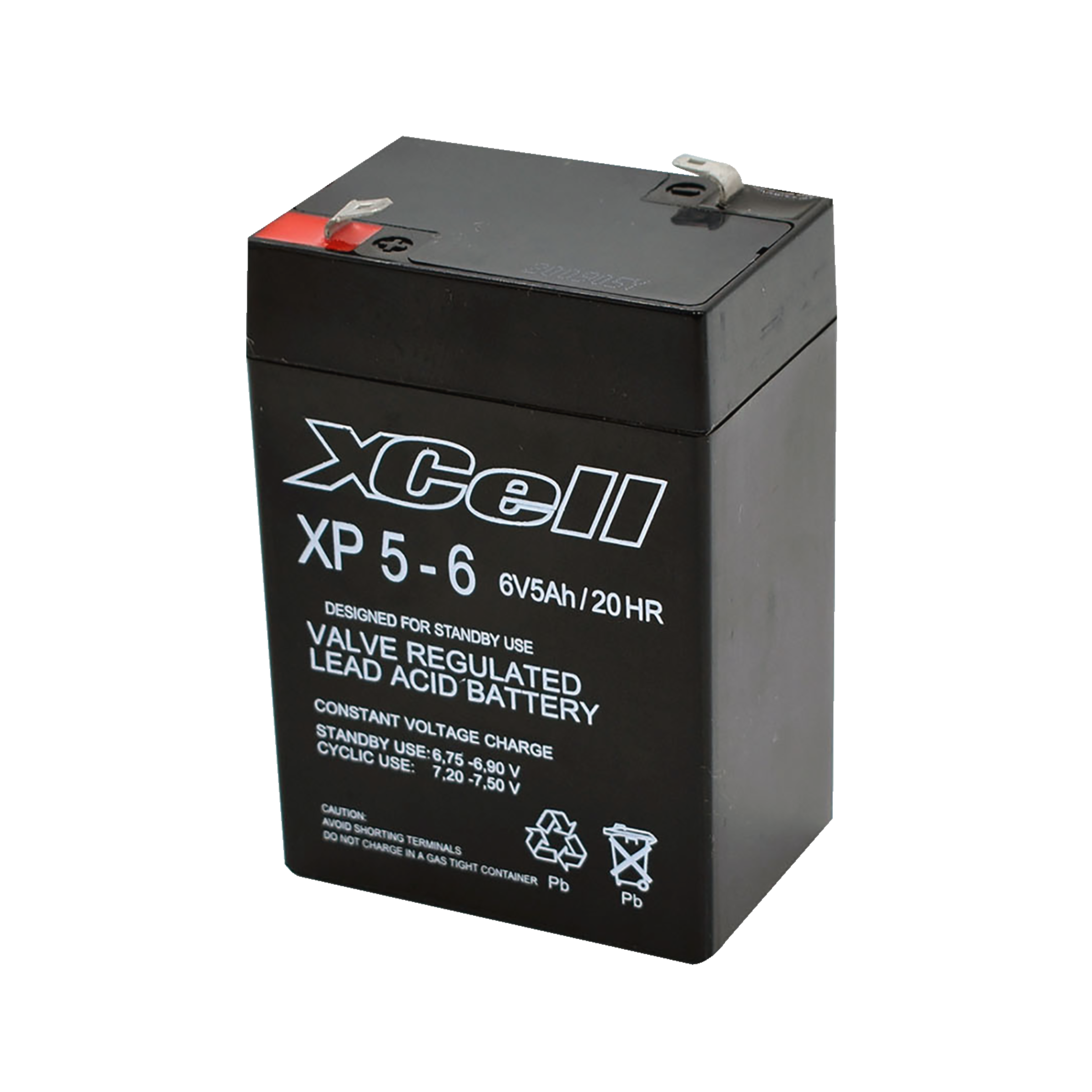

XCELL Lead-acid battery XP 6V 5.000mAh L70mm B47mm H101mm Male Tab Connector 4,8
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
10 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Rated Voltage
- 6 V
- Nominal capacity
- 5,000 mAh
- Chemical system
- Lead Acid
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating temperature, charge, min.
- -10 °C
- Operating temperature, charge, max.
- 50 °C
- Operating temperature, discharge, min.
- -15 °C
- Operating temperature, discharge, max.
- 50 °C
- Self-discharge (% p.m.)
- 3 %/Monat
- Expected life (EUROBAT)
- 10 Jahre
- Storage Temperature Min.
- -20 °C
- Storage Temperature Max.
- 50 °C
Electrical features
- Nominal capacity
- 5,000 mAh
- Rated Voltage
- 6 V
- Charge voltage, standard
- 6.8 V
- Charge voltage, max.
- 6.9 V
- Charge current, max.
- 1,500 mA
- Discharge current, max.
- 75,000 mA
Safety/Certifications
- Approvals
- VdS; UL; CE
Hazardous Substances/Goods
- UN number
- 2800 - Batteries, wet, leak-proof
