XCEC5000NIMH1B

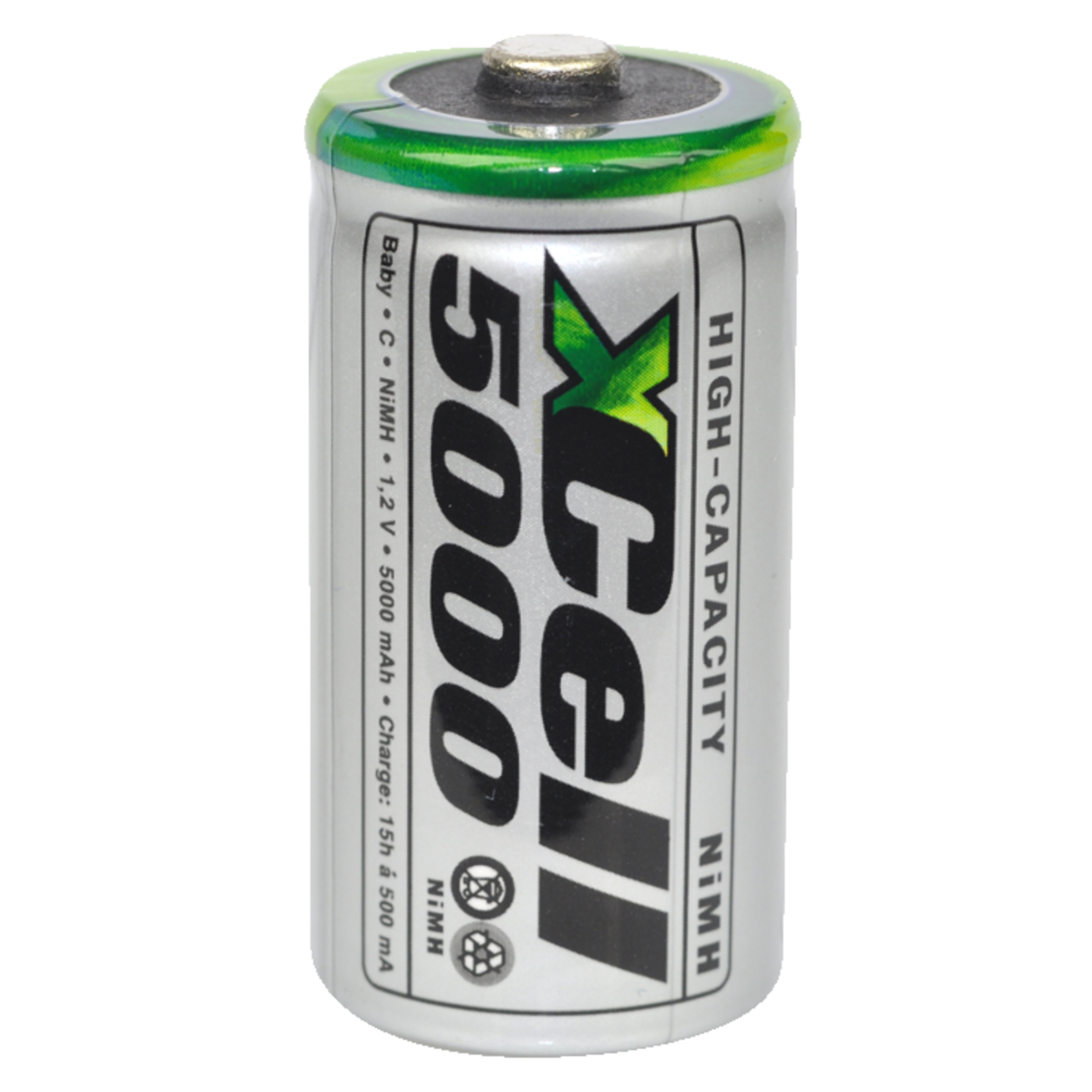

XCELL Nickel Metal Hydride Round Cell NiMH 1,2V 5.000mAh HR14 C, Baby
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Back Order
0 Pcs.
0 Pcs.
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 28.10.2024
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Rated Voltage
- 1.2 V
- Nominal capacity
- 5,000 mAh
- Chemical system
- Nickel Metal Hydride
- IEC Code
- HR14
- Other designation
- C, Baby
Specifications
Open all
Operating conditions
- Operating temperature, charge, min.
- 0 °C
- Operating temperature, charge, max.
- 45 °C
- Operating temperature, discharge, min.
- -20 °C
- Operating temperature, discharge, max.
- 60 °C
- Shelf life, IEC
- 500 Zyklen
- Storage Temperature Min.
- -5 °C
- Storage Temperature Max.
- 35 °C
Electrical features
- Nominal capacity
- 5,000 mAh
- Rated Voltage
- 1.2 V
- Charge voltage, max.
- 1.2 V
- Charge end voltage
- 1 V
- Charge current, standard
- 500 mA
Documents
JYH NiMH battery MSDS(2022).pdf
JYH NiMH battery MSDS(2022).pdf
