LFP1212S

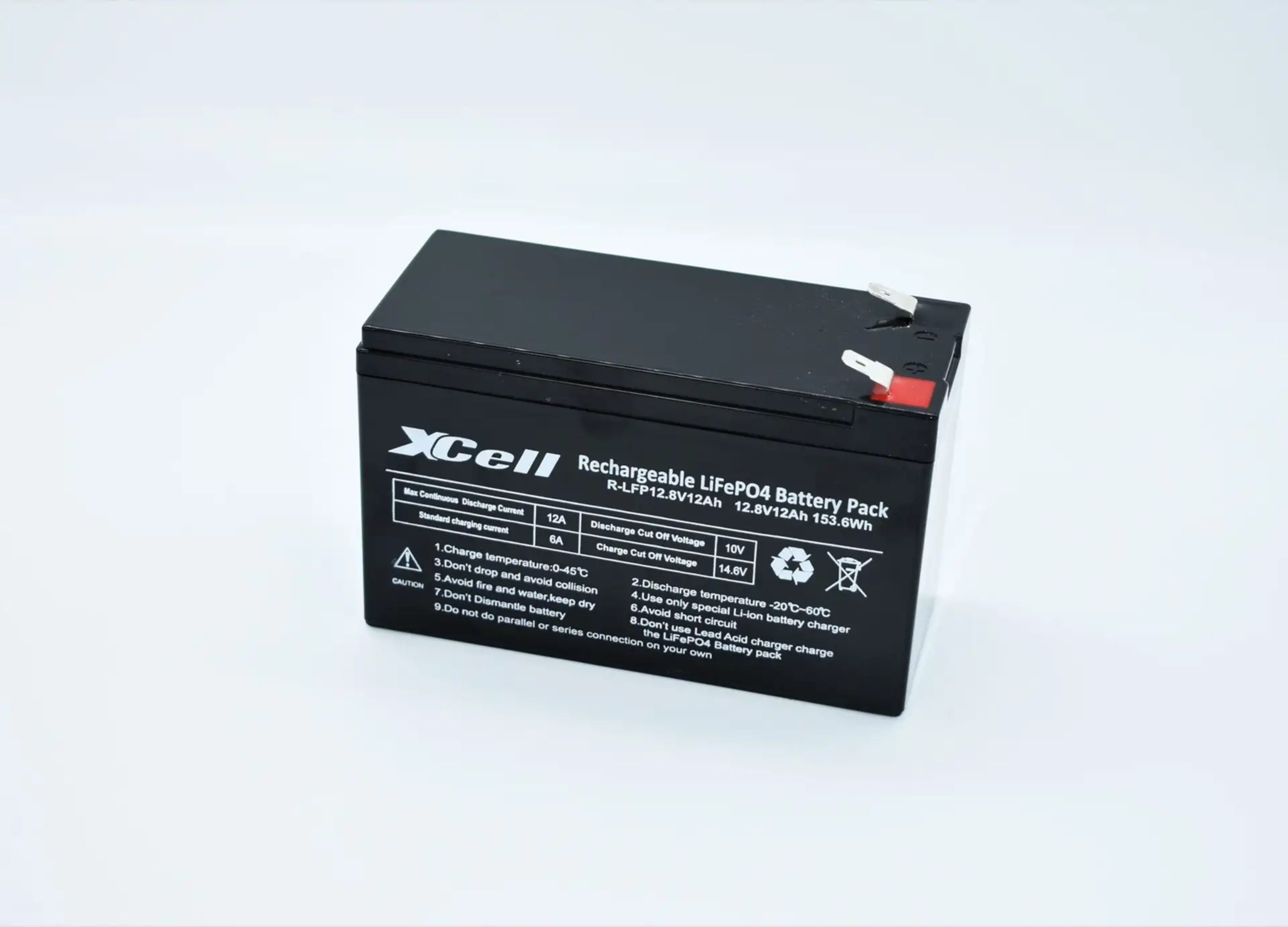

XCELL Prismatic Cell Accu LFP-12 Lithium iron phosphate (LiFePO4) 12,8V 12.000mAh
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- UN Number (Dangerous Goods)
- 3480 - Lithium-ion battery
- Rated Voltage
- 12.8 V
- Nominal capacity
- 12,000 mAh
- Chemical system
- Lithium iron phosphate (LiFePO4)
Specifications
Open all
Operating conditions
- Operating temperature, charge, min.
- 0 °C
- Operating temperature, charge, max.
- 50 °C
- Operating temperature, discharge, min.
- -20 °C
- Operating temperature, discharge, max.
- 55 °C
- Charging cycles
- 2000
Electrical features
- Nominal capacity
- 12,000 mAh
- Energy storage, capacity
- 153.6 Wh
- Rated Voltage
- 12.8 V
- Charge voltage, standard
- 14.6 V
- Charge end voltage
- 11.2 V
- Charge current, standard
- 6,000 mA
- Charge current, max.
- 12,000 mA
- Discharge current, max.
- 12,000 mA
Safety/Certifications
- Approvals
- CE
Hazardous Substances/Goods
- UN Number (Dangerous Goods)
- 3480 - Lithium-ion battery
Documents
XCell_MSDS.pdf
