Results (533)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Type | Manufacturer | Assembly Type | Housing | Form of Delivery | Resistance value | Resistance unit | Resistance tolerance | Temperature coefficient | Rated power | Dimension: Length | Dimension: Width | Dimension: Height | Diameter, resistor body | Pitch | Operating Temperature Min. | Operating Temperature Max. | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
426 |  | Manufacturers Part No. WSL2512R1500FEA(WSL2512R150) Vishay SMD Metal band resistor WSL2512 2512 1,0W 0,15Ohm 1% AEC-Q200 | Customer Part No. Customer Project No. | 4.100 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 50 or mul. of 50) | Metal band resistor | Vishay | SMD | 2512 | strapped | 0.15 | Ohm | 1.0 % | 75 ppm/° | 1.0 W | 6.35 mm | 3.18 mm | 0.635 mm | -65.0 °C | 170.0 °C | AEC-Q200 | |||||||

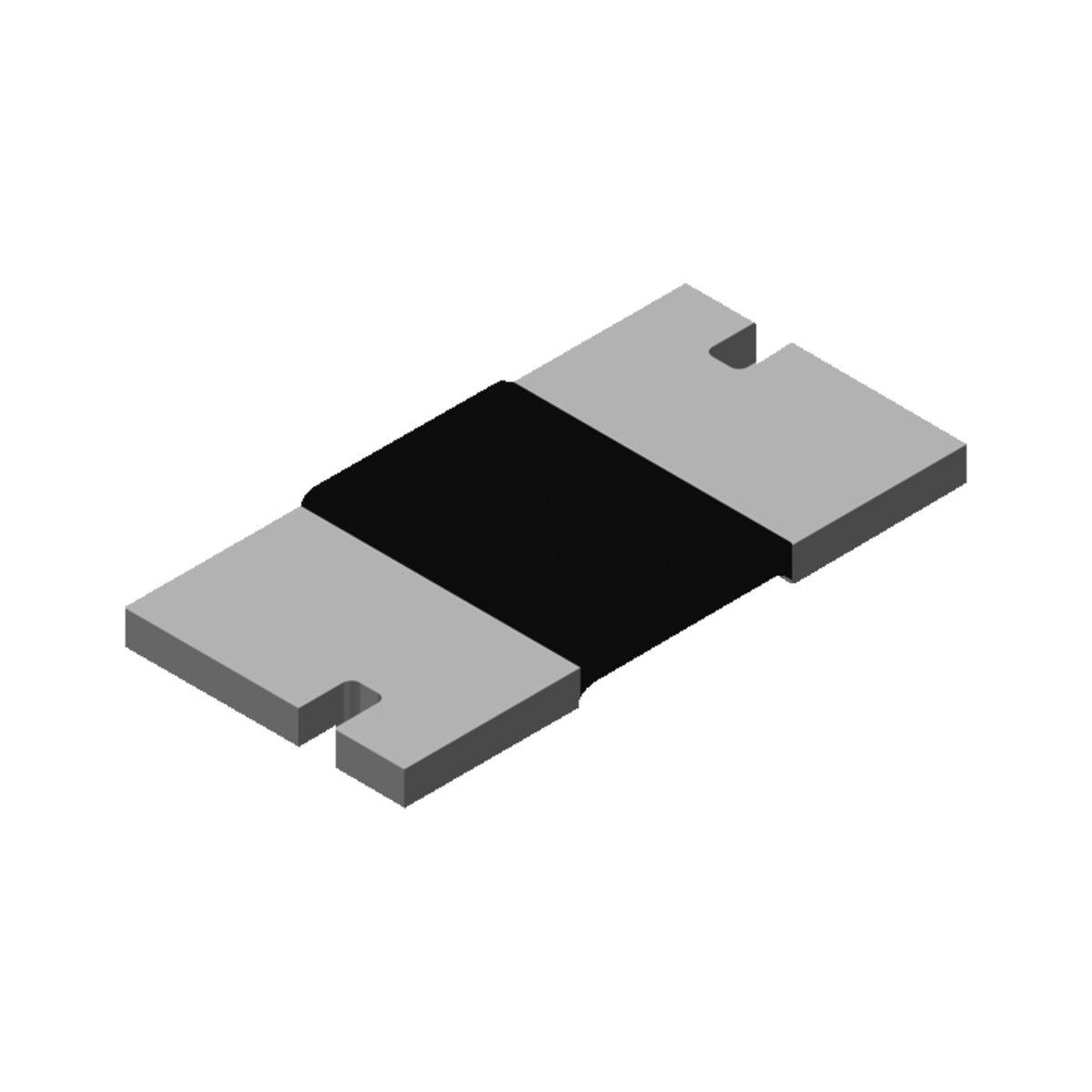

427 | | Manufacturers Part No. WSK25122L000FEA(WSK25122L00) Vishay SMD Metal band resistor WSK2512 2512 1W 0,002Ohm 1% AEC-Q200 | Customer Part No. Customer Project No. | 1.940 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Metal band resistor | Vishay | SMD | 2512 | strapped | 0.002 | Ohm | 1.0 % | 250 ppm/° | 1.0 W | 6.35 mm | 3.18 mm | 0.635 mm | -65.0 °C | 170.0 °C | AEC-Q200 | |||||||

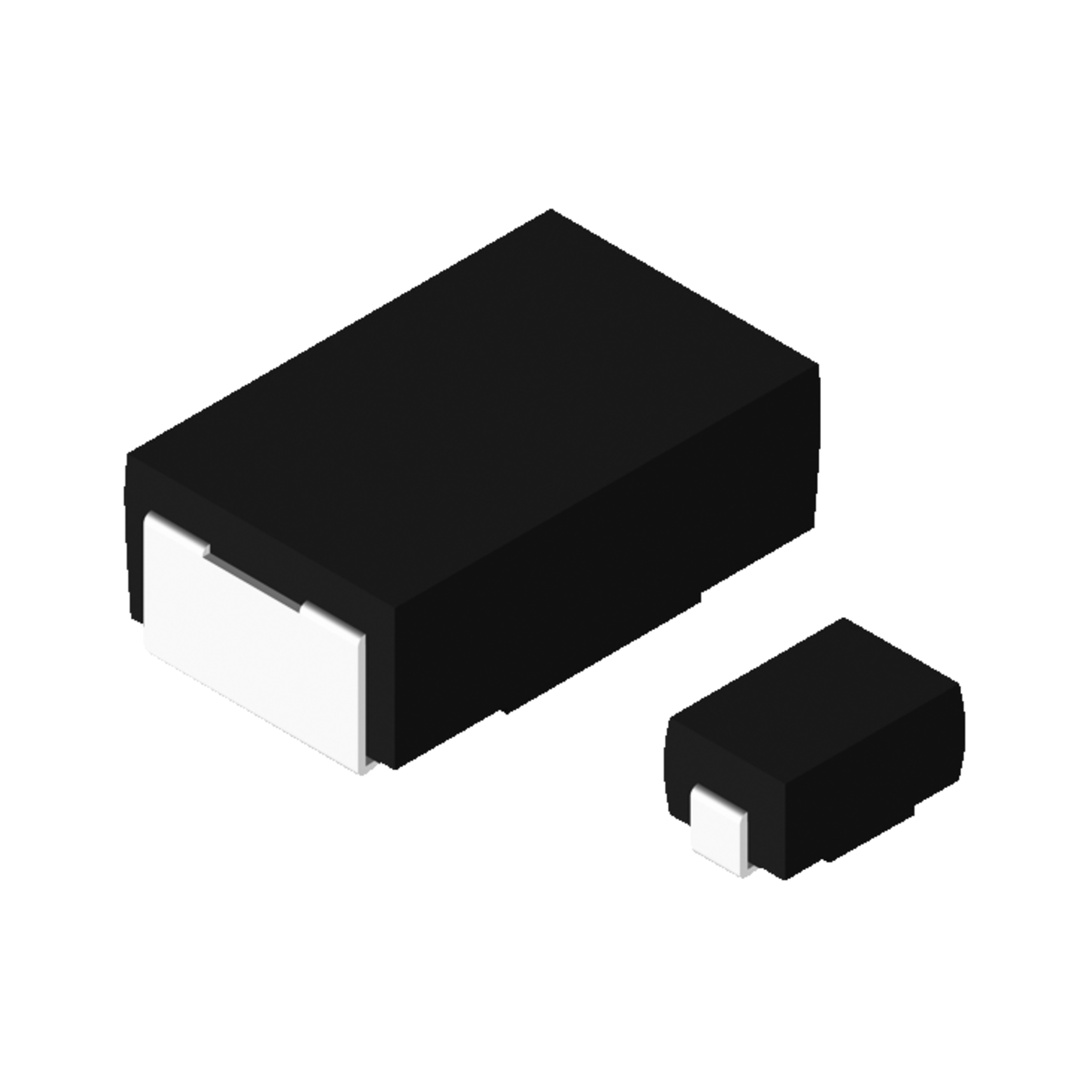

428 | | Manufacturers Part No. WSR3R0100FEA(WSR3R010) Vishay SMD Metal band resistor WSR3 4527 3W 0,01Ohm 1% AEC-Q200 | Customer Part No. Customer Project No. | 920 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Metal band resistor | Vishay | SMD | 4527 | strapped | 0.01 | Ohm | 1.0 % | 75 ppm/° | 3.0 W | 11.56 mm | 6.98 mm | 2.41 mm | -65.0 °C | 275.0 °C | AEC-Q200 | |||||||
429 | | Manufacturers Part No. WSR2R2200FEA(WSR2R220) Vishay SMD Metal band resistor WSR2 4527 2W 0,22Ohm 1% AEC-Q200 | Customer Part No. Customer Project No. | 2.910 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Metal band resistor | Vishay | SMD | 4527 | strapped | 0.22 | Ohm | 1.0 % | 110 ppm/° | 2.0 W | 11.56 mm | 6.98 mm | 2.41 mm | -65.0 °C | 275.0 °C | AEC-Q200 | |||||||
430 | | Manufacturers Part No. WSR3R1000FEA(WSR3R100) Vishay SMD Metal band resistor WSR3 4527 3W 0,1Ohm 1% AEC-Q200 | Customer Part No. Customer Project No. | 720 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Metal band resistor | Vishay | SMD | 4527 | strapped | 0.1 | Ohm | 1.0 % | 75 ppm/° | 3.0 W | 11.56 mm | 6.98 mm | 2.41 mm | -65.0 °C | 275.0 °C | AEC-Q200 | |||||||

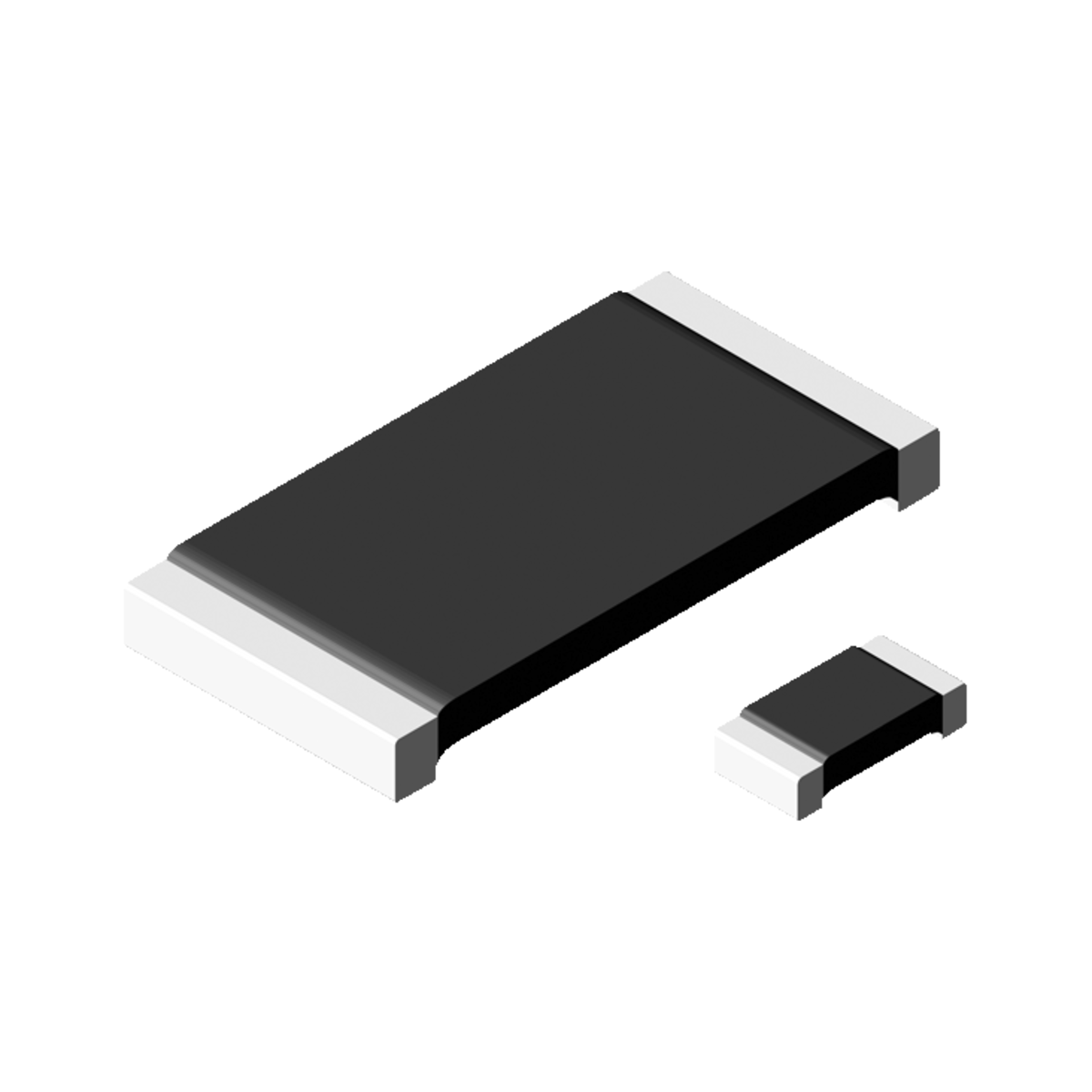

431 | | Manufacturers Part No. WSL1206R0600FEA(WSL1206R060) Vishay SMD Metal band resistor WSL1206 1206 0,25W 0,06Ohm 1% AEC-Q200 | Customer Part No. Customer Project No. | 3.100 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 50 or mul. of 50) | Metal band resistor | Vishay | SMD | 1206 | strapped | 0.06 | Ohm | 1.0 % | 20 ppm/° | 0.25 W | 3.2 mm | 1.6 mm | 0.635 mm | -65.0 °C | 170.0 °C | AEC-Q200 | |||||||
432 | | Manufacturers Part No. WSL2010R3300FEA(WSL2010R330) Vishay SMD Metal band resistor WSL2010 2010 0,5W 0,33Ohm 1% AEC-Q200 | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 18 Weeks Available on order | (at least 4000 or mul. of 4000) | Metal band resistor | Vishay | SMD | 2010 | strapped | 0.33 | Ohm | 1.0 % | 20 ppm/° | 0.5 W | 5.08 mm | 2.54 mm | 0.635 mm | -65.0 °C | 170.0 °C | AEC-Q200 | |||||||
433 | | Manufacturers Part No. WSL2512R2200FEA(WSL2512R220) Vishay SMD Metal band resistor WSL2512 2512 1,0W 0,22Ohm 1% AEC-Q200 | Customer Part No. Customer Project No. | 1.600 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 50 or mul. of 50) | Metal band resistor | Vishay | SMD | 2512 | strapped | 0.22 | Ohm | 1.0 % | 75 ppm/° | 1.0 W | 6.35 mm | 3.18 mm | 0.635 mm | -65.0 °C | 170.0 °C | AEC-Q200 | |||||||
434 | | Manufacturers Part No. WSL120600000ZEA9(WSL1206R000) Vishay SMD Metal band resistor WSL1206 1206 0,25W 0Ohm 1% AEC-Q200 | Customer Part No. Customer Project No. | 650 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 50 or mul. of 50) | Metal band resistor | Vishay | SMD | 1206 | strapped | 0.0 | Ohm | 1.0 % | 20 ppm/° | 0.25 W | 3.2 mm | 1.6 mm | 0.635 mm | -65.0 °C | 170.0 °C | AEC-Q200 | |||||||
435 | | Manufacturers Part No. WSL1206R0100FEA(WSL1206R010) Vishay SMD Metal band resistor WSL1206 1206 0,25W 0,01Ohm 1% AEC-Q200 | Customer Part No. Customer Project No. | 4.300 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 50 or mul. of 50) | Metal band resistor | Vishay | SMD | 1206 | strapped | 0.01 | Ohm | 1.0 % | 20 ppm/° | 0.25 W | 3.2 mm | 1.6 mm | 0.635 mm | -65.0 °C | 170.0 °C | AEC-Q200 | |||||||
436 | | Manufacturers Part No. WSK2512R0200FEA(WSK2512R020) Vishay SMD Metal band resistor WSK2512 2512 1W 0,02Ohm 1% AEC-Q200 | Customer Part No. Customer Project No. | 860 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Metal band resistor | Vishay | SMD | 2512 | strapped | 0.02 | Ohm | 1.0 % | 35 ppm/° | 1.0 W | 6.35 mm | 3.18 mm | 0.635 mm | -65.0 °C | 170.0 °C | AEC-Q200 | |||||||
437 | | Manufacturers Part No. WSL1206R0200FEA(WSL1206R020) Vishay SMD Metal band resistor WSL1206 1206 0,25W 0,02Ohm 1% AEC-Q200 | Customer Part No. Customer Project No. | 3.150 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 50 or mul. of 50) | Metal band resistor | Vishay | SMD | 1206 | strapped | 0.02 | Ohm | 1.0 % | 20 ppm/° | 0.25 W | 3.2 mm | 1.6 mm | 0.635 mm | -65.0 °C | 170.0 °C | AEC-Q200 | |||||||
438 | | Manufacturers Part No. WSL1206R0500FEA(WSL1206R050) Vishay SMD Metal band resistor WSL1206 1206 0,25W 0,05Ohm 1% AEC-Q200 | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 20 Weeks Available on order | (at least 4000 or mul. of 4000) | Metal band resistor | Vishay | SMD | 1206 | strapped | 0.05 | Ohm | 1.0 % | 20 ppm/° | 0.25 W | 3.2 mm | 1.6 mm | 0.635 mm | -65.0 °C | 170.0 °C | AEC-Q200 | |||||||
439 | | Manufacturers Part No. WSR21R000FEA(WSR21R00) Vishay SMD Metal band resistor WSR2 4527 2W 1Ohm 1% AEC-Q200 | Customer Part No. Customer Project No. | 1.630 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Metal band resistor | Vishay | SMD | 4527 | strapped | 1.0 | Ohm | 1.0 % | 75 ppm/° | 2.0 W | 11.56 mm | 6.98 mm | 2.41 mm | -65.0 °C | 275.0 °C | AEC-Q200 | |||||||
440 | | Manufacturers Part No. WSL2010R2200FEA(WSL2010R220) Vishay SMD Metal band resistor WSL2010 2010 0,5W 0,22Ohm 1% AEC-Q200 | Customer Part No. Customer Project No. | 8.250 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 50 or mul. of 50) | Metal band resistor | Vishay | SMD | 2010 | strapped | 0.22 | Ohm | 1.0 % | 20 ppm/° | 0.5 W | 5.08 mm | 2.54 mm | 0.635 mm | -65.0 °C | 170.0 °C | AEC-Q200 | |||||||
441 | | Manufacturers Part No. WSL2512R3300FEA(WSL2512R330) Vishay SMD Metal band resistor WSL2512 2512 1,0W 0,33Ohm 1% AEC-Q200 | Customer Part No. Customer Project No. | 2.550 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 50 or mul. of 50) | Metal band resistor | Vishay | SMD | 2512 | strapped | 0.33 | Ohm | 1.0 % | 75 ppm/° | 1.0 W | 6.35 mm | 3.18 mm | 0.635 mm | -65.0 °C | 170.0 °C | AEC-Q200 | |||||||
442 | | Manufacturers Part No. WSK2512R0100FEA(WSK2512R010) Vishay SMD Metal band resistor WSK2512 2512 1W 0,01Ohm 1% AEC-Q200 | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 10 Weeks Available on order | (at least 2000 or mul. of 2000) | Metal band resistor | Vishay | SMD | 2512 | strapped | 0.01 | Ohm | 1.0 % | 35 ppm/° | 1.0 W | 6.35 mm | 3.18 mm | 0.635 mm | -65.0 °C | 170.0 °C | AEC-Q200 | |||||||
443 | | Manufacturers Part No. WSR2R1000FEA(WSR2R100) Vishay SMD Metal band resistor WSR2 4527 2W 0,1Ohm 1% AEC-Q200 | Customer Part No. Customer Project No. | 1.120 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Metal band resistor | Vishay | SMD | 4527 | strapped | 0.1 | Ohm | 1.0 % | 110 ppm/° | 2.0 W | 11.56 mm | 6.98 mm | 2.41 mm | -65.0 °C | 275.0 °C | AEC-Q200 | |||||||
444 | | Manufacturers Part No. WSL2010R1500FEA(WSL2010R150) Vishay SMD Metal band resistor WSL2010 2010 0,5W 0,15Ohm 1% AEC-Q200 | Customer Part No. Customer Project No. | 3.100 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 50 or mul. of 50) | Metal band resistor | Vishay | SMD | 2010 | strapped | 0.15 | Ohm | 1.0 % | 20 ppm/° | 0.5 W | 5.08 mm | 2.54 mm | 0.635 mm | -65.0 °C | 170.0 °C | AEC-Q200 | |||||||
445 | | Manufacturers Part No. WSL2512R0500FEA(WSL2512R050) Vishay SMD Metal band resistor WSL2512 2512 1,0W 0,05Ohm 1% AEC-Q200 | Customer Part No. Customer Project No. | 350 Pcs. Available (from stock) | (at least 50 or mul. of 50) | Metal band resistor | Vishay | SMD | 2512 | strapped | 0.05 | Ohm | 1.0 % | 75 ppm/° | 1.0 W | 6.35 mm | 3.18 mm | 0.635 mm | -65.0 °C | 170.0 °C | AEC-Q200 | |||||||
446 | | Manufacturers Part No. WSR2R5000FEA(WSR2R500) Vishay SMD Metal band resistor WSR2 4527 2W 0,5Ohm 1% AEC-Q200 | Customer Part No. Customer Project No. | 1.360 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Metal band resistor | Vishay | SMD | 4527 | strapped | 0.5 | Ohm | 1.0 % | 110 ppm/° | 2.0 W | 11.56 mm | 6.98 mm | 2.41 mm | -65.0 °C | 275.0 °C | AEC-Q200 | |||||||
447 | | Manufacturers Part No. WSL2512R1000FEA(WSL2512R100) Vishay SMD Metal band resistor WSL2512 2512 1,0W 0,1Ohm 1% AEC-Q200 | Customer Part No. Customer Project No. | 3.850 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 50 or mul. of 50) | Metal band resistor | Vishay | SMD | 2512 | strapped | 0.1 | Ohm | 1.0 % | 75 ppm/° | 1.0 W | 6.35 mm | 3.18 mm | 0.635 mm | -65.0 °C | 170.0 °C | AEC-Q200 | |||||||
448 | | Manufacturers Part No. WSL2512R4700FEA(WSL2512R470) Vishay SMD Metal band resistor WSL2512 2512 1,0W 0,47Ohm 1% AEC-Q200 | Customer Part No. Customer Project No. | 1.550 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 50 or mul. of 50) | Metal band resistor | Vishay | SMD | 2512 | strapped | 0.47 | Ohm | 1.0 % | 75 ppm/° | 1.0 W | 6.35 mm | 3.18 mm | 0.635 mm | -65.0 °C | 170.0 °C | AEC-Q200 | |||||||
449 | | Manufacturers Part No. WSL2512R5000FEA(WSL2512R500) Vishay SMD Metal band resistor WSL2512 2512 1,0W 0,5Ohm 1% AEC-Q200 | Customer Part No. Customer Project No. | 2.450 Pcs. Planned Delivery Time Ø 16 Weeks Available (from stock) | (at least 50 or mul. of 50) | Metal band resistor | Vishay | SMD | 2512 | strapped | 0.5 | Ohm | 1.0 % | 75 ppm/° | 1.0 W | 6.35 mm | 3.18 mm | 0.635 mm | -65.0 °C | 170.0 °C | AEC-Q200 | |||||||
450 | | Manufacturers Part No. WSR2R3300FEA(WSR2R330) Vishay SMD Metal band resistor WSR2 4527 2W 0,33Ohm 1% AEC-Q200 | Customer Part No. Customer Project No. | 3.740 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 10 or mul. of 10) | Metal band resistor | Vishay | SMD | 4527 | strapped | 0.33 | Ohm | 1.0 % | 110 ppm/° | 2.0 W | 11.56 mm | 6.98 mm | 2.41 mm | -65.0 °C | 275.0 °C | AEC-Q200 |
