T0053422399N

- Digital control electronics and high-quality and heat transfer technology in the soldering tool for precise temperature control at the solder tip
- Fast measurement data acquisition for maximum temperature accuracy and optimum temperature behaviour under load
- Operation via sensor keys
- Multilingual menu navigation
- Graphic LC display with blue LED backlight
- supports tools up to 200W or two 120W pistons at the same time
- does not need to be calibrated
- 2 connections for soldering tools with integrated parameter storage (e.g. for fixed temperature)
- Automatic tool detection and activation of soldering-iron-specific control parameters
- Digital temperature control
- Antistatic device design in accordance with ESD safety
- Different potential compensation options on the device (standard configuration: hard grounded)
- Setting piston-specific parameters such as: standby temperature, standby time, AUTO OFF time, offset, control response, process window, robot output
- Setting for station-specific parameters such as: language, temperature version °C/°F, password, key tones on/off, LCD contrast, LCD background brightness, screen saver
- 2 connectors for peripherals
- Digital and optically decoupled robot connection
- USB port for memory stick

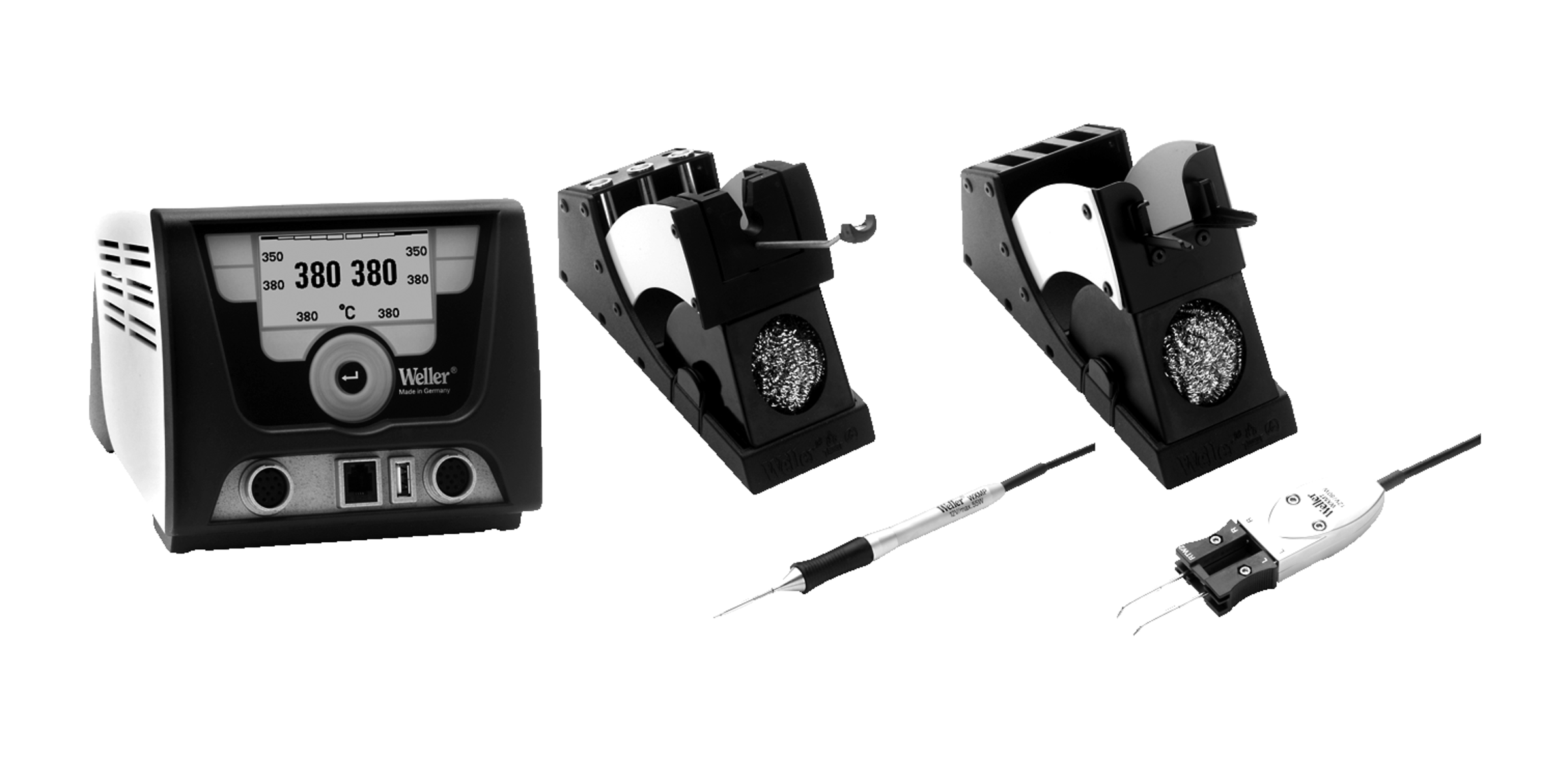

- With soldering iron WXP120 (120W, 24V), micro-tweezer WXMT (2x 40W, 12V) and two safety rests
- very fine, slender tweezer
- For soldering and desoldering of very small SMD components
