T0053421399N

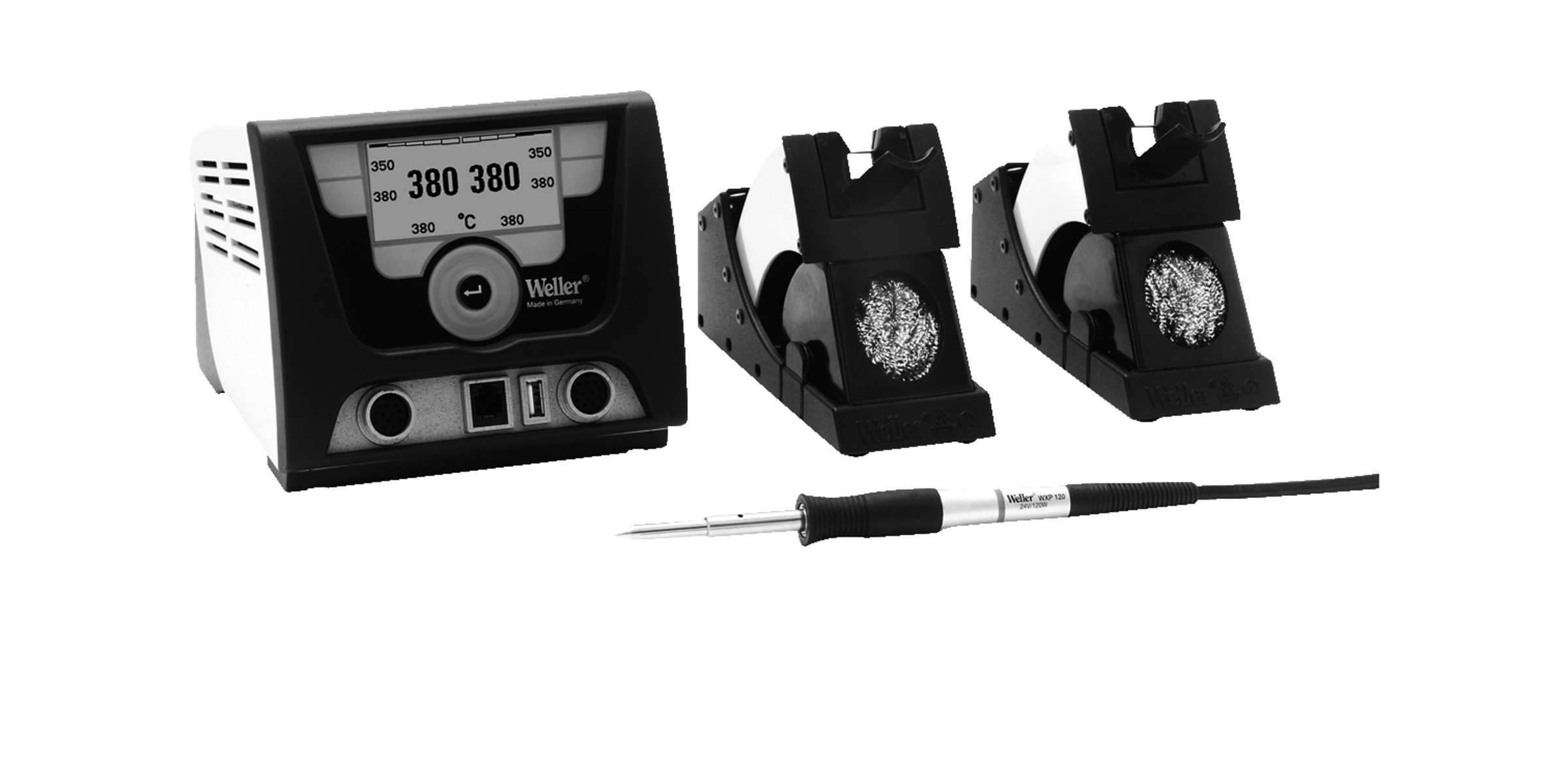

Weller Solder Station WX 200W 100°C 550°C

Manufacturer Part No.

T0053421399N

Schukat Part No.

WX2020

Manufacturer

Weller

Customer Part No.

Customer Project No.

0 Pcs. in stock

Back Order
1 Pcs.

Planned delivery time

Ø 4 Weeks

Life Cycle Status

Active

Available on order

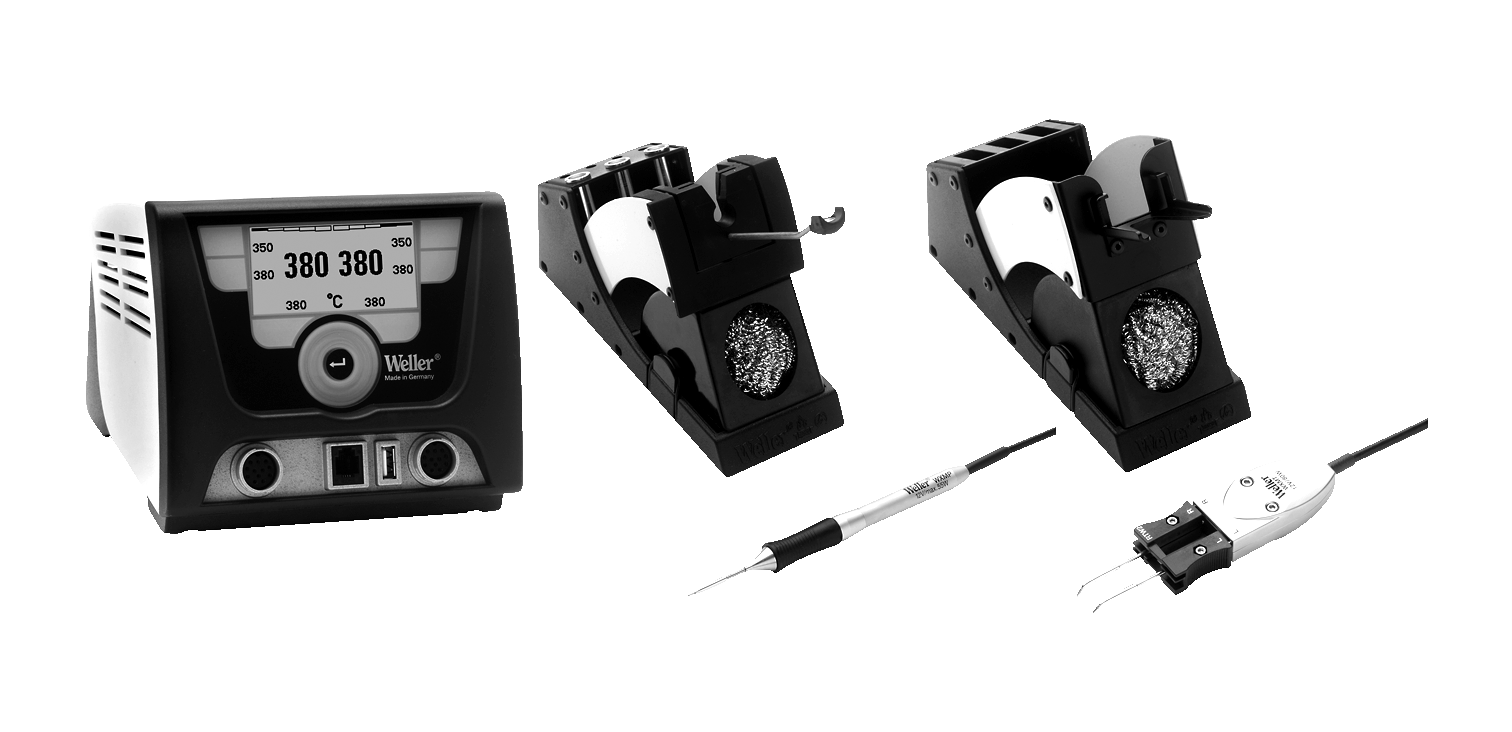

Replacement / Follow-up View entire series

Data Sheet

Open PDF

ECAD Model

Prices

Manufacturer bundle 1 Pcs.

Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)

All prices net plus VAT. We do not deliver to private customers.

 Fact Sheet Displaytrue
Performance200 W
Power supply230 V
Operating Temperature Min.100 °C
Operating Temperature Max.550 °C
Weight3,450 g
RoHS-Conform

Specifications

Open all

General

Manufacturer

Weller

Type

Solder Station

Series

Product group

T1126 Weller Digital Soldering Stations Series WX

Dimension: Length

174 mm

Dimension: Width

154 mm

Dimension: Height

135 mm

Display

Weight

3,450 g

Features

- Digital control electronics and high-quality and heat transfer technology in the soldering tool for precise temperature control at the solder tip
- Fast measurement data acquisition for maximum temperature accuracy and optimum temperature behaviour under load
- Operation via sensor keys
- Multilingual menu navigation
- Graphic LC display with blue LED backlight
- supports tools up to 200W or two 120W pistons at the same time
- does not need to be calibrated
- 2 connections for soldering tools with integrated parameter storage (e.g. for fixed temperature)
- Automatic tool detection and activation of soldering-iron-specific control parameters
- Digital temperature control
- Antistatic device design in accordance with ESD safety
- Different potential compensation options on the device (standard configuration: hard grounded)
- Setting piston-specific parameters such as: standby temperature, standby time, AUTO OFF time, offset, control response, process window, robot output
- Setting for station-specific parameters such as: language, temperature version °C/°F, password, key tones on/off, LCD contrast, LCD background brightness, screen saver
- 2 connectors for peripherals
- Digital and optically decoupled robot connection
- USB port for memory stick

- With two WXP120 (120W, 24V) soldering irons and two safety rests
- For soldering of small to large component with high heat demand
