T0053420399N

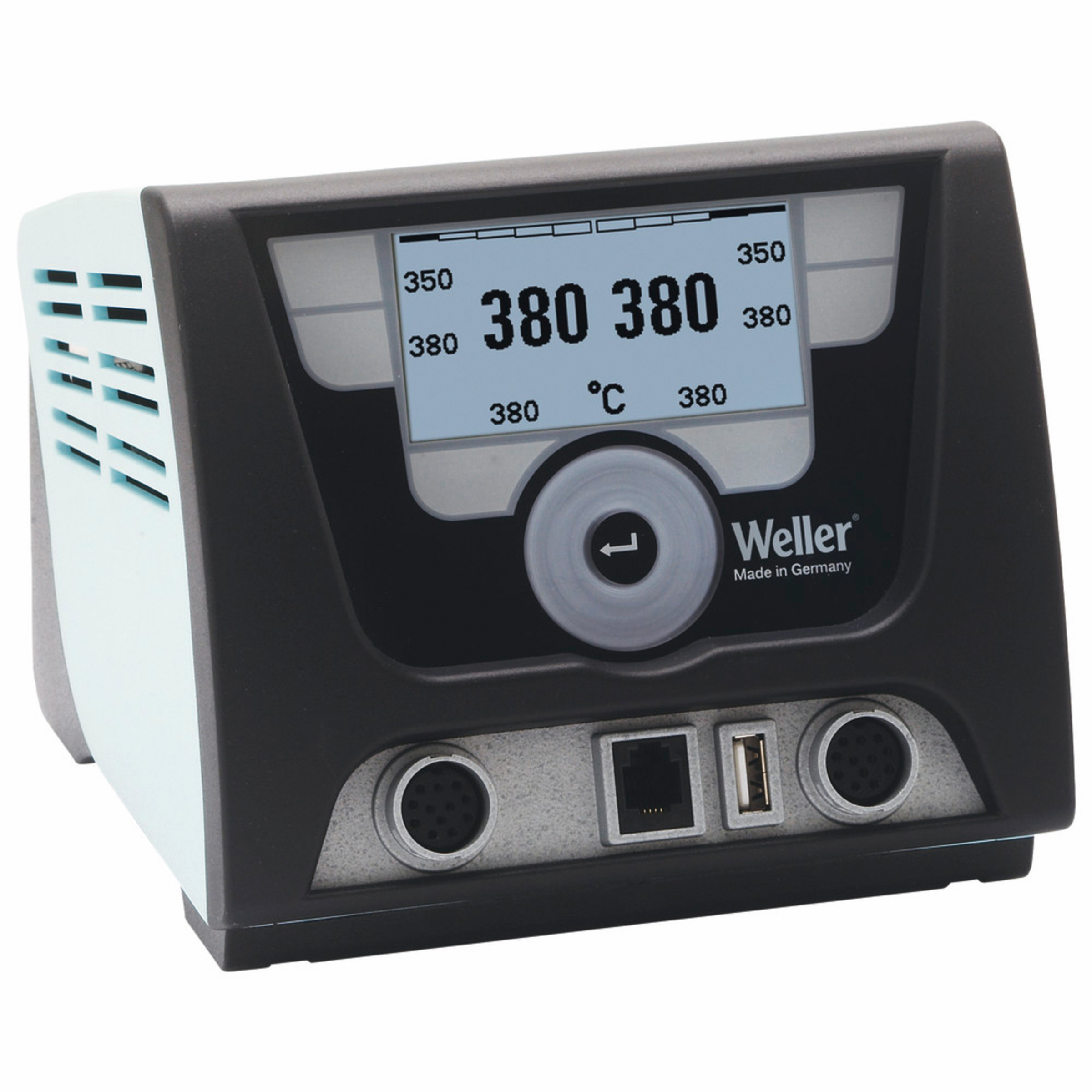

Weller Power Unit WX 200W 100°C 550°C

WX2WX2
Manufacturer Part No.
T0053420399N
Schukat Part No.
WX2
Manufacturer
Weller
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Display
true
Performance
200 W
Power supply
230 V
Operating Temperature Min.
100 °C
Operating Temperature Max.
550 °C
Weight
3,450 g
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Weller
Product Family
  • WX Line Soldering Stations
Type
  • Power Unit
Series
  • WX
Product group
  • T1126
Dimension: Length
  • 174 mm
Dimension: Width
  • 154 mm
Dimension: Height
  • 135 mm
Display
Weight
  • 3,450 g
Features

  • - digital control electronics and high-quality sensor and heat transfer technology in the soldering tool, ensuring precise temperature control at the soldering tip
    - Rapid data acquisition for maximum temperature accuracy and optimum temperature behaviour under load
    - Operation via touch-sensitive buttons
    - Multilingual menu navigation
    - Graphic LCD display with blue LED backlighting
    - Supports tools up to 200W or two 120W soldering irons simultaneously
    - No calibration required
    - 2 connections for soldering tools with integrated parameter storage (e.g. fixed temperature)
    - Automatic tool recognition and activation of soldering tip-specific control parameters
    - Digital temperature control
    - Anti-static design of the unit in accordance with ESD safety standards
    - Various equipotential bonding options on the unit (standard configuration: hard-wired to earth)
    - Setting of nozzle-specific parameters such as: standby temperature, standby time, AUTO-OFF time, offset, control behaviour, process window, robot output
    - Setting of station-specific parameters such as: language, temperature display °C/°F, password, key tones on/off, LCD contrast, LCD base brightness, screen saver
    - 2 ports for peripheral devices
    - Digital and optically decoupled robot connection
    - USB interface for a memory stick

Operating conditions

Operating Temperature Min.
  • 100 °C
Operating Temperature Max.
  • 550 °C

Electrical features

Power supply
  • 230 V
Performance
  • 200 W
Temperature stability
  • 2 °C

Safety/Certifications

ESD
